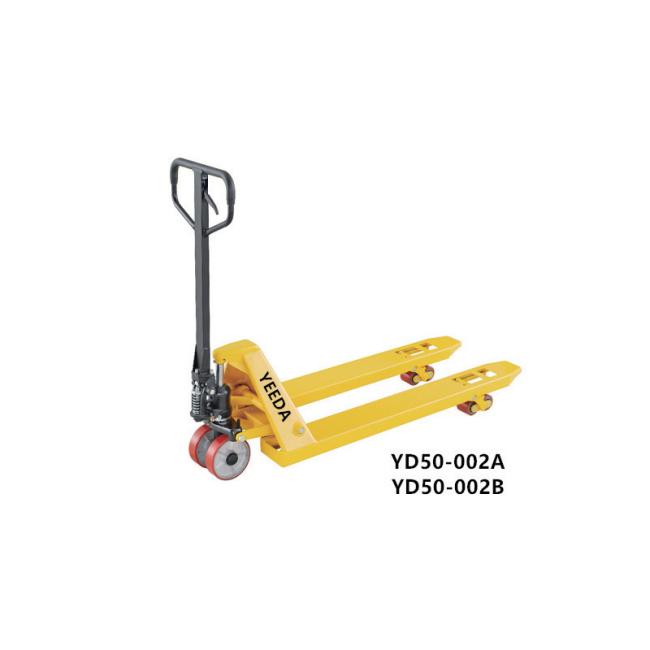

YD50 Series Manual Forklifts: 2500-3000kg, 75-198mm Ht, for Warehouses/Shops/Workshops
Designed for efficient material handling in warehouses, shops, and workshops with lifting heights of 75-198mm.
| Parameter Category | YD50-001A | YD50-001B | YD50-002A | YD50-002B |
|---|---|---|---|---|
| Model | 2500kg capacity manual forklift for light-to-medium loads | 3000kg capacity heavy-duty version | 2500kg capacity optimized for compact spaces | 3000kg capacity heavy-duty compact option |
| Capacity | 2500 kg | 3000 kg | 2500 kg | 3000 kg |
| Fork Height Parameters | Min: 75/85 mm Max: 188/198 mm |
Min: 75/85 mm Max: 188/198 mm |
Min: 75 mm Max: 188 mm |
Min: 75 mm Max: 188 mm |
| Wheel & Roller Specifications | Steering Wheel: 180*50 mm Load Roller: 74*70/80*70 mm |
Steering Wheel: 180*50 mm Load Roller: 74*70/80*70 mm |
Steering Wheel: 180*50 mm Load Roller: 74*70 mm |
Steering Wheel: 180*50 mm Load Roller: 74*70 mm |
| Fork Dimensions | Fork Exs: 160 mm Width: 550/685 mm Length: 1150/1220 mm |
Fork Exs: 160 mm Width: 550/685 mm Length: 1150/1220 mm |
Fork Exs: 160 mm Width: 550*685 mm Length: 1150/1220 mm |
Fork Exs: 160 mm Width: 550*685 mm Length: 1150/1220 mm |
| Weight | 70 kg | 75 kg | 65 kg | 69 kg |
| Key Features | Modular valve design 45 carbon steel forged rocker arm Anti-rollover body (max. 130° tilt) |
All features of YD50-001A + reinforced load-bearing structure | All features of YD50-001A + compact frame | All features of YD50-002A + reinforced fork and roller |
| Test Item | Test Condition | Test Result (All Models) |
|---|---|---|
| Load-Bearing Stability | Load rated capacity and lift to max height for 1 hour | No fork deformation; no oil leakage; anti-rollover body remains stable |
| Steering Flexibility | Move loaded forklift across concrete floor for 50 meters | Smooth steering wheel rotation; no deviation during movement |
| Durability | Continuous 100 lifting/lowering cycles | No wear on heat-treated shafts; normal piston operation; no structural deformation |
| Overload Resistance | Apply 110% of rated capacity for 30 minutes | Overload protection activates; no permanent deformation |
- 45 Carbon Steel Forged Rocker Arm: Withstands 110% of rated capacity without deformation, extending service life to 8+ years
- Heat-Treated Shafts: Maintain smooth movement after 10,000+ operation cycles
- Imported Seal Chrome-Plated Piston: Reduces friction and prevents oil leakage, doubling service life
- Anti-Rollover Body: Prevents rollover with maximum 130° tilt capability
- Pump Body Overload Protection: Automatically activates when load exceeds 110% capacity
- Modular Valve Design: Reduces maintenance downtime by 60%
- Dual-Control Lifting/Lowering: Operate via handle or foot control
- Compact Sizing: YD50-002A/002B models fit narrow warehouse aisles (≤1.2m)
Ideal for logistics warehouses handling heavy pallets (up to 2800kg) in 1.5m-wide aisles. Features reinforced structure and 198mm max fork height for efficient pallet handling with anti-rollover safety.
Perfect for narrow retail aisles (1.1m wide) with 2500kg capacity and compact frame. Dual-control design enables precise shelf alignment and reduces operator fatigue.
Handles 2400kg machinery parts on uneven concrete floors. Anti-rollover design adapts to challenging workshop environments with heat-treated components for durability.
A1: Check for oil leaks, ensure proper hydraulic oil level (ISO VG 32 recommended), and clean the modular valve with diesel to remove debris.
A2: No. Exceeding rated capacity risks permanent damage and safety hazards. Use YD50-001B/002B (3000kg capacity) for heavier loads.
A3: Lubricate bearings, clean wheel grooves, and check wheel alignment. Monthly lubrication maintains smooth operation.
A4: Perform daily checks, weekly lubrication, monthly cleaning, and quarterly inspections to extend service life to 8+ years.
