• Lifting Capacity: 3,000 lb (1,500 kgs) at the 1st stage; 2,200 lb (1,000 kgs) at the 2nd stage.
• Height: Minimum height is 37" (940 mm); first stage height is 56" (1422 mm); full raise height is 74.75" (1898 mm).
• Other Parameters: G.W. is 198 lb (90 kgs); N.W. is 180 lb (82 kgs); packing size is 15"*22.4"*34.6" (38*56*88 cm).
• Features a 2.16" (Φ55) chromed piston, 4*3.5" swivel ball bearing casters.

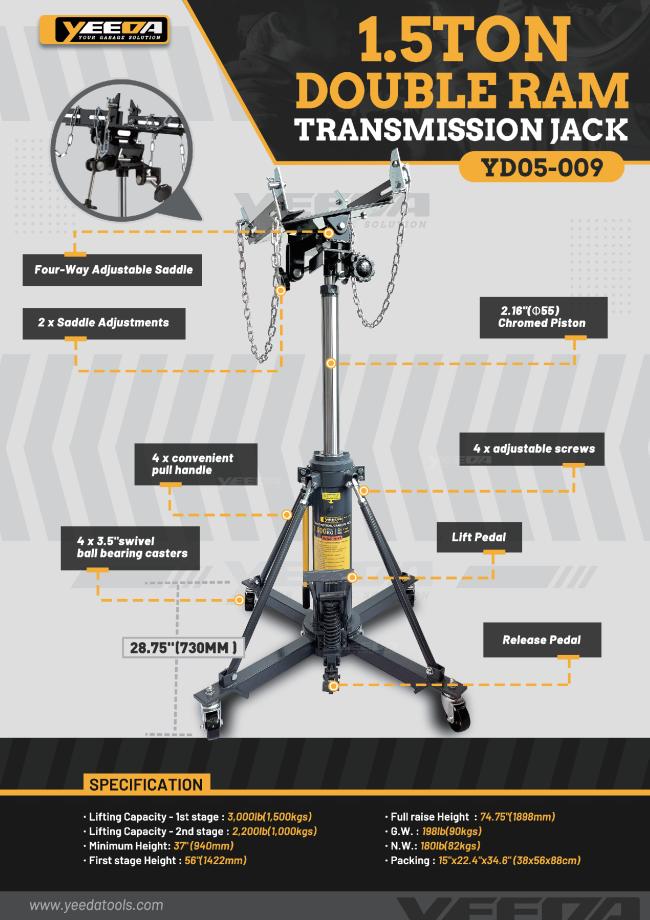

The 1.5 Ton Double Ram Transmission Jack (YD05 - 009) is a robust tool for transmission handling. Key features include:

• Four-way adjustable saddle with 2*saddle adjustments for precise positioning
• 2.16" chromed piston ensures smooth and stable lifting
• 4 convenient pull handles for easy movement
• 4*3.5" swivel ball bearing casters for flexible maneuvering
• Simple operation via lift and release pedals
• Double ram design provides reliable lifting power for various transmission weights

• Automotive Repair Shops: Ideal for removing and installing transmissions in cars, trucks, and other vehicles
• Garages: Simplifies transmission maintenance and replacement tasks
• Vehicle Maintenance Facilities: Essential for regular transmission checks and repairs
