2-Ton Portable Hydraulic Shop Crane | Auto Repair, 4-Level Lift, Easy Fold
Price:
$165
MOQ:
50pcs
Delivery Time:
30-45DAYS
Brand:
YEEDA
Product Description

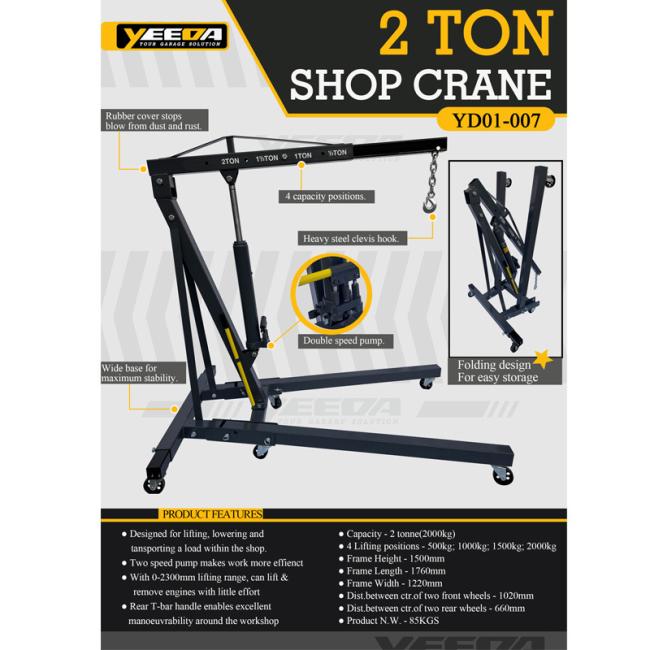

YEE DA 2-Ton Portable Hydraulic Shop Crane
Flexible Lifting with Easy Storage for Auto Repair
Product Specifications
| Max. Capacity | 2 tons (4 adjustable levels: 500kg / 1000kg / 1500kg / 2000kg) |
| Lifting Range | 0-2300mm |
| Frame Size | 1500mm(H) × 1760mm(L) × 1220mm(W) |
| Wheelbase | Front 1020mm, Rear 660mm |
| Net Weight | 85kg |
| Power System | Two-speed hydraulic pump |
| Hook Type | Heavy-duty steel hook with dust/rust protection rubber cap |
Product Features

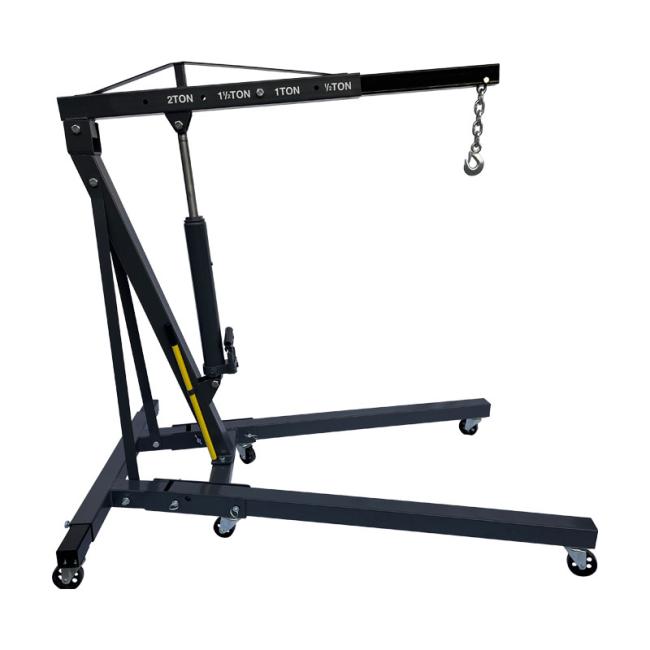

Designed for workshop and garage environments, this 2-ton crane features a two-speed hydraulic pump for fast lifting and precise positioning. The arm clearly displays four load capacity markings. The wide base and four swivel casters (two with brakes) ensure stable and flexible operation.
- Two-speed hydraulic system: Combines efficiency with control for optimal performance
- Dust & rust protected hook: Extends service life in demanding workshop conditions
- Rear T-handle: Easy steering and movement for precise positioning

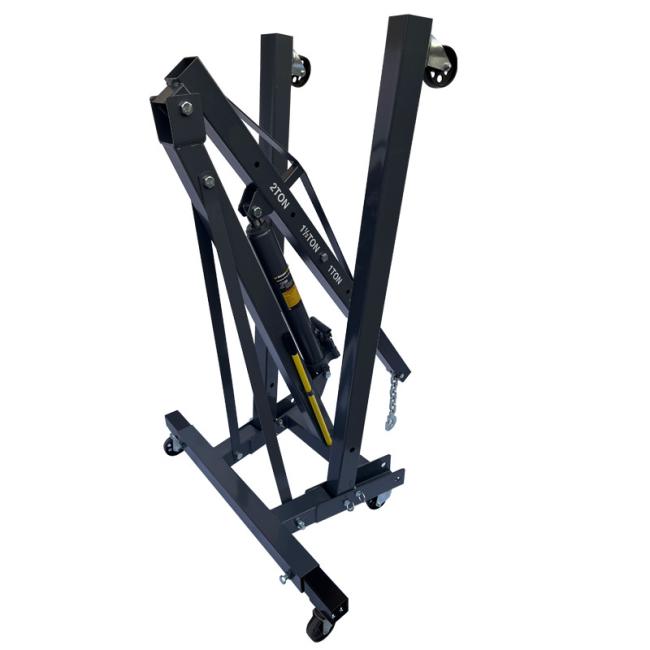

- Quick folding design: Folded height ~850mm, saves valuable storage space
- Wide base stability: Enhanced safety during lifting operations
Applications
- Auto repair: Engine and transmission removal/installation
- Equipment assembly: Positioning and assembling heavy machinery
- Workshop handling: Short-distance lifting of molds and materials
- Garage DIY: Vehicle modification and large tool handling
Frequently Asked Questions
Can the crane be overloaded?
Overloading is strictly prohibited. Always follow the marked load levels (½ TON, 1 TON, 1½ TON, 2 TON) on the arm. Overloading may cause structural damage or safety hazards.
Does the hydraulic pump require maintenance?
It is recommended to check the hydraulic oil condition every 6 months and keep the pump clean. When not in use for extended periods, lower the boom completely.
Can it be used on slopes or uneven ground?
Use only on flat, solid surfaces. If the ground is slightly uneven, use leveling plates to prevent movement and ensure stability.
What are the dimensions when folded?
Folded height is approximately 850mm, length ~1200mm. It can be stored upright against a wall to save valuable workshop space.
Storage Note: When folded, this crane occupies minimal space with dimensions of approximately 850mm height × 1200mm length, making it ideal for workshops with limited storage area.
