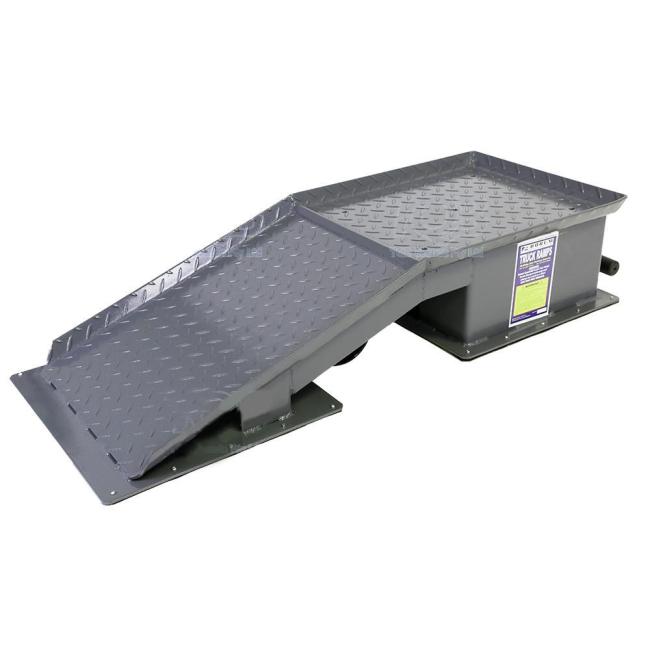

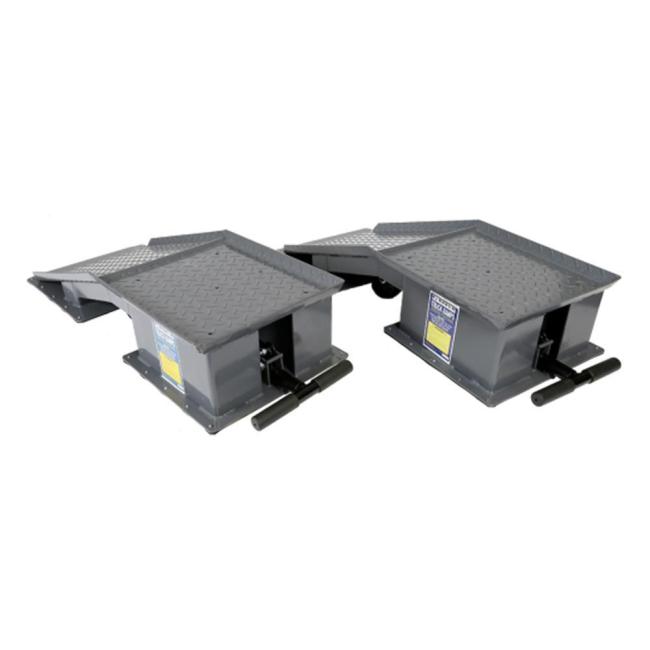

20-Tonne Load Capacity Steel Portable Truck/Forklift Maintainance and Workshop Ramps x 2 from

The Portable Truck Ramp Set is designed for maintenance and servicing work on trucks, buses and forklifts allowing easy and safe access to the undercarriage of vehicles. Easy and safe to use with a 700mm incline and 500mm of horizontal deck with safety flange to prevent fork truck from rolling off the deck. These robust ramps weigh 72kg each and are fitted with a unique wheel mechanism which raises and lowers for easy manoeuvrability. These 463mm wide steel truck ramps feature non-skid bases and non-slip traction plates to keep the ramps and their load in place. Handle retracts for out of the way safety and storage. Sold in pairs.

Features and Benefits

• Extremely portable ramps that adhere to the floor like glue.
• Pull the handle out, rotate it up to lock the wheels down. They are very easy to move around the workshop.
• Large wheel designs for extra durability
• Long retractable T-handle for easy positioning
• "NON-SKID BASE" - Four ply pads of rubber grips are bolted and glued to the 6mm steel floor plates and they will not skid ahead of the wheels.
• Replaces need for a pit or hoist, and at a fraction of the cost and floor space.
• Also very popular in Motor Home, Bus and Forklift maintenance workshops.

Specifications

• Model No.: YD10-007A                                                         Model No.: YD10-007B
• Safe Working Load: 20,000kg (per pair)                               Safe Working Load: 20,000kg (per pair)
• Frame Height: 235mm                                                           Frame Height: 235mm
• Frame Width: 463mm                                                            Frame Width: 345mm
• Frame Length: 1158mm                                                         Frame Length: 1158mm
• N.W. :73kgs/pcs                                                                     N.W.: 58 kgs
• G.W. :76kgs/pcs                                                                     G.W.: 60 kgs
• Sold in pairs                                                                            Sold in pairs

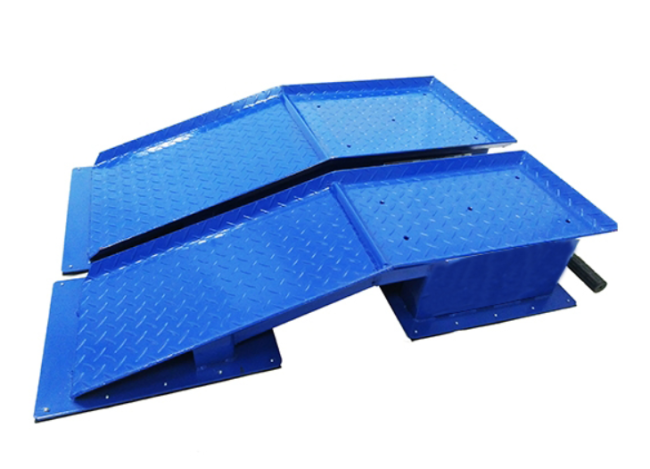

Note: YD10-007A and YD10-007B  are different of the Frame Width .
