2 Stage High Lift 2T To 30T Double Ram Hydraulic Bottle Jack
Price:
Negotiable
MOQ:
50PCS
Delivery Time:
10 days after received deposit
Brand:
YEEDA
Product Description

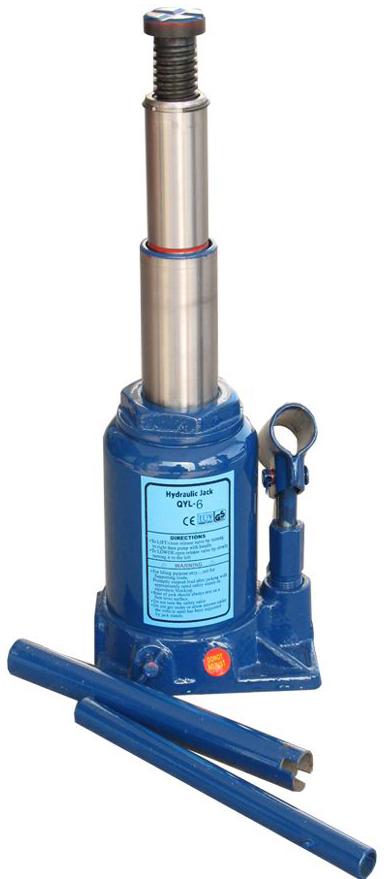

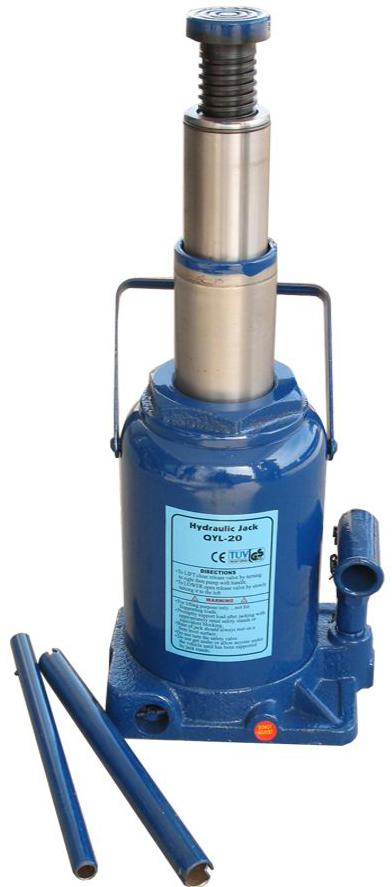

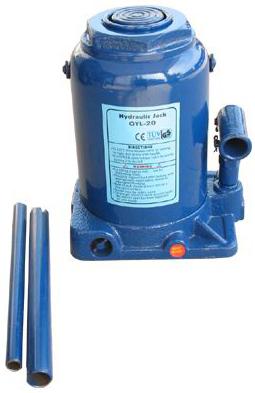

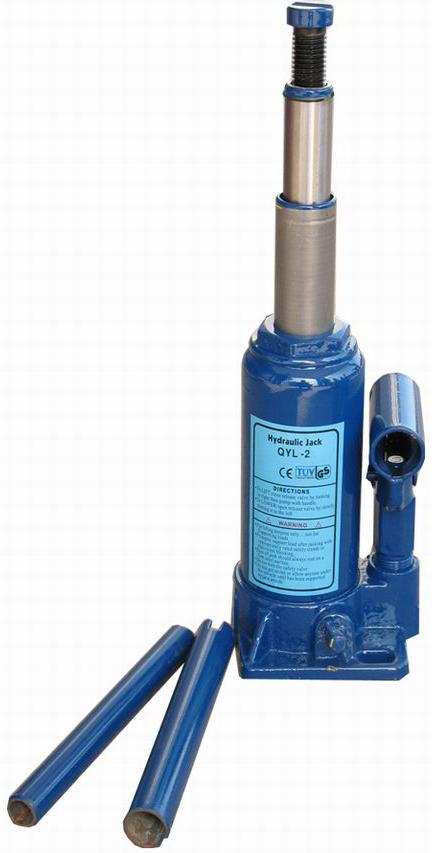

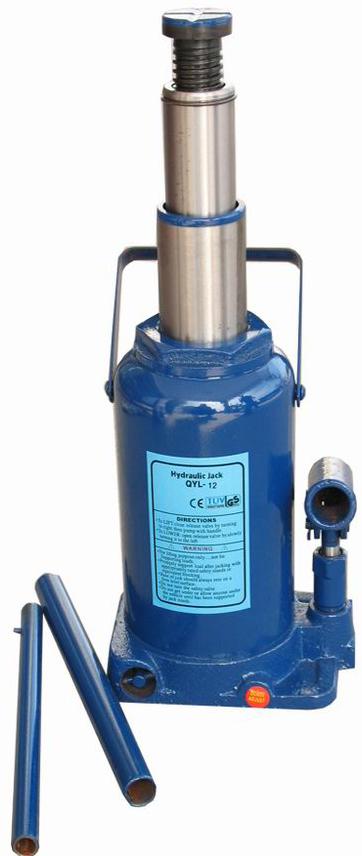

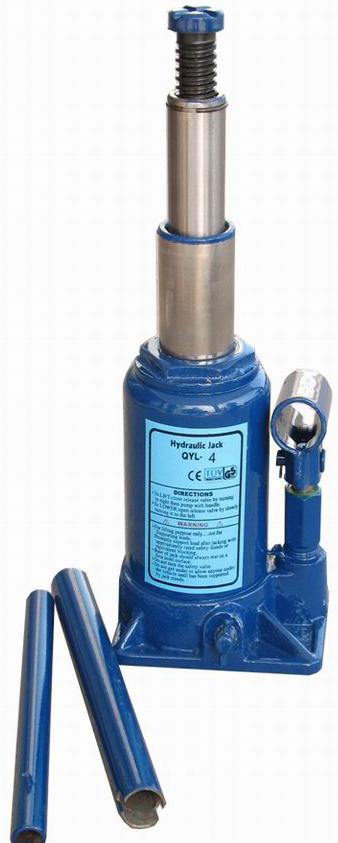

Manual Hydraulic High Lift Double Ram Bottle Jack use in mechanical work
This Hydraulic High Lift Double Ram Bottle Jack is designed for lifting heavy-duty machinery, industrial construction equipment and other objects that need a low profile start and an extended reach.
Features:
- 2T to 30T double ram Bottle Jack ,Extension screw allows low pickup height adjustment and maximum lift height
- Dual-stage hydraulic cylinder lifts large loads on a smaller footprint
- Constructed of high-grade steel and built to exacting standards for quality and durability
- Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
- Paint is oil-, grease- and dirt-resistant for easy cleanup
- High-quality, large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
Technical Specification:
| Model | Capacity | Min.H (mm) | Lifting H (mm) | Adjust.H (mm) | N.W. (kg) |
| YD18-001 | 2 | 165 | 98+92 | 55 | 2.8 |
| YD18-002 | 4 | 150 | 80+80 | 35 | 4 |
| YD18-003 | 6 | 154 | 80+80 | 40 | 5 |
| YD18-004 | 8 | 156 | 80+80 | 40 | 6 |
| YD18-005 | 10 | 225 | 140+145 | 50 | 8.5 |
| YD18-006 | 12 | 230 | 140+145 | 50 | 10 |
| YD18-007 | 16 | 232 | 140+145 | 50 | 12 |
| YD18-008 | 20 | 235 | 140+145 | 50 | 15.5 |
| YD18-009 | 30 | 250 | 140+140 | / | 22 |
