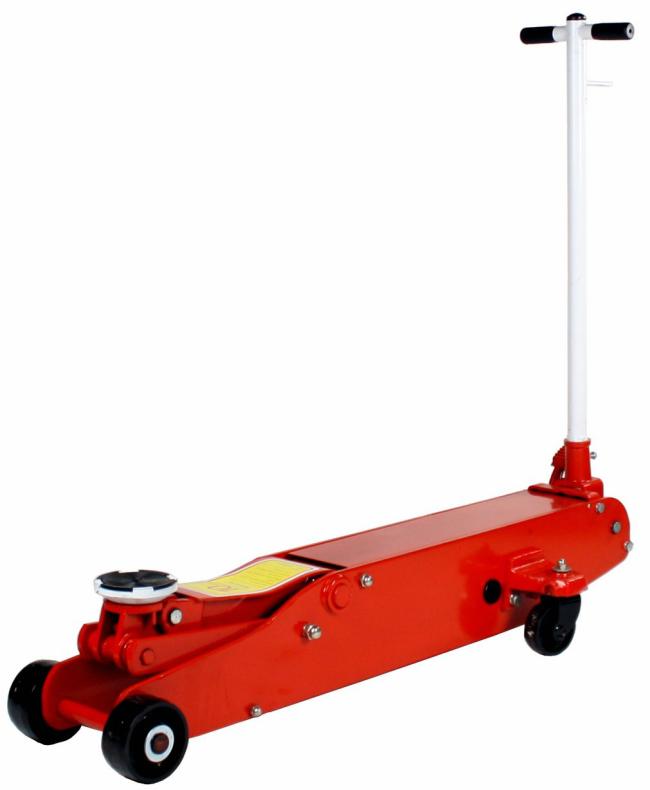

Heavy Duty Swivel Castor 2Ton To 20Ton Hydraulic Lifting Jack
Price:
Negotiable
MOQ:
10PCS
Delivery Time:
30 days after received deposit
Brand:
YEEDA
Product Description
2Ton,3Ton,5Ton,10Ton,20Ton Capacity Heavy-duty Long chassis Trolley Jack
Heavy-duty chassis fitted with a 'quick-lift' foot pedal to rapidly raise the saddle to the vehicle jacking point. Large saddle aids positioning. Locking facility allows the handle to be locked in three positions. T-shaped handle with an incorporated release valve prevents accidental lowering. Rear swivelling castors with toe plate increases manoeuvrability. Safety valve prevents the jack from overloading. Supplied with a one piece handle.
Features:
- Heavy duty with 'quick lift' foot pad
- Fitted with rear swivelling castor wheels and large saddle to aid positioning under the vehicle .
- The jack incorporates safety overload and passby valves to prevent overloading the jack.
- One piece handle is included.
Technical Specification:
| Model | Capacity | Min.Height | Max.Height | N.W | Package Size (cm) |
| YD20-001 | 4,400lb(2,000kg) | 5.5"(140mm) | 31.5"(800mm) | 132lb(60kg) | 126 x 44 x 21 |
| YD20-002 | 6,600lb(3,000kg) | 5.5"(140mm) | 26"(660mm) | 132lb(60kg) | 120 x 44 x 21 |
| YD20-003 | 6,600lb(3,000kg) | 5.5"(140mm) | 24.4"(620mm) | 154lb(70kg) | 154 x 42 x 26 |
| YD20-004 | 11,000lb(5,000kg) | 4.3"(110mm) | 22"(560mm) | 198lb(90kg) | 156 x 43 x 28.5 |
| YD20-005 | 22,000lb(10,000kg) | 6.7"(170mm) | 22.4"(570mm) | 286lb(130kg) | 169 x 50 x 33.5 |
