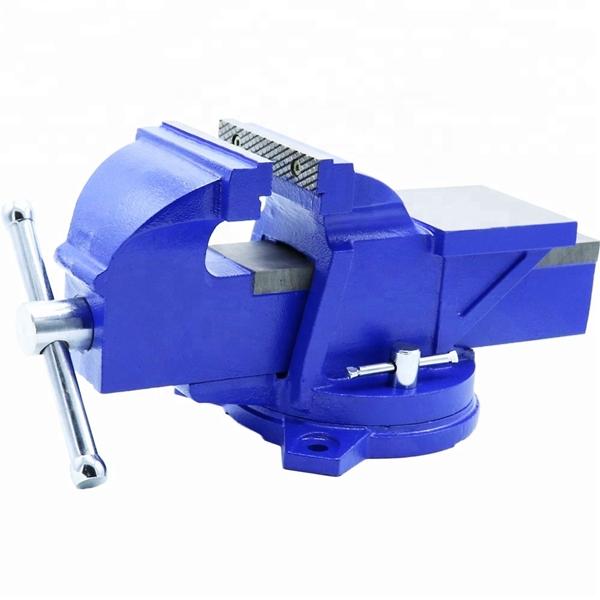

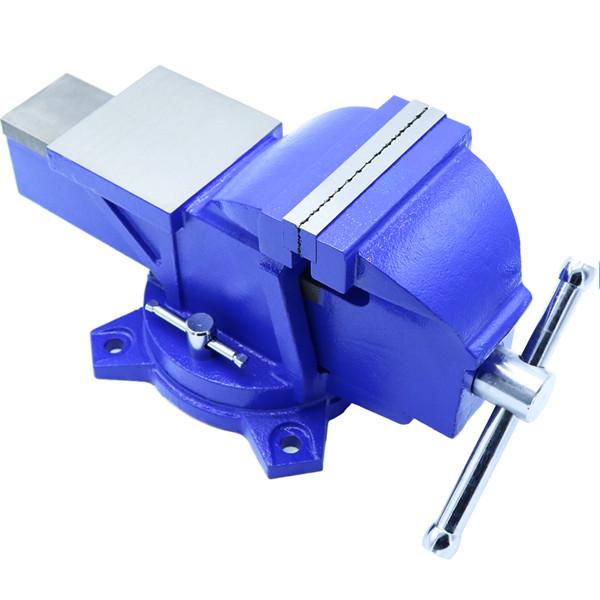

125mm Swivel Base Bench Vise
Price:
Negotiable
MOQ:
50 pcs
Delivery Time:
30-45DAYS
Brand:
YEEDA
Product Description
Types Of Bench Vice With Swivel Base Heavy Duty Universal Vertex Rotating Table Bench Vice Swivel Machine Vice
A vice is part of the basic equipment of an perfectly equipped workbench. This light duty vice is ideal for easy and light use due to its hardness and stable body.
With this light duty vice everything is held firmly and in the correct position. This is ensured by the front clamping jaw, the fixed clamping jaw and the spindle crank. The workpiece is clamped between the two clamping jaws. The fixed clamping jaw is mounted on the base body and cannot be changed in position. The front jaw sits on a guide rail and can be moved back and forth.
The vice has a clamping jaw width of 125 mm and has a trapezoidal thread. The spindle can be reliably opened and closed with the thread and the spindle nut. This procedure allows the clamping width of the clamping jaws to be individually adapted to the size of the workpieces.
The design of the vice allows it to be attached to the workbench so that the rear jaw hangs over the workbench. This is important if long objects such as pipes are to be clamped vertically. In addition to the clamping function, this vice has a 125 mm (5") anvil. Additional work such as hammering or graining can be done here.
Feature:
With this light duty vice everything is held firmly and in the correct position. This is ensured by the front clamping jaw, the fixed clamping jaw and the spindle crank. The workpiece is clamped between the two clamping jaws. The fixed clamping jaw is mounted on the base body and cannot be changed in position. The front jaw sits on a guide rail and can be moved back and forth.
The vice has a clamping jaw width of 125 mm and has a trapezoidal thread. The spindle can be reliably opened and closed with the thread and the spindle nut. This procedure allows the clamping width of the clamping jaws to be individually adapted to the size of the workpieces.
The design of the vice allows it to be attached to the workbench so that the rear jaw hangs over the workbench. This is important if long objects such as pipes are to be clamped vertically. In addition to the clamping function, this vice has a 125 mm (5") anvil. Additional work such as hammering or graining can be done here.
Feature:
- solid cast iron
- 360° turntable
- replaceable clamping jaws
- perfect for mounting on a work bench.
- with anvil
- Colour: blue
Specifications
| Model No. | Size | A (mm) | B (mm) | C (mm) | D (mm) | QTY./CTN | G.W./N.W.(KGS) | PACKAGE /CTN (CM) |
| YD75-001 | 4”(100mm) | 100 | 75 | 54 | 68 x 70 | 4 | 30/28 | 56 x 29 x 16 |
| YD75-002 | 5"(125mm) | 125 | 100 | 65 | 90 x 90 | 2 | 28/26 | 36 x 35 x 20 |
| YD75-003 | 6"(150mm) | 150 | 125 | 77 | 110 x 110 | 1 | 18/17 | 46 x 20 x 20 |
| YD75-004 | 8"(200mm) | 200 | 175 | 95 | 150 x 140 | 1 | 36/35 | 54 x 22 x 28 |
