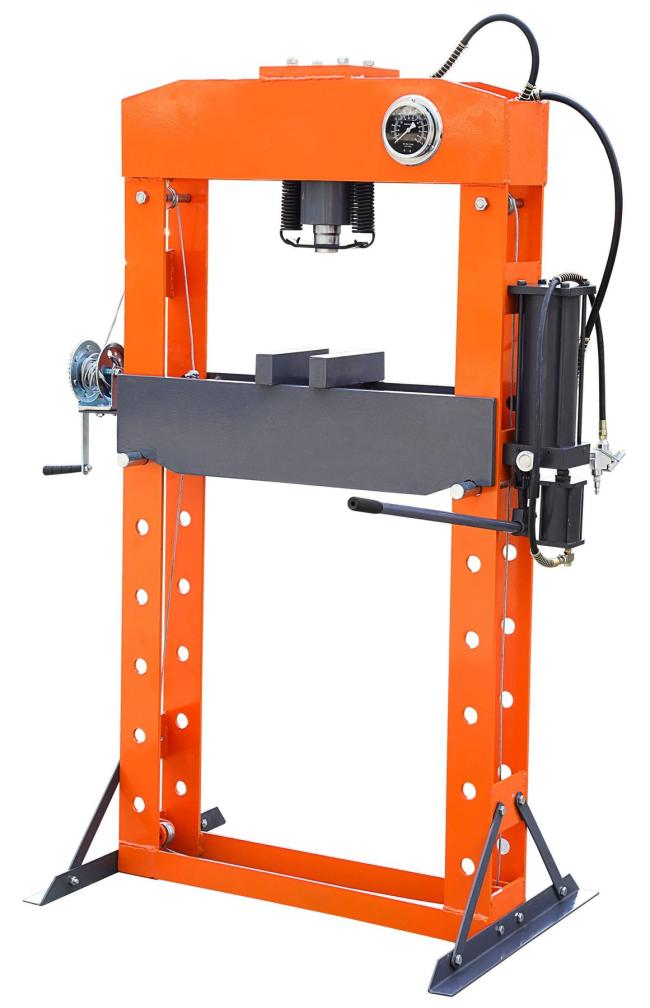

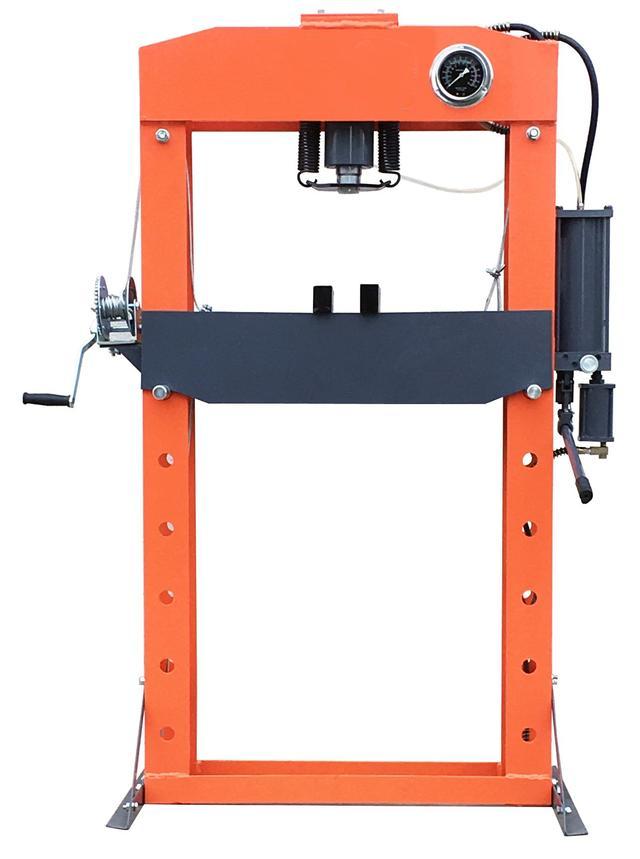

125 Psi Air Pressure 50 Ton Hydraulic Forging Press With Gauge

Hydraulic 50 Tonne Shop Press With Pressure Gauge​

The 50-ton air/hydraulic shop press is commonly found in fabrication, welding, and machine shops. This air operated shop press features a 7.5” stroke, working range of up to 40”, and a working width of 27.5”. The press has a fully-welded steel plate frame and uses industrial-grade hydraulic components to ensure long-lasting performance. A pully system makes lowering and raising the table of this shop an easy task, saving you from using your back when adjusting the table position. This press will easily handle your needs, whether you are removing gears, bushings, bearings, or straightening and stamping.

Specifications:

• Continuous force capacity: 50 tons
• Vertical working opening: up to 40”
• Working width: 27.5”
• Ram stroke: 7.5”
• Air pressure: 110~125 psi
• Operation mode: air and hand
• Air inlet: ¼” NPT
• Adjustable bed height
• Comes with 2 pressure plates

Packaging:


• Dimension: 37" x 10" x 75"
• Shipping weight: 485 lbs
