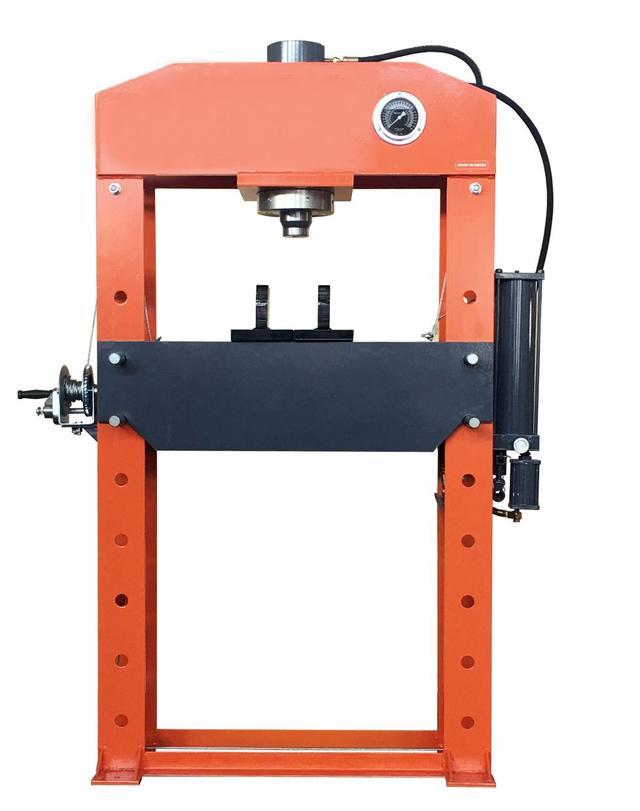

Hydraulic 75 Tonne Shop Press With Pressure Gauge​

The 75-Ton Air/Hydraulic Shop Press is designed for bearing, bushing, straightening, bending as well as production metal and press work. Our press is made with a thick, fully-welded steel plate frame and uses industrial-grade hydraulic components to deliver the pressing power you need. It features a winch with a non-slip safety clutch for easy raising and lowering of the press bed.


Specifications:

• Continuous force capacity: 75 tons
• Vertical working opening: up to 42-1/2"
• Working width: 30’’
• Ram stroke: 10"
• Bed opening: 11-5/16"
• Cylinder bore: 5"
• Air pressure: 110-125 psi
• Overall dimensions: 39-3/4’’ x 39-3/4’’ x 75’’ (L x W x H)

Packaging:


• Dimension: 41-3/4" x 19" x 79-1/2"
• Shipping weight: 860 lbs
