Product Overview

Hydraulic fender crane is a specialized marine lifting system designed for safe deployment, retrieval, and storage of pneumatic rubber fenders during ship-to-ship operations.

The system adopts an electro-hydraulic drive, providing high torque, smooth motion control, and reliable performance under dynamic offshore conditions.

It is widely applied on FSRU, FLNG, FSO, oil tankers, and offshore platforms where controlled fender handling is critical.

Quick Specifications

• Safe Working Load: 2.5–16 Ton → Determines lifting capacity for fender handling
• Outreach: 1.5–5 m → Defines working range from ship side
• Span: 3–9 m → Determines coverage area on deck
• Hoisting Speed: 5–12 m/min → Affects lifting efficiency and control
• Lowering Height: Up to 50 m → Defines vertical handling capability
• Power Range: 11–90 kW → Determined by SWL, outreach and operating conditions
• Drive Type: Electro-Hydraulic → Ensures high torque and stable performance
• Control System: Local Control Box / Remote Control → Enables safe operation
• Fender Size: Ø1500×3000 to Ø4500×9000 mm → Defines application compatibility
• Working Temperature: -40°C to +45°C → Suitable for harsh marine environments

Main Technical Parameters

Engineering Note

Hydraulic power is calculated based on SWL, outreach, hoisting speed, and actual operating conditions. Final configuration will be confirmed during technical evaluation.

Selection Guide

Step 1 – Select SWL → Determines lifting capacity

Step 2 – Confirm Fender Size → Determines crane configuration

Step 3 – Confirm Outreach → Defines working range

Step 4 – Confirm Hoisting Height → Determines lifting reach

Step 5 – Select Control Type → Local or remote operation

Step 6 – Confirm Installation Layout → Based on deck space and structure

Structure & Components

Crane arms | Hydraulic cylinders | Hydraulic power unit (HPU) | Winch system | Control console | Slewing base | Safety locking device

Custom Attributes

• SWL: 2.5–16 Ton → Defines lifting capacity
• Outreach: 1.5–5 m → Defines working range
• Span: 3–9 m → Defines deck coverage
• Hoisting Speed: 5–12 m/min → Defines efficiency
• Power Range: 11–90 kW → Depends on configuration
• Drive Type: Electro-Hydraulic → Ensures stable performance
• Control Type: Local / Remote → Provides operational flexibility
• Fender Size: Ø1500–Ø4500 mm → Defines compatibility
• Certification: CCS / NK / BV / ABS / DNV / LR / KR / RINA / IRS / RS / CRS → Meets marine standards

Custom Configuration & Inquiry Guide

Please provide fender size, SWL, outreach, hoisting height, power supply and control requirement.

We will provide model selection, GA drawing, and quotation.

How It Works

The crane deploys and retrieves fenders through a hydraulic winch and cylinder system. Slewing, lifting, and lowering are controlled by hydraulic valves ensuring smooth and safe operation.

Applications

Ship-to-ship transfer | FSRU / FLNG / FSO | Oil tankers | Offshore platforms | Port operations

Certifications & Advantages

Certifications: CCS / NK / BV / ABS / DNV / LR / KR / RINA / IRS / RS / CRS

Safe fender handling, high efficiency deployment, reduced manpower, stable hydraulic control, reliable operation in harsh offshore environments.

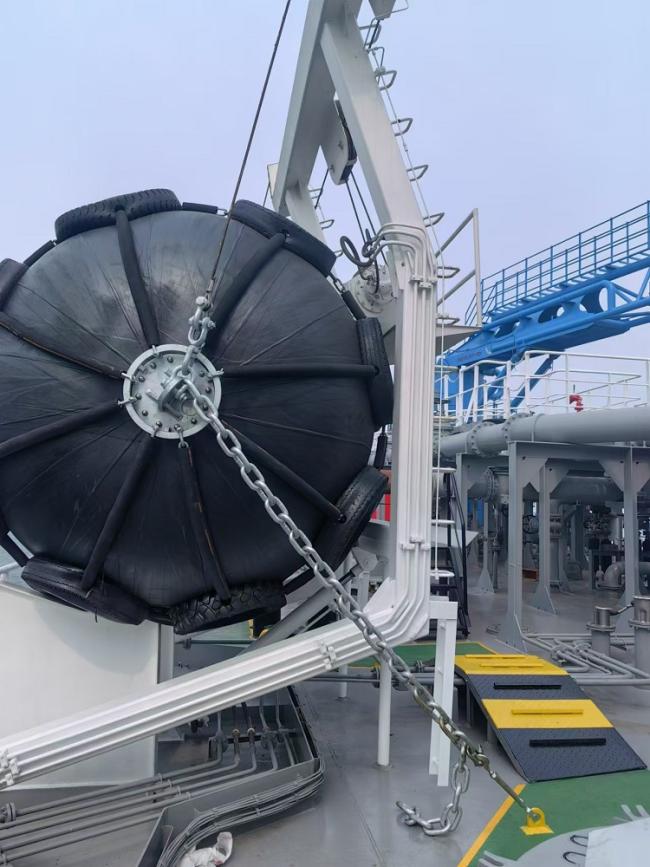

Drawing & Photos

General arrangement drawing | Structural drawing | Installation layout | Product photos

Ordering Information

MOQ: 1 Unit | Delivery Time: As per project | Payment: T/T, L/C | Customization: Available

FAQ

Q1: How to select correct fender crane?

A: Based on fender size, SWL, outreach and operating conditions.

Q2: Can it operate in harsh weather?

A: Yes, designed for offshore and extreme environments.

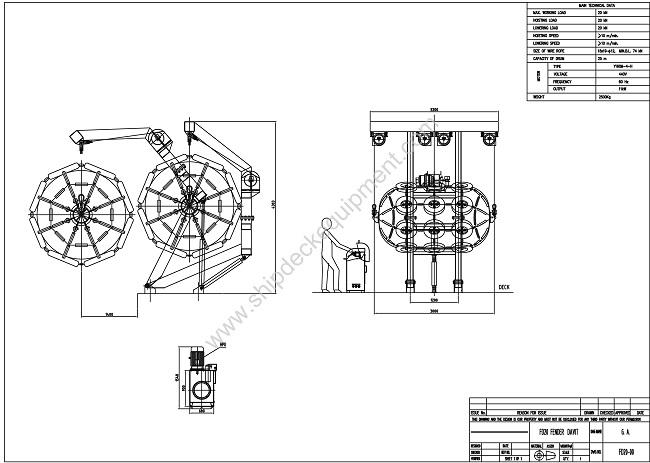

Drawing of Davit for Pneumatic Rubber Fender, Hydraulic Fender Crane,
