Electric Engine Room Gantry Crane Ship Deck Equipment
Electric Engine Room Gantry Crane Ship Deck Equipment
Description:
Engine room crane is electric remote control crane. It is for lifting engine room spare parts and maintenance engine purpose. It is above main engine. It can also be used for lifting other engine room equipment to move in and move out. It helps ship crew to reduce their workload and make their life easier. Our engine room crane is easy for maintenance and low noise.
Main Technical Specifications:
- Working Temperature: -40 to 50℃ Etc.
- Surface treatment: sandblasting to S2.5 + 3 layers of epoxy paint,
- Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA.
Main Technical Parameters:
| SWL (Ton) |
Horizontal Traveling Speed (m/min) |
Hoisting Speed |
Power Supply |
Hoisting Height (m) |
Traveling Motor Hoisting Motor Parameters |
| 0.5 | 6 | 8 |
AC380V, 50HZ 3PH
AC415V 50HZ 3PH
AC440 60HZ 3PH |
5-12 | 0.2/0.8 |
| 1 | 6 | 8 | 5-12 | 0.4/1.5 | |
| 2 | 6 | 8 | 5-40 | 0.4/3 | |
| 3 | 6 | 8 | 5-40 | 0.8/4.5 | |
| 5 | 6 | 8 | 5-40 | 0.8/7.5 |

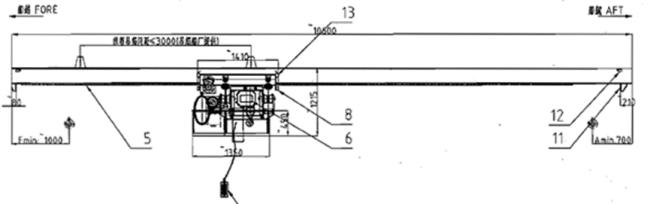

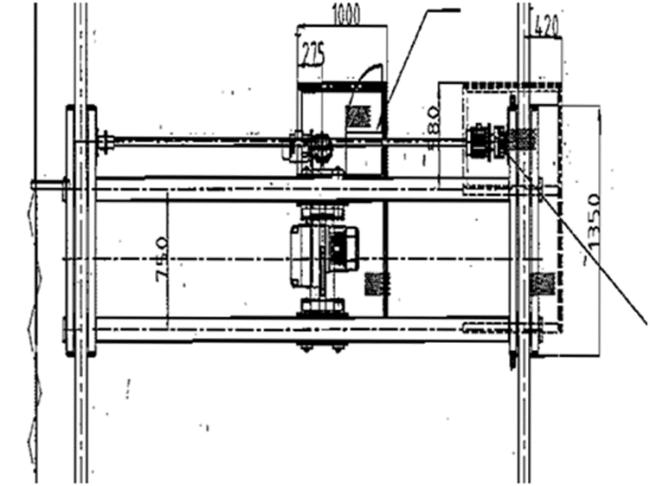

Drawing of Electric Engine Room Gantry Crane Ship Deck Equipment
