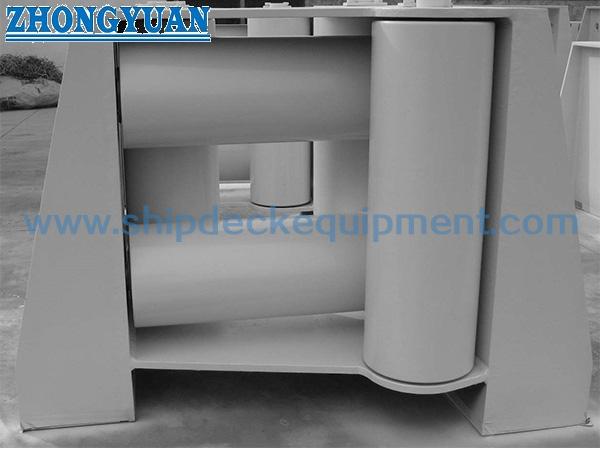

JIS F 2026 Type BR Five Tube Rollers Universal Fairleads with Upper Roller Ship Mooring Equipment
Description
Deck end roller is located on the overboard side deck for ship’s mooring. It is produced according to Japanese standard. It is an important device for ship mooring. It is a universal fairlead which helps to lead the ropes from directions. Smooth surface protects the rope. Widely applicable to dredgers, crane ships, piling boats and other engineering vessels;
Main Technical Specification:
- Standard: JIS F 2026-1980
- Type: Type BR, Type BL;
- Roller diameters: 140~315mm;
- Weight: 235~2050kg
- Materials: C-Mn Steel, Mild Steel, Stainless Steel
- Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available.
- Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA.
Main Technical Parameters:
| Nominal Dia. |
Frame | |||||||||||||||||
| B | B1 | b | b1 | b2 | b3 | b4 | D | D1 | D2 | D3 | H | h | hl | h2 | h3 | L | Ll | |
| 140 | 310 | 390 | 150 | 69 | 20 | 45 | 25 | 90 | 140 | 120 | 80 | 480 | 275 | 130 | 40 | 50 | 515 | 805 |
| 160 | 360 | 460 | 175 | 82 | 22 | 65 | 35 | 110 | 160 | 140 | 90 | 515 | 290 | 145 | 45 | 60 | 570 | 890 |
| 180 | 410 | 525 | 200 | 95 | 24 | 80 | 40 | 135 | 180 | 150 | 100 | 560 | 315 | 155 | 50 | 70 | 620 | 960 |
| 200 | 460 | 583 | 225 | 108 | 26 | 90 | 45 | 160 | 200 | 160 | 110 | 590 | 330 | 170 | 60 | 80 | 675 | 1049 |
| 250 | 565 | 701 | 280 | 133 | 30 | 105 | 55 | 200 | 250 | 200 | 130 | 715 | 415 | 195 | 75 | 90 | 825 | 1303 |
| 315 | 670 | 824 | 330 | 159 | 34 | 125 | 65 | 240 | 300 | 240 | 160 | 870 | 520 | 220 | 90 | 100 | 980 | 1562 |
| Nominal Dia. |
Frame | Leg of weld | Weight (kg) |
|||||||||||||||
| I | l1 | l2 | l3 | l4 | R | R1 | t | t1 | t2 | t3 | t4 | f | f1 | f2 | f3 | |||
| 140 | 335 | 120 | 60 | 50 | 20 | 40 | 70 | 12 | 10 | 16 | 6 | 20 | 9 | 6 | 12 | 4 | 235 | |
| 160 | 365 | 135 | 65 | 50 | 20 | 45 | 85 | 14 | 10 | 18 | 8 | 22 | 9 | 7 | 12 | 6 | 353 | |
| 180 | 390 | 145 | 70 | 50 | 20 | 50 | 95 | 16 | 10 | 20 | 10 | 24 | 9 | 9 | 12 | 8 | 496 | |
| 200 | 420 | 160 | 80 | 50 | 20 | 60 | 110 | 18 | 12 | 22 | 10 | 26 | 10 | 10 | 14 | 8 | 648 | |
| 250 | 520 | 210 | 105 | 60 | 25 | 75 | 135 | 20 | 14 | 26 | 12 | 30 | 10 | 12 | 14 | 10 | 1176 | |
| 315 | 620 | 260 | 130 | 60 | 25 | 90 | 160 | 22 | 16 | 30 | 14 | 34 | 12 | 14 | 16 | 10 | 2050 | |

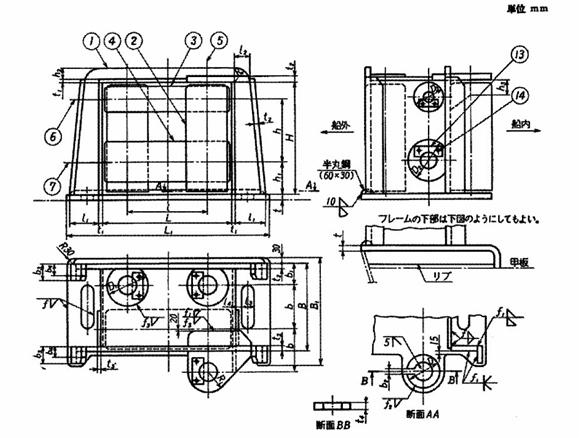

Drawing of JIS F 2026 Type BR Five Tube Rollers Universal Fairleads with Upper Roller Ship Mooring Equipment
