CB/T 3861 Type A Casting Steel Roller Fairlead With Dust Cover Ship Mooring Equipment

Price Negotiable

Price: Based on quotation

MOQ: 1 Unit

Delivery Time: Based on project requirements

Brand: Zhongyuan Marine Equipmen

Product Description

CB/T 3861 Type A Casting Steel Roller Fairlead With Dust Cover Ship Mooring Equipment

Description:

This kind of fairlead roller has single roller without base. And two or three can be used in one group toguide ropes from any direction. Besides, this products obtain IACS class certificates and other certificates.

Main Technical Specifications:

Technical Standard: CB/T 3861-2011
Type: CB/T 3861-2011 Form A
Roller Diameters: 100~450mm
Roller No.: Single roller
Roller Weight:9.9~462kg
Materials: Mild Steel, C-Mn Steel, Stainless Steel, Casting Steel, Nodular Cast Iron
Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, Polished, customized surface treatment available.
Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
Can be Customized

Main Technical Parameters:

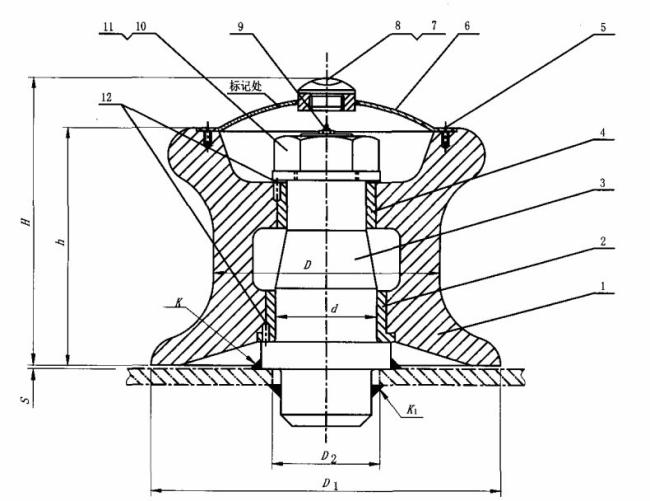

Roller Dia.	SWL KN	Fiber Rope Dia.	SWR Dia. 6x37	D1	D2	H	H	d	S	K		K1	Weight kg
100	54	28	12. 0	160	45	128	114	50	3	5			9.9
150	127	32	16. 0	240	65	2l1	170	75		g	7		33.8
200	191	40	20.0	310	85	251	209	95		10	8		68. 0
250	274	45	24.0	380	95	298	249	110	4	10	8		114
300	323	50	28.0	440	115	321	270	125		13	10		168
350	431	55	34. 0	500	130	346	293	145		13	10		248
400	559	65	10.0	560	145	375	316	160	5	14	12		355
450	617	80	44.0	620	160	391	330	175	5	14	12		462
