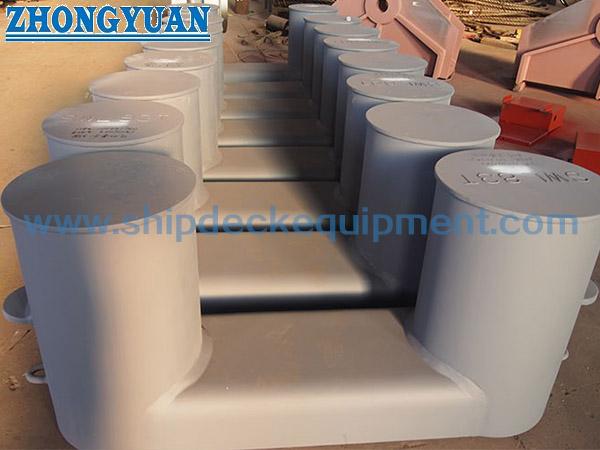

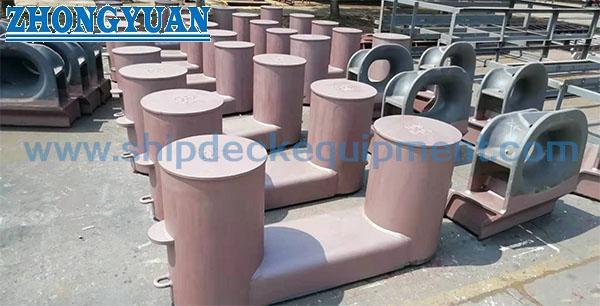

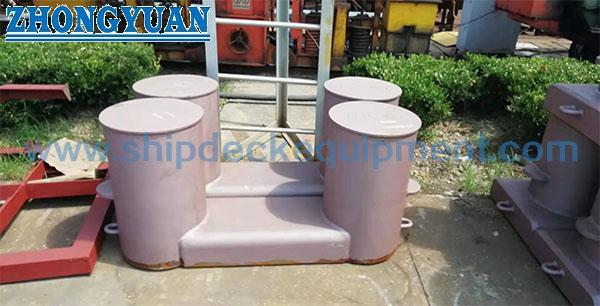

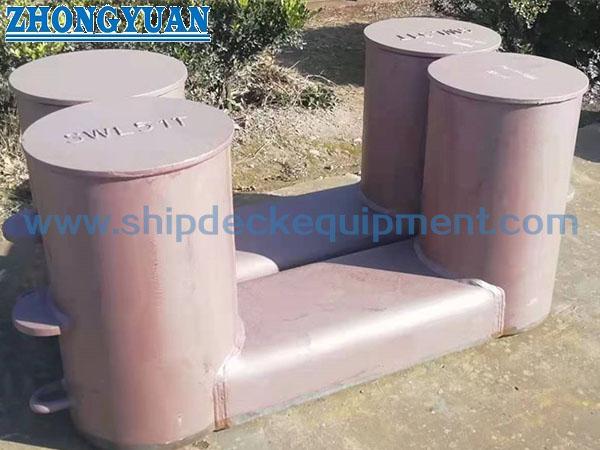

ISO 13795 type A welded steel bollards with compact base plate ship towing equipment is a double bitt type bollard. It is used for both mooring & towing. The nominal sizes are: 150, 200, 250A, 250B, 300A, 300B, 350A, 350B, 400A, 400B, 450A, 450B, 500A, 500B, 550A, 550B and 600. Base plates is weldable steel plates having a yield point of not less than 235 N/mm 2 ; posts material is weldable steel plates having a yield point of not less than 235 N/mm 2 or equivalent steel tubes. The posts of the bollards is constructed from steel pipes or formed from plate. Fins is installed to keep the ropes as low as possible so as to reduce the loads to the bollard posts from the mooring/towing ropes. An eye plate for tying the stopping-off rope or chain is provided.
Main Technical Specifications:
- Technical Standard: ISO 13795:2020;
- SWL Range: 98-1893KN (Towing), 54KN- 1401KN(One Rope Use); 49-948KN (Two Rope Use);
- Materials: High Tensile Steel, Stainless steel is available;
- Weight: 29 to 1391kg;
- Nominal Diameters: 150 to 600mm;
- Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available.
- Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
Main Technical Parameters:
|
Nominal size Dn |
D1 | D2 | D3 | D4 | H1 | H2 | H3 | H4 | b | L | E | t | t1 | t2 | R |
| 150 | 165,2 | 185 | - | 80 | 330 | 90 | 70 | 60 | 155 | 400 | - | 8,0 | 6 | 6 | 40 |
| 200 | 216,3 | 240 | - | 130 | 395 | 115 | 70 | 60 | 205 | 500 | - | 8,0 | 6 | 6 | 50 |
| 250A | 267,4 | 290 | - | 160 | 505 | 135 | 90 | 75 | 250 | 630 | - | 12,0 | 9 | 8 | 60 |
| 250B | 267,4 | 290 | - | 160 | 505 | 135 | 90 | 75 | 250 | 630 | - | 10,0 | 8 | 7 | 60 |
| 300A | 318,5 | 340 | 150 | 185 | 600 | 150 | 110 | 85 | 290 | 800 | 300 | 21,5 | 16 | 9 | 70 |
| 300B | 318,5 | 340 | 150 | 185 | 600 | 150 | 110 | 85 | 290 | 800 | 300 | 12,0 | 9 | 9 | 70 |
| 350A | 355,6 | 380 | 170 | 200 | 685 | 175 | 130 | 105 | 340 | 890 | 350 | 26,0 | 19 | 11 | 80 |
| 350B | 355,6 | 380 | 170 | 220 | 685 | 175 | 130 | 105 | 340 | 890 | 350 | 14,0 | 10 | 9 | 80 |
| 400A | 406,4 | 430 | 190 | 230 | 730 | 185 | 145 | 115 | 380 | 1 000 | 380 | 28,0 | 20 | 13 | 85 |
| 400B | 406,4 | 430 | 190 | 250 | 730 | 185 | 145 | 115 | 380 | 1 000 | 380 | 15,0 | 11 | 11 | 85 |
| 450A | 457,2 | 480 | 210 | 265 | 770 | 195 | 160 | 120 | 425 | 1 100 | 410 | 29,0 | 21 | 14 | 90 |
| 4508 | 457,2 | 480 | 210 | 285 | 770 | 195 | 160 | 120 | 425 | 1 100 | 410 | 14,5 | 11 | 11 | 90 |
| 500A | 508,0 | 530 | 235 | 295 | 830 | 230 | 200 | 150 | 480 | 1 250 | 460 | 32,0 | 23 | 16 | 100 |
| 500B | 508,0 | 530 | 235 | 320 | 830 | 230 | 200 | 150 | 480 | 1 250 | 460 | 14,5 | 11 | 11 | 100 |
| 550A | 558,8 | 580 | 255 | 330 | 900 | 270 | 200 | 180 | 520 | 1 380 | 540 | 31,0 | 22 | 16 | 110 |
| 550B | 558,8 | 580 | 255 | 350 | 900 | 270 | 200 | 180 | 520 | 1 380 | 540 | 21,0 | 16 | 11 | 110 |
| 600 | 609,4 | 630 | 280 | 365 | 950 | 300 | 200 | 200 | 560 | 1 550 | 600 | 33,0 | 23 | 16 | 120 |
| Nominal size Dn. |
Welding leg length | SWL | Calculated weight (kg) |
||||||||
|
For mooring purposes (Figure-of-eight belay) |
For towing purposes (Eye splice) |
||||||||||
| Z1 | z2 | One-rope use | Two-rope use | ||||||||
| (kN) | (t) | (kN) | (t) | (kN) | (t) | ||||||
| 150 | 3,5 | 3,5 | 54 | 5,5 | 49 | 5,0 | 383 | 10 | 29 | ||
| 200 | 3,5 | 3,5 | 82 | 8,4 | 65 | 6,7 | 579 | 13 | 46 | ||
| 250A | 5,5 | 4 | 156 | 16 | 134 | 14 | 1315 | 27 | 107 | ||
| 250B | 5,5 | 4 | 127 | 13 | 108 | 11 | 215 | 22 | 91 | ||
| 300A | 10,5 | 4 | 332 | 34 | 306 | 31 | 3365 | 62 | 281 | ||
| 300B | 10,5 | 4 | 186 | 19 | 161 | 16 | 352 | 36 | 166 | ||
| 350A | 12,5 | 5 | 443 | 45 | 418 | 43 | 5062 | 85 | 431 | ||
| 350B | 7 | 4 | 244 | 25 | 216 | 22 | 2855 | 50 | 241 | ||
| 400A | 12,5 | 6 | 594 | 61 | 521 | 53 | 6632 | 106 | 570 | ||
| 400B | 8 | 5 | 326 | 33 | 269 | 27 | 3816 | 67 | 322 | ||
| 450A | 12 | 7 | 753 | 77 | 612 | 62 | 8201 | 124 | 712 | ||
| 4508 | 8 | 7 | 382 | 39 | 292 | 30 | 4483 | 78 | 379 | ||
| 500A | 12,5 | 8 | 992 | 101 | 757 | 77 | 10928 | 154 | 960 | ||
| 5008 | 8 | 5 | 457 | 47 | 326 | 33 | 5474 | 93 | 465 | ||
| 550A | 11,5 | 8 | 1131 | 115 | 812 | 83 | 12635 | 165 | 1 123 | ||
| 5508 | 11,5 | 5 | 781 | 80 | 541 | 55 | 9280 | 159 | 787 | ||
| 600 | 11,5 | 8 | 1401 | 143 | 948 | 97 | 15539 | 193 | 1 391 | ||

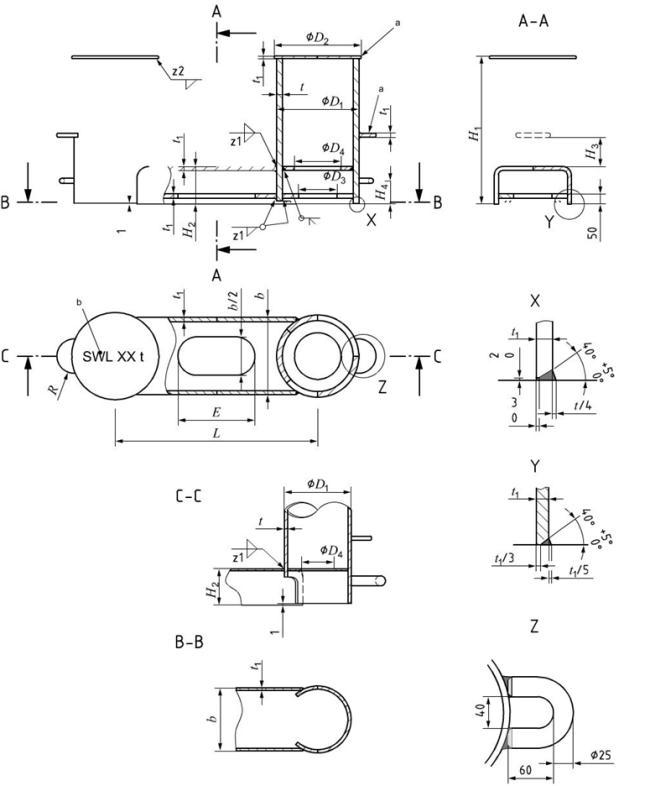

Drawing of ISO 13795 Type A Welded Steel Bollards With Compact Base Plate Ship Towing Equipment
