DIN 81860-1999 German Standard Watertight Chain Cable Clench Anchor Releaser Ship Mooring Equipment
DIN 81860-1999 German Standard Watertight Chain Cable Clench Anchor Releaser Ship Mooring Equipment
Description:
DIN 81860 can provide you a easy and safe way to cut off the anchor when ships facing sudden danger. The materials of DIN 81860 anchor releaser are casting steel or stainless steel. Besides, it is produced through many procedures such as casting forging and welding. German standard anchor releasers' surface should be polished and galvanized without any defects. For more information, you can feel free to contact us.
Main Technical Specification:
1. Technical Standard: DIN 81860-1999; German Standard
2. Nominal Chain Diameter: 36mm to 152mm
3. Applicable to Grade 2 and Grade 3 Anchor Chains;
4. Watertight function test
5. Materials: C-Mn Steel, Stainless Steel,
6. Excellent Flexibility;
7. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, customized surface treatment available.
8. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
9. Can be Customized
Main Technical Parameter:
| Chain Diameters | Фd1 X s1 | Ф d2 | l1 | U1 | v1 | v2 | a1 | a2 |
| 36 38 40 42 44 46 | 273 X 12,5 | 375 | 735 | 75 | 10 | 75 | 6 | 3 |
| 48 50 52 54 56 | 323,9 X 14,2 | 440 | 835 | 95 | 12 | 90 | 4 | |
| 58 60 62 64 66 68 | 406,4 X 16 | 540 | 995 | 110 | 14 | 95 | 8 | 5 |
| 70 73 76 78 81 | 508 X 17,5 | 645 | 1245 | 105 | 15 | 100 | 10 | 6 |
| 84 87 90 92 | 130 | 150 | ||||||
| 95 97 100 102 105 | 610 X20 | 754 | 1430 | 18 | 8 | |||
| 107 111 114 | 170 | 185 | ||||||
| 117 120 122 124 127 | 711 X 22,2 | 856 | 1615 | 20 | 12 | |||
| 130 132 137 | 813 X 22,2 | 958 | 1790 | |||||
| 142 147 152 | 914 X 25 | 1060 | 1970 | 190 | 22 | 200 | 14 | 10 |

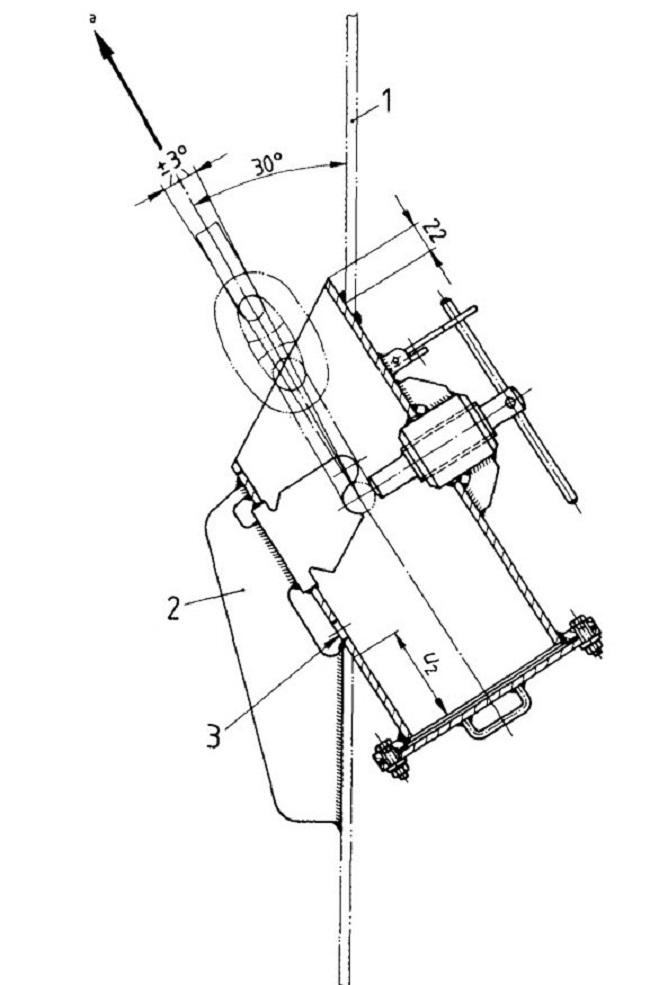

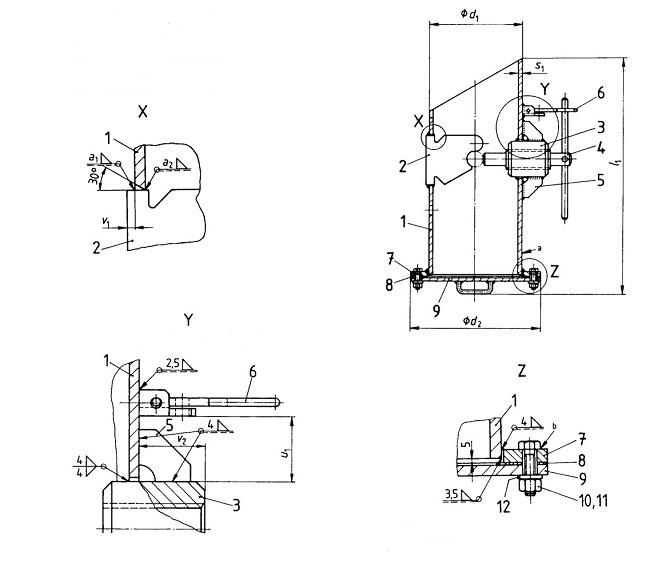

Drawing of DIN 81860-1999 German Standard Watertight Chain Cable Clench Anchor Releaser Ship Mooring Equipment
