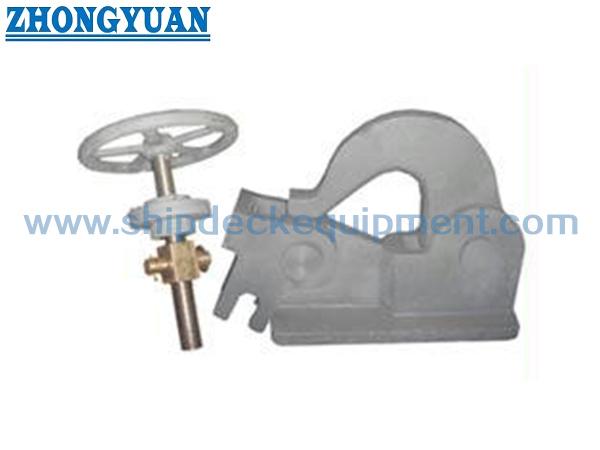

CB 289-81 Screw Type Anchor Releaser Ship Mooring Equipment Cable Clench Ship Mooring Equipment
CB 289-81 Screw Type Anchor Releaser Ship Mooring Equipment Cable Clench Ship Mooring Equipment
Description:
CB* 289-91 screw type anchor releaser is commonly applicable to various large vessels. It is installed on the bulkhead of anchor chains storage and it's used to fix the end link of anchor chain. CB* 289-91 anchor releaser can be controlled by sailors at a far distance. It is made of high grade steel.
Main Technical Specification:
1. Technical Standard: CB*289-81;
2. Nominal Chain Diameter: 25mm to 122mm
3. Applicable to Grade 2 and Grade 3 Anchor Chains;
4. Watertight function test
5. Materials: C-Mn Steel, Stainless Steel,
6. Excellent Flexibility;
7. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, customized surface treatment available.
8. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
9. Can be Customized
Main Technical Parameter:
|
Cale diameter mm |
B | D | D1 | D2 | D3 | L | L1 | L2 | L3 | H | H1 |
Weight kg |
| 25-34 | 120 | 200 | 38 | 32 | 124 | 228 | 90 | 150 | 140 | 280 | 80 | 20 |
| 37-43 | 140 | 250 | 48 | 38 | 140 | 243 | 90 | 150 | 145 | 300 | 96 | 36 |
| 45-53 | 180 | 320 | 60 | 50 | 166 | 327 | 125 | 200 | 197 | 380 | 120 | 78 |
| 57-67 | 220 | 400 | 75 | 60 | 180 | 390 | 140 | 200 | 225 | 480 | 140 | 104 |
| 72-82 | 235 | 400 | 80 | 70 | 195 | 425 | 150 | 200 | 250 | 510 | 148 | 149 |
| 87-102 | 250 | 400 | 85 | 75 | 195 | 457 | 160 | 200 | 272 | 560 | 155 | 183 |
| 107-122 | 270 | 400 | 95 | 86 | 195 | 465 | 175 | 230 | 285 | 630 | 170 | 225 |

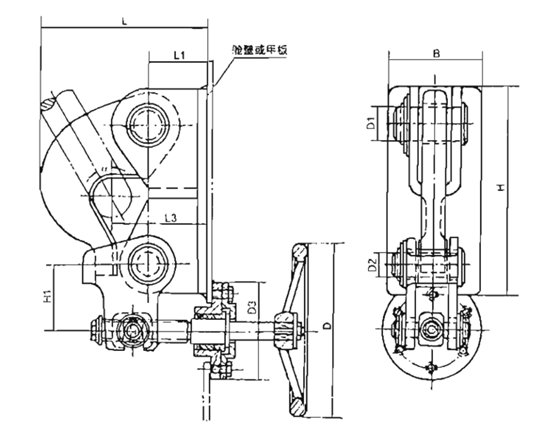

Drawing of CB 289-81 Screw Type Anchor Releaser Ship Mooring Equipment Cable Clench Ship Mooring Equipment
