ISO 8146 Forging Material Oval Eyeplate Lifting Eye Plate Ship Mooring Equipment

Description:

As an eye plate for ships that can be used when fixing structures such as rope terminals, shackles, pulleys, etc.

Main Technical Specification:

1. Standard: ISO 8146-1990;

2. Nominal Sizes: 0.4-50mm

3. Type: Type A, Type B;

4. Permissible Load: 4 to 500KN

5. Material: Mild Steel, Stainless Steel C-Mn Steel Forging;

6. The surface of the finished eyeplate is free from visible cracks and flaking.

7. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer;

8. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.

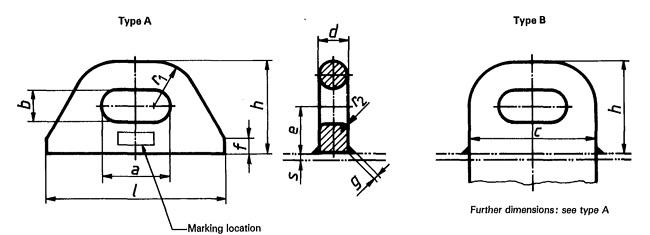

Main Technical Parameter:

Nominal size	Permissible load kN	a	b	C	d	e	f	h	I	r1	r2	Mounting of type A Welding s min.	Mounting of type A Welding g min.
0.4	4	22	15	42	10	15	8	32,5	65	17,5	3	6	4
0.6	6,3	28	19	52	12	19	8	40,5	0	21,5	4	6	4
1	10	35	22	67	16	25	8	52	95	27	5	6	4
1.6	16	42	24	82	20	33	8	65	120	32	5	7	4
2	20	50	27	100	25	35	12	73,5	132	38,5	5	9	6
2,5	25	55	29	105	25	39	12	78,5	140	39,5	6	9	6
3	31,5	66	33	126	30	42	12	88,5	180	46,5	7	10	6
4	40	77	36	147	35	48	15	101	210	53	7	12	7
5	50	87	41	167	40	57	18	117,5	225	60,5	8	14	9
6	63	91	45	171	40	66	18	128,5	240	62,5	8	14	9
8	80	101	51	201	50	73	20	148,5	270	75,5	10	17	10
10	100	117	56	217	50	80	22	158	300	78	10	17	11
12	125	128	61	248	60	87	24	177,5	335	90,5	12	20	12
16	160	145	67	265	60	95	26	188,5	370	93,5	12	20	13
20	200	157	73	297	70	105	28	211,5	420	106,5	14	25	14
25	250	170	80	331	80	120	32	240	470	120	16	30	16
32	315	194	88	374	90	130	36	264	530	134	18	30	18
40	400	220	98	420	100	145	40	294	570	149	20	35	20
50	500	240	108	460	110	155	45	319	630	164	22	35	22
