Description:
As an eye plate for ships that can be used when fixing structures such as rope terminals, shackles, pulleys, etc.
Main Technical Specification:
1.Standard: JIS F3410-1999,
2.Nominal Sizes: 0.5-10mm
3.Type: Type C,
4.Permissible Load: 4.9 to 98KN
5.Material: Mild Steel, Stainless Steel C-Mn Steel Forging;
6.The surface of the finished eyeplate is free from visible cracks and flaking.
7.Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer;
8. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
Main Technical Parameter:
| Nominal size |
Permissible load KN |
b | B | D | H | T | Welding leg f1 |
f2 | weight |
| 0.5 | 4.9 | 13 | 52 | 26 | 26 | 13 | 4 | - | 0.19 |
| 1 | 9.8 | 15 | 68 | 38 | 38 | 15 | 6 | - | 0.39 |
| 2 | 19.6 | 19 | 86 | 48 | 48 | 19 | 9 | - | 0.78 |
| 3 | 29.4 | 24 | 108 | 60 | 60 | 22 | 11 | - | 1.42 |
| 5 | 49 | 32 | 144 | 80 | 80 | 32 | 13 | - | 3.68 |
| 7.5 | 73.5 | 36 | 162 | 90 | 90 | 36 | 8 | 12 | 5.24 |
| 10 | 98 | 42 | 189 | 105 | 105 | 42 | 9 | 14 | 8.32 |

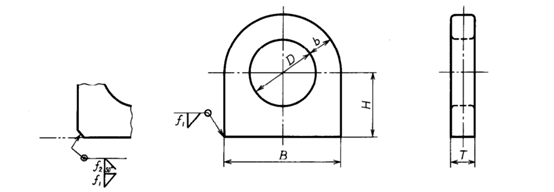

Drawing of JIS F 3410 Type C Rope Steel Plate Eye Plates Ship Mooring Equipment
