JIS F 3410 Type D Forging Steel Oval Lifting Eyeplate Ship Mooring Equipment
JIS F 3410 Type D Forging Steel Oval Lifting Eyeplate Ship Mooring Equipment
Description:
As an eye plate for ships that can be used when fixing structures such as rope terminals, shackles, pulleys, etc.
Main Technical Specification:
1. Standard: JIS F3410-1999,
2. Nominal Sizes: 0.4-50mm
3. Type: Type D,
4. Permissible Load: 4 to 500KN
5. Material: Mild Steel, Stainless Steel C-Mn Steel Forging;
6. The surface of the finished eyeplate is free from visible cracks and flaking.
7. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer;
8. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
Main Technical Parameter:
| Nominal No. |
Permissible load KN |
d | L | H | R | T | A | B | h | Welding Leg size f1 |
Welding Leg size f2 |
Welding Leg size f3 |
Weight kg |
| 0.5 | 4.9 | 19 | 65 | 45 | 15 | 12 | 130 | 50 | 5 | 7 | 5 | 4 | 1.1 |
| 1 | 9.8 | 22 | 75 | 50 | 17 | 14 | 150 | 62 | 5 | 9 | 5 | 5 | 1.7 |
| 2 | 19.6 | 28 | 100 | 60 | 22 | 16 | 200 | 80 | 2 | 8 | 11 | 5 | 3.36 |
| 3 | 29.4 | 36 | 115 | 70 | 28 | 19 | 230 | 100 | 2 | 10 | 13 | 7 | 6.06 |
| 5 | 49 | 42 | 145 | 90 | 32 | 24 | 280 | 120 | 2 | 13 | 16 | 8 | 10.8 |
| 7.5 | 73.5 | 50 | 150 | 100 | 40 | 30 | 300 | 140 | 3 | 16 | 20 | 10 | 16.9 |
| 10 | 98 | 60 | 180 | 120 | 45 | 35 | 360 | 170 | 3 | 18 | 22 | 12 | 28.9 |
| 15 | 147 | 70 | 200 | 130 | 55 | 40 | 400 | 200 | 3 | 20 | 24 | 14 | 43.3 |

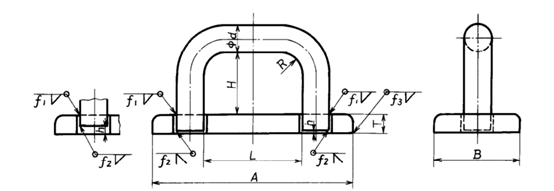

Drawing of JIS F 3410 Type D Forging Steel Oval Lifting Eyeplate Ship Mooring Equipment
