Description:
As an eye plate for ships that can be used when fixing structures such as rope terminals, shackles, pulleys, etc.
Main Technical Specification:
1.Standard: JIS F3410-1999,
2.Nominal No.: 0.5-2
3.Type: Type E,
4.Permissible Load: 4.9 to 19.6KN
5. Material: Mild Steel, Stainless Steel C-Mn Steel Forging;
6. The surface of the finished eyeplate is free from visible cracks and flaking.
7. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer;
8. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
Main Technical Parameter:
| Nominal size | Permissible load kn |
d | L | H | R | D | T | Welding leg f |
Weight (kg) |
| 0.5 | 4.9 | 16 | 55 | 40 | 15 | 45 | 10 | 6 | 0.45 |
| 1 | 9.8 | 22 | 65 | 45 | 20 | 50 | 12 | 7 | 0.82 |
| 2 | 19.6 | 25 | 75 | 50 | 22 | 55 | 15 | 9 | 1.2 |

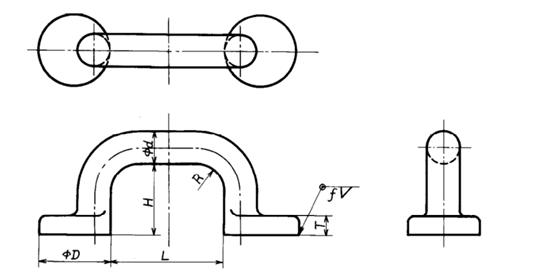

Drawing of JIS F3410 Type E Forging Steel Oval Eye Plate O Ring Ship Mooring Equipment
