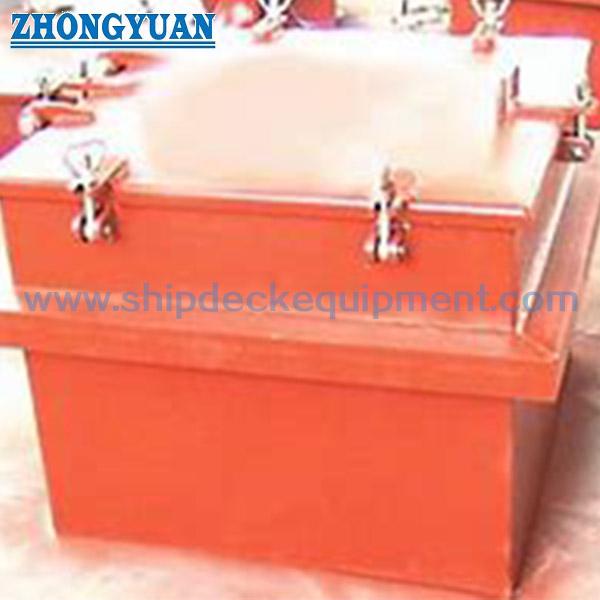

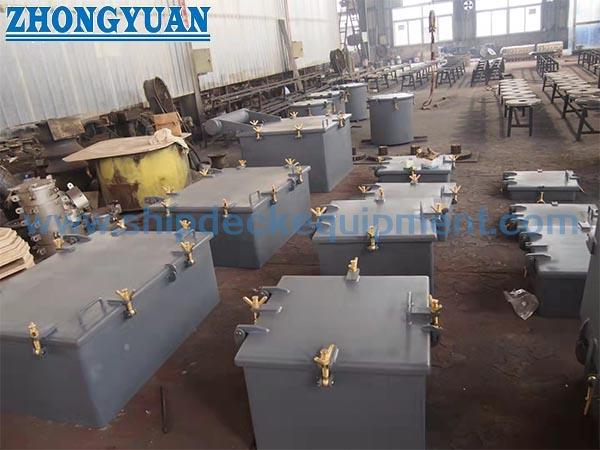

ISO 5778 Small Weathertight Steel Hatch Cover With Wing Nut

Description:

ISO 5778-1998 steel weathertight hatches have good weathertight performance during hose test at 0.2MPa at 2 meters distances. good. The hatches are suitable for loading operations and for giving access to storage compartments and dry cargo holds. The hatches are not suitable as an access to any kind of tanks and shall not be used as escape hatches. These hatches generally conform to the requirements of the International Convention on Load Lines 1966 (LLC66). The possibility for application in position 1 and position 2. The coaming and cover may have square or rounded corners.

Main Technical Specification:

1. Standard: ISO 5778-1998
2. Material: Mild Steel, Stainless Steel,
3. Packing Materials: Neoprene, NBR, Hi - NBR,
4. Test: Hose Test, Chalk Test
5. Dimension: As Standard or Customized, As client’s drawing,
6. Application Type: Weathertight
7. Open & Closing Device: Wing nut, Hinged
8. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available.
9. Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA.

Main Technical Parameters:

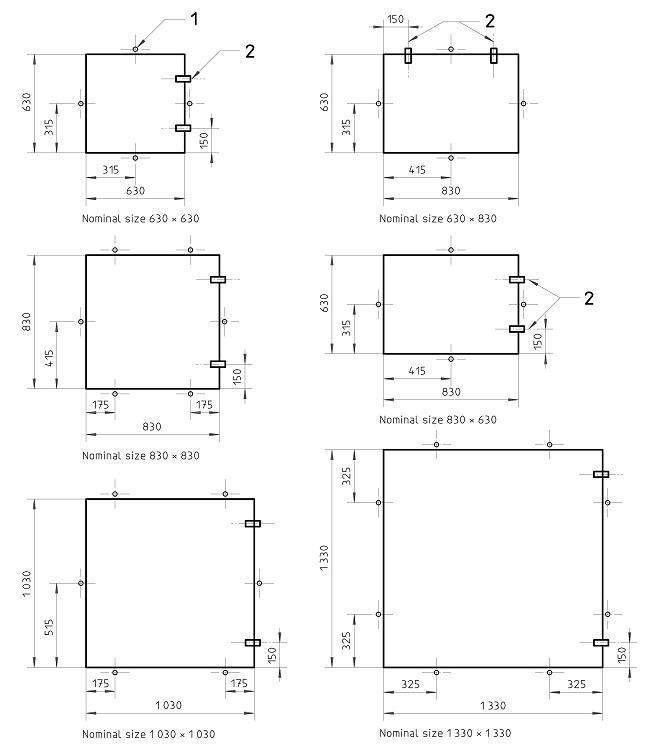

Drawing of ISO 5778 Small Weathertight Steel Hatch Cover With Wing Nut Marine Outfitting
