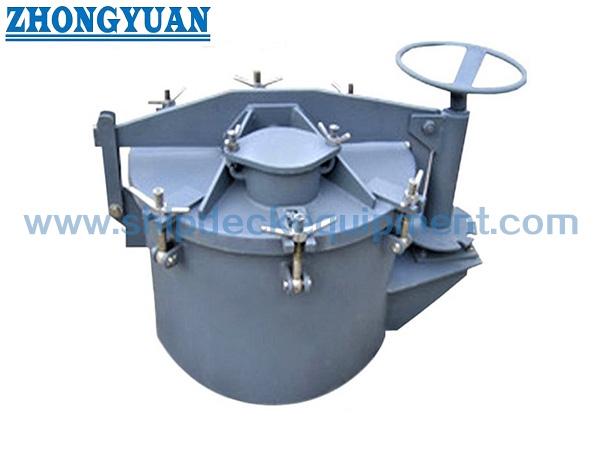

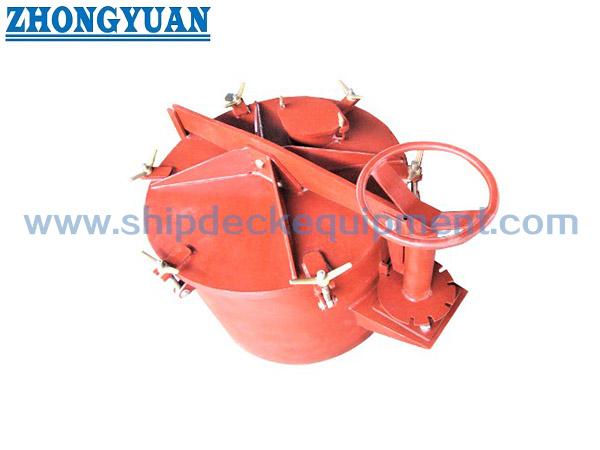

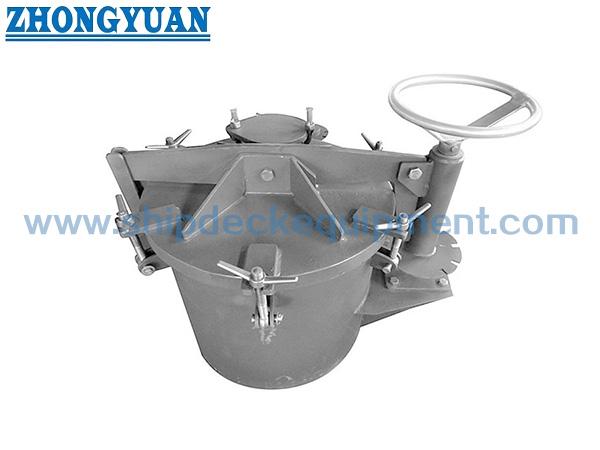

CB/T 282 Type A Round Type Rotary Oil Tank Hatch Cover

Description:

Rotating Oiltight Hatch Cover for Ships is usually used to oil tankers. It's oil tightness is excellent. There are two shapes of this oiltight hatch cover: type A is round, and type B is elliptic. Both are anti-rust and anti-corrosion. The size of Rotating Oiltight Hatch Cover can be customized. It identifies with the standard of CB/T282-94.

Main Technical Specification:

1. Standard: CB/T 282-94
2. Material: Mild Steel, Stainless Steel, Duplex Stainless Steel, Aluminium,
3. Packing Materials: Neoprene, NBR ,Hi - NBR, Viton, Teflon
4. Test: Hydraulic Pressure Test, Hose Test, Chalk Test
5. Dimension: As Standard or Customized, As client’s drawing,
6. Application Type: Water-tight, Weather-tight, Gas Tight, Oil-tight,
7. Open Type: Hand Wheel Quick Operate
8. Closing Type: Hinged
9. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available.
10. Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA.

Main Technical Parameters:

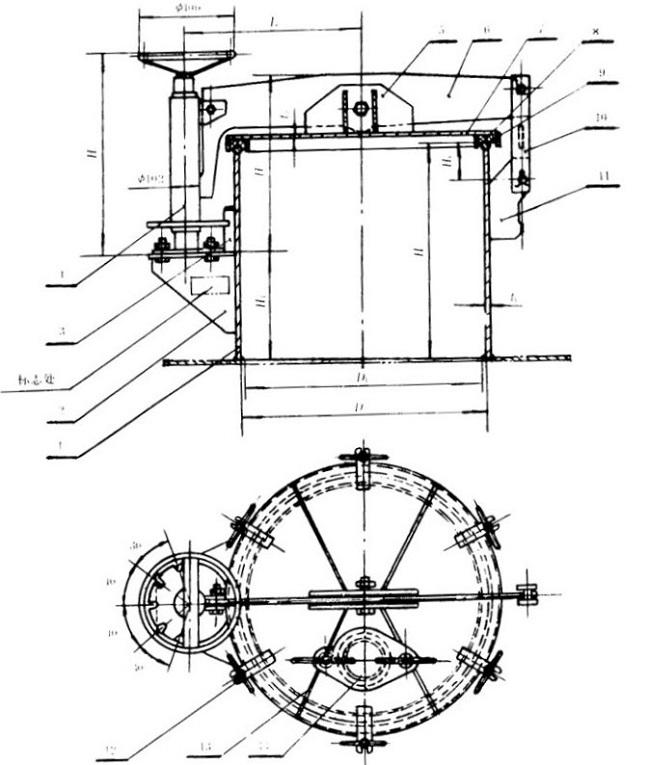

Drawing of CB/T 282 Type A Round Type Rotary Oil Tank Hatch Cover Marine Outfitting
