ASTM A27-70-36 Cast Steel 8" 10" Double Bitt Without Horns Ship Mooring Equipment
Price:
Based on quotation
MOQ:
1 Unit
Delivery Time:
Based on project requirements
Brand:
Zhongyuan Marine Equipmen
Product Description

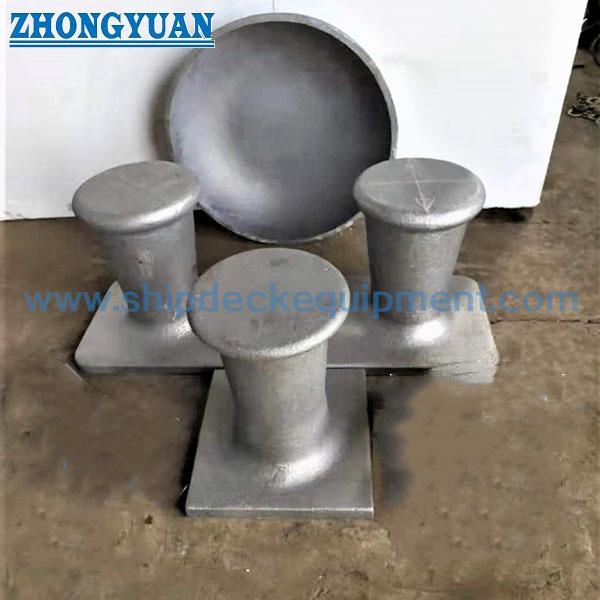

ASTM A27-70-36 Cast Steel 8" 10" Double Bitt Without Horns Ship Mooring Equipment
Description

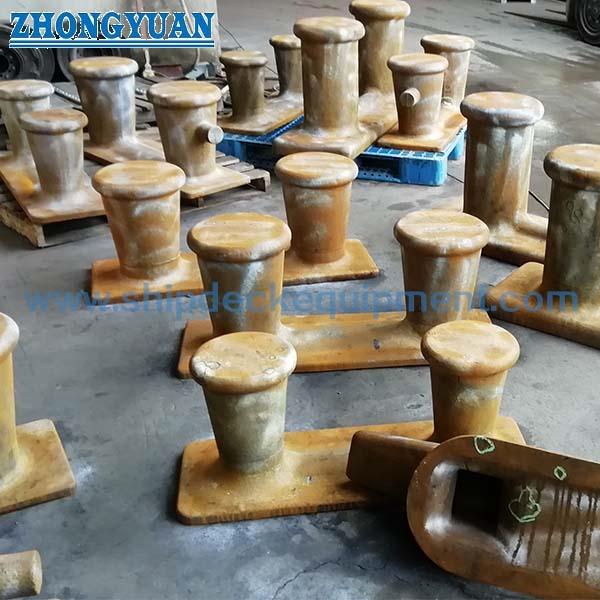

We produce all kinds of bitts. They are cast steel single bitt, cast steel thru deck single bitt, fabricated steel single bitt, cast steel double bitt, cast steel heavy double bitt.
Main Technical Specification:
- Model Type: Double Bitts
- Dimensions(inches): Cast Steel Single Bitt (8”, 10”); Cast Steel Thru Deck Single Bitt (8”, 9”, 10”); Fabricated Steel Single Bitt(12”); Fabricated Steel Cruciform Bitt (10”); Cast Steel Double Bitt (8”, 8” With Horns, 10”, 10” With Horns); Cast Steel Heavy Double Bitt (10”, 10” With Horns, 12”, 14”, 16”)
- Material Grade: Mild Steel Plate (fabricated one), ASTM A27-70-36 Cast Steel, Casting Stainless Steel, Stainless Steel Plate (fabricated one)
- Quality Control:Heat Treatment, Radiographic Examination (RT), Magnetic Testing (MT), Pull Load Test
- Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available.
- Certificate: Mill certificate, CCS, BV, LR, ABS, DNV etc.
Main Technical Parameters:
| Description | Type | Dimensions In Inches (MM) |
LBS (KGS) |
|||||||||
| A | B | C | D | E | F | G | H | I | J | |||
| Double Bitt | 8” |
40” (1016) |
14” (336) |
16” (406) |
11” Ø (279) |
8” (203) |
7” Ø (177) |
2” (51) |
2” (51) |
1-1/4” (32) |
3/4” (18) |
320 (145) |
| Double Bitt | 10” |
45” (1143) |
15” (381) |
18” (457) |
13-1/2ӯ (343) |
9” (228) |
9” Ø (228) |
2-1/4” (57) |
2” (51) |
1-1/4” (32) |
3/4” (19) |
574 (260) |

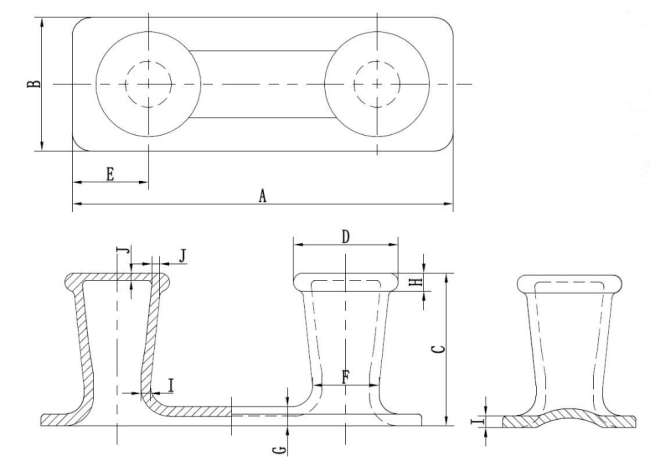

Drawing of ASTM A27-70-36 Cast Steel 8" 10" Double Bitt Without Horns Ship Mooring Equipment
