Steel Plate Fabricated Recessed Bitts Ship Towing Equipment
Price:
Based on quotation
MOQ:
1 Unit
Delivery Time:
Based on project requirements
Brand:
Zhongyuan Marine Equipmen
Product Description

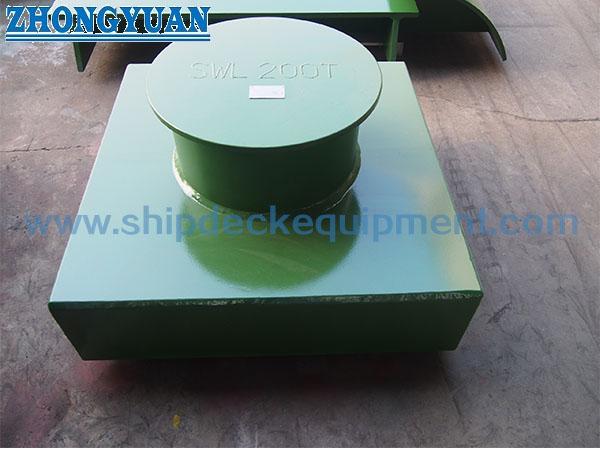

Steel Plate Fabricated Recessed Bitts Ship Towing Equipment
Description:
The recessed bitt is a type of ship's towing fitting installed on the side shell of the ship.
Recessed bitts are normally provided to easily attach the towing lines where the height of the mooring deck is too high.
Main Technical Specifications:
- Standard: ISO 13798:2020; IMO Circular MSC/Circ.1175, Guidance on shipboard towing and mooring equipment
- The nominal sizes are 200, 250, 400A and 400B.
- Type A: manufactured by steel pipes;
- Type B: manufactured by steel plates.
- Safe Working Load/Capacity;30 to 120T
- Material: C-Mn Steel; Stainless Steel
- Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, customized surface treatment available.
- Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
Main Technical Parameters:
| Nominal size Dn |
Type | D | Dl | R | H | T | SWL | Calculated weight kg |
|
| kN | t | ||||||||
| 200 | Type A | 216,3 | 250 | 80 | 140 | 10,3 | 294 | 30 | 16,5 |
| Type B | 210,0 | 10,0 | 16,1 | ||||||
| 250 | Type A | 267,4 | 305 | 100 | 160 | 12,7 | 491 | 50 | 26,7 |
| Type B | 260,0 | 12,0 | 25,7 | ||||||
| 400A | Type A | 406,4 | 480 | 140 | 300 | 12,7 | 687 | 70 | 69,7 |
| Type B | 410,0 | 12,0 | 68,0 | ||||||
| 4008 | Type A | 406,4 | 480 | 140 | 330 | 21,4 | 1177 | 120 | 99,7 |
| Type B | 410,0 | 20,0 | 96,1 | ||||||
Diameter of applied ropes for load consideration (Dimensions in Millimetres)
| Nominal size Dn |
Rope diameter d |
| 200 | 30 |
| 250 | 35 |
| 400A | 40 |
| 4008 | 60 |

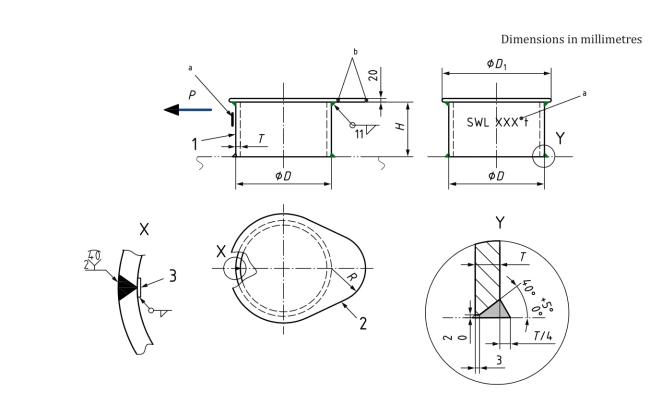

Drawing of Steel Plate Fabricated Recessed Bitts Ship Towing Equipment
