Casting Steel Recessed Bitts Ship Towing Equipment Ship Towing Equipment

Price Negotiable

Price: Based on quotation

MOQ: 1 Unit

Delivery Time: Based on project requirements

Brand: Zhongyuan Marine Equipmen

Product Description

Casting Steel Recessed Bitts Ship Towing Equipment Ship Towing Equipment

Description:

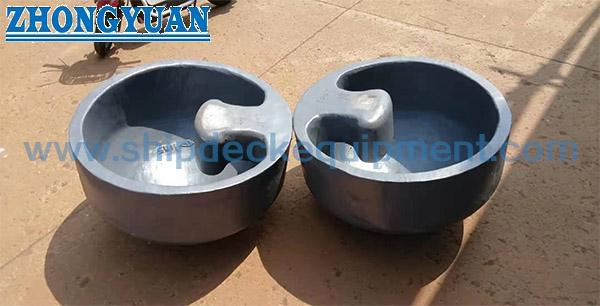

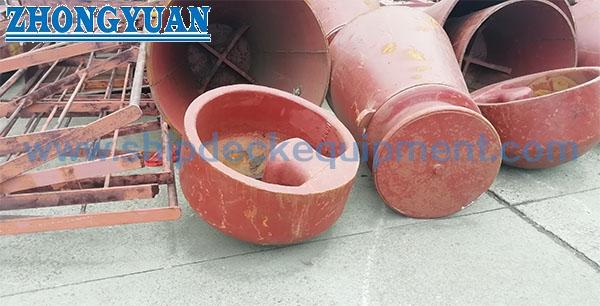

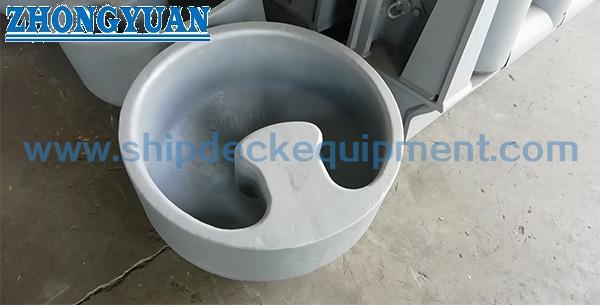

The recessed bitt is a type of ship's towing fitting installed on the side shell of the ship.

Recessed bitts are normally provided to easily attach the towing lines where the height of the mooring deck is too high.

Main Technical Specifications:

Insert into Ship’s shell plate
Standard: ISO 13799:2020; IMO Circular MSC/Circ.1175, Guidance on shipboard towing and mooring equipment
Nominal Sizes: 850mm & 920mm
Type: Type 75; Type 110; Type 135 for Nominal Sizes: 850mm.
Type: Type 100, Type 150, Type 180 for Nominal Sizes: 920mm
Safe Working Load/Capacity; 75 to 180T
Face angle of cable :-16~+30°
Material: C-Mn Steel Casting; Stainless Steel Casting
Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, customized surface treatment available.
Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.

Main Technical Parameters:

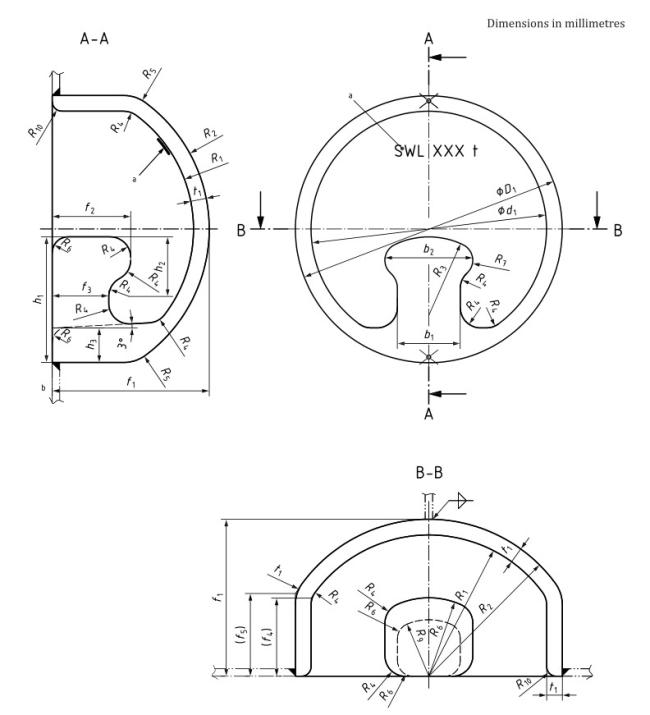

Dimensions (continued) and SWL of recessed bittsDimensions in millimetres

Nominal size Dn	Type	Material (minimum yield strength)	SWL		Calculated weight kg
Nominal size Dn	Type	Material (minimum yield strength)	kN	t
850	Type 75	235 N/mm2	736	75	770
	Type 110	350 N/mm2	1079	110	770
	Type 135	430 N/mm2	1324	135	770
920	Type 100	235 N/mm2	981	100	826
	Type 150	350 N/mm2	1472	150	826
	Type 180	430 N/mm2	1766	180	826
