Welding Type High Holding Power Flipper Delta Anchor For Offshore Anchor And Anchor Chain
Welding Type High Holding Power Flipper Delta Anchor For Offshore Anchor And Anchor Chain
Description

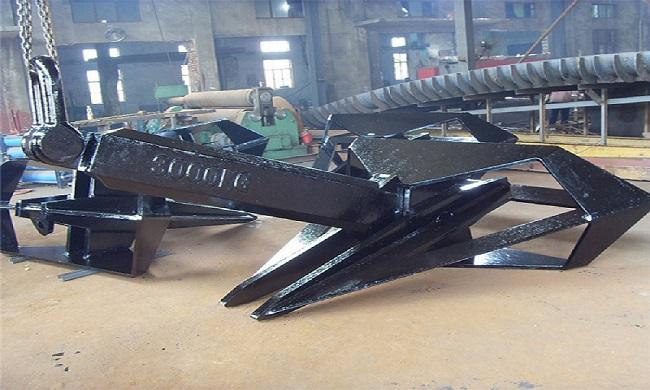

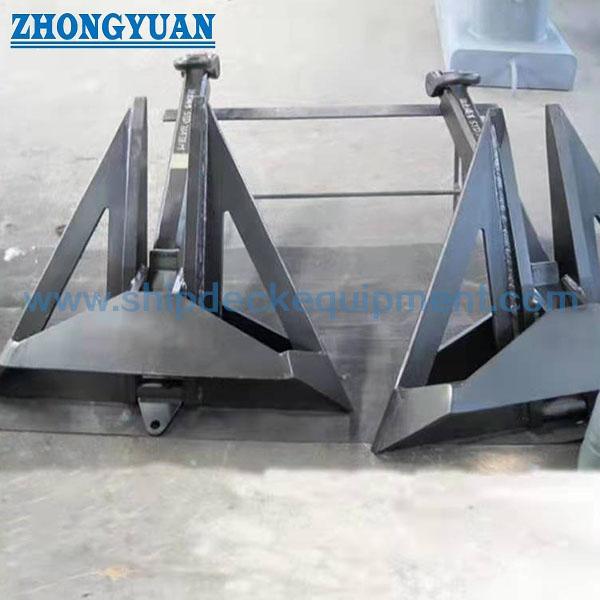

We are gold distributor for anchor factory. We supply marine anchor, offshore anchors. Delta High Holding Power Anchor, also called Flipper Delta Anchor, Welded Delta Anchor, Major advantages of welding anchor:
1. Easy dismantling for transport purposes.
2. Proven superior high holding power capacity.
3. Excellent efficiency (weight/ holding power)
4. Open construction for smooth and good penetration in different kinds of soil
5. No rotation, which means no decrease of holding capacity and no dragging of the anchor
We supply
Ship HHP Anchors: 300 - 27,500Kg
AC-14 HHP Anchors: 56 - 25,000Kg
Danforth HHP Anchors: 20 - 18,000Lbs
Light Weight Anchors: 23 - 6,804Kg
Hall Anchors Type A, B, C: 100 - 15,400Kg
Spek Anchors Type CB711-95 & M: 80 - 25,000Kg
Japan Stockless Anchors: 100 - 20,000Kg
GB545-96 Admiralty Anchors: 50 - 10,000Kg
Main Technical Specification:
- Type: Delta High Holding Power Anchor
- Material: Stainless Steel, Mild Steel.
- Nominal Weight: 300KG-27000KG
- Surface Treatment: Black bitumen paint, anti-rusting paint or customized
- Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc.
Main Technical Parameters:
| Nominal Weight | Dimensions (mm) | |||||
| (kg) | A | B | C | D | E | F |
| 300 | 1,200 | 960 | 1,080 | 457 | 1,380 | Ø45 |
| 500 | 1,500 | 1,200 | 1,350 | 571 | 1,725 | Ø50 |
| 1,000 | 1,875 | 1,500 | 1,686 | 714 | 2,155 | Ø62 |
| 1,080 | 1,915 | 1,530 | 1,686 | 722 | 2,200 | Ø62 |
| 2,000 | 2,363 | 1,890 | 2,124 | 900 | 2,715 | Ø74 |
| 3,000 | 2,700 | 2,160 | 2,430 | 1,028 | 3,105 | Ø90 |
| 4,000 | 2,975 | 2,380 | 2,676 | 1,133 | 3,420 | Ø100 |
| 5,000 | 3,250 | 2,600 | 2,922 | 1,238 | 3,735 | Ø110 |
| 7,000 | 3,575 | 2,860 | 3,216 | 1,360 | 4,110 | Ø117 |
| 9,000 | 3,950 | 3,160 | 3,555 | 1,504 | 4,543 | Øl35 |
| 10,000 | 4,100 | 3,280 | 3,690 | 1,561 | 4,715 | Ø140 |
| 12,000 | 4,490 | 3,575 | 4,030 | 1,695 | 5,320 | Ø145 |
| 13,500 | 4,670 | 3,720 | 4,195 | 1,765 | 5,535 | Ø150 |
| 15,000 | 4,845 | 3,875 | 4,355 | 1,830 | 5,735 | Ø150 |
| 18,000 | 5,140 | 4,080 | 4,610 | 1,940 | 6,080 | Ø160 |
| 20,000 | 5,330 | 4,260 | 4,790 | 2,010 | 6,310 | Ø170 |
| 22,500 | 5,490 | 4,360 | 4,905 | 2,060 | 6,470 | Ø180 |
| 25,000 | 5,740 | 4,590 | 5,106 | 2,165 | 6,795 | Ø180 |
| 27,500 | 5,980 | 4,785 | 5,385 | 2,245 | 7,095 | Ø180 |

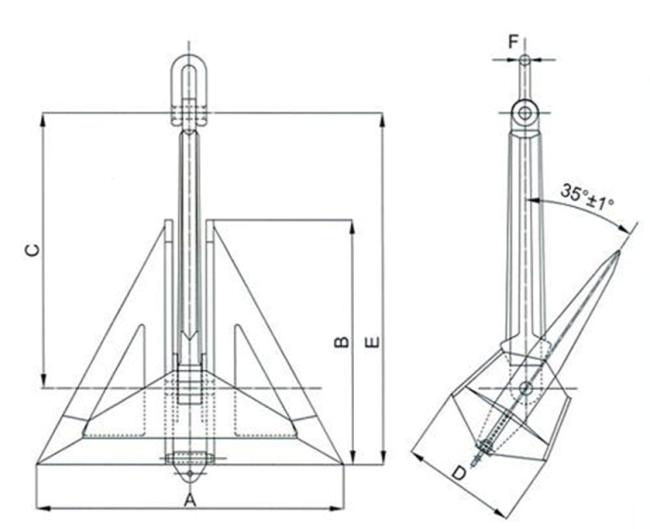

Drawing of Welding Type High Holding Power Flipper Delta Anchor For Offshore Anchor And Anchor Chain
