Fabrication Services Casting Services

Casting Iron Casting Steel Mushroom Anchor For Small Craft Anchor And Anchor Chain

Price Negotiable
Price: Based on quotation
MOQ: 1 Unit
Delivery Time: Based on project requirements
Brand: Zhongyuan Marine Equipmen
Product Description

Casting Iron Casting Steel Mushroom Anchor For Small Craft Anchor And Anchor Chain



Description:

Generally speaking, mushroom anchors are used in a softer, muddy bottom.The cast iron mushroom anchor is coated with PVC or PE and has a large eye for tying off the rope or connecting to a chain. Holes in the base of the anchor makes pulling through water easier. Mushroom anchors are perfect for smaller boats that anchoring in the mud or weedy bottoms. It is recommended in soft conditions and for light duty. Mushroom anchors perform well for small craft, Personal Water Craft (PWC), Canoes, or as the second anchor on larger boats. Mushrooms are also perfect as a drag anchor for fishing in current, or for holding small buoys and markers. The anchors are of high quality and good stability. The weight of the Anchor is 50kgs-5,00kgs. The Mushroom Anchors can be supplied with certification from any of the major classification societies.



Main Technical Specifications:

  1. Application: Buoy, light boat, beacon boat, wood bridge etc.
  2. Material: Casting Steel, Casting Iron, Stainless steel
  3. Weight: 50-500KG
  4. Surface Treatment: Hot dip galvanized, Polished, Black bitumen paint, anti-rusting paint or customized
  5. Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc.

Main Technical Parameters:

Weight
(lbs)
A
(mm)
B
(mm)
C
(mm)
50 Ø430 115 680
100 Ø550 180 802
150 Ø655 210 968
250 Ø730 245 988
350 Ø750 265 988
500 Ø750 330 988
Anchor Model Weight
(lbs)
Boat Size
(feet)

M25 25 Up to 10
M50 50 10-14
M75 75 14-16
M100 100 16-18
M150 150 18-20
M200 200 20-24
M250 250 25-29
M300 300 30-32
M400 400 35-37
M500 500 37-39

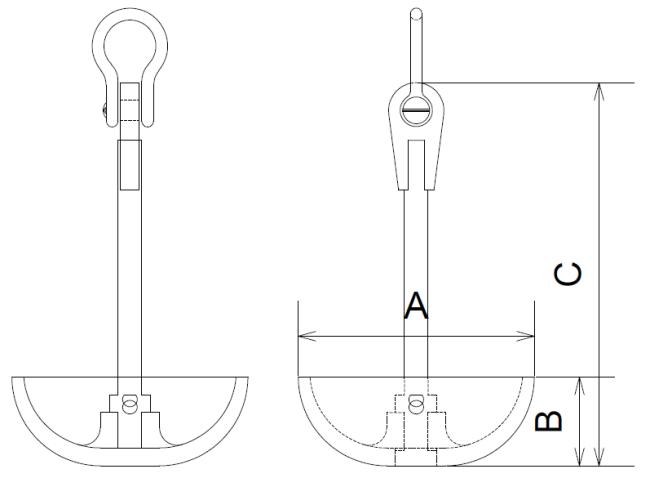

Drawing Of Casting Iron Casting Steel Mushroom Anchor For Small Craft Anchor And Anchor Chain
