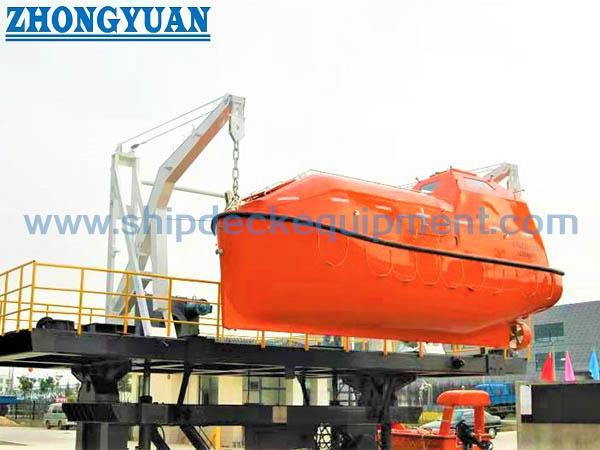

FRP Totally Enclosed Lifeboat Ship Life Saving Equipment
FRP Totally Enclosed Lifeboat Ship Life Saving Equipment
Description
This boat is designed in accordance with 1996 amendments to SOLAS 1974, and LSA Code amendment by MSC218(82) and MSC81(70) amendment by MSC226(82), and MSC.272(85), MSC320(89), MSC321(89) The space between the outer hull and the inner section are buoyancy tanks and filled with polyurethane hard foam.
Main Technical Specifications:
Classification Certificates: MED(B+D+DOC), MED(B+F+DOC), CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc.
| No. | Item | Description |
| 1 | Boat type | Normal type Totally enclosed lifeboat and Rescue boat Model: JY-QFP-6.0A |
| 2 | Dimension | Length: 6000 mm Length over all 6070 mm Breadth: 2300 mm Breadth over all 2370 mm Depth: 1100 mm Height max. 3225 mm Hook span: 5650 mm |
| 3 | Material | Hull: Glass fiber reinforced Polyester Buoyancy. The space between the outer hull and the inner section are buoyancy tanks and filled with polyurethane hard foam. |
| 4 | Colour | Hull outside: Ge/coat resin with orange color. Hull in side: Painted in grey white. |
| 5 | Number of persons | Life boat: 25 Persons Rescue boat: 6 Persons |
| 6 | Engine |
This life boat is equipped with a 2-cylinders ,water cooled diesel engine (Forced water cooling with a keel cooler) Starting system: Electric start Cooling fresh water: The cooling system of the engine is closed water cooling system Speed: Not less than 6 knots and satisfy with the requirement of LSA. |
| 7 | Fuel oil and tank | Capacity for 25 hours continuous operation at the speed 6 knots. Capacity: 200 liters Use fuel oil: BS 2869 CLASS A or its equivalent. Tank material: Stainless steel |
| 8 | Lub. Oil | Quantity. Oil pan - 3.5 liter AP/ service grade: CC or higher Reverse reduction gear 1.1 liter SAE viscosity grade: 15W 40 |
| 9 | Identification | 1) Followings shall be described on the identification plate. Type of boat, Principal Dimensions, Full loaded Weight, No. of Person, Serial No., Date of Completion Name of Manufact 2) Ship's name and port registry shall be marked on the both side of bow outside. 3) Ship's name or call sign and boat number shall be marked on top side. 4) Ship's size and number of person shall be marked on the both side of stern side. 5) The retro-reflective tapes shall be fitted on the top and side enclosure. 6) The symbols of lifesaving appliances shall be fitted in the vicinity operation position. Secure hatches, Fasten seat belts Start engine, Lower life boat to water Lower rescue boat to water Release falls |
Drawing of FRP Totally Enclosed Lifeboat Ship Life Saving Equipment
