Description
Engineering ship's Fairlead is widely applicable to offshore, engineering barge, dredgers, crane ships, piling boats and other vessels. It is produced according to the latest standard CB*3015. All fairleads obtain the certificates of quality. Type B engineering ship fairleads has 2 vertical rollers,1 bottom & 1 upper horizontal rollers. Please feel free to contact us for more information.
Main Technical Specification:
- Standard: CB* 3015-83
- Type: Type B, 2 vertical rollers, 1 bottom & 1 upper horizontal rollers
- Roller diameters: 100mm to 300mm;
- Applications: dredgers, crane ships, piling boats and other engineering vessels;
- Materials: C-Mn Steel, Mild Steel, Stainless Steel
- Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available.
- Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA.
Main Technical Parameter:
| Roller Dia. D |
Horizontal Roller Dia. D1 |
Applicable Steel Wire Rope Dia. Φ |
L | B | H | b | h1 | h2 | l | d |
| 100 | 85 | 19.5 | 540 | 340 | 240 | 250 | 220 | 50 | 200 | 22 |
| 150 | 120 | 26 | 760 | 460 | 340 | 340 | 320 | 65 | 290 | 26 |
| 200 | 150 | 37.5 | 980 | 580 | 440 | 430 | 410 | 80 | 380 | 32 |
| 250 | 200 | 176 | 1220 | 740 | 550 | 540 | 500 | 110 | 480 | 39 |
| 300 | 250 | 370 | 1460 | 900 | 675 | 650 | 590 | 135 | 580 | 39 |

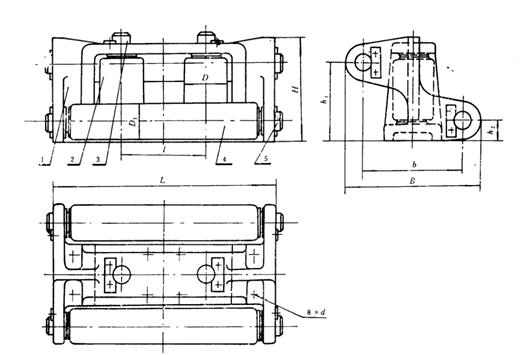

Drawing of CB 3015 Type B Four Steel Rollers Marine Fairlead For Engineering Vessel Ship Towing Equipment
