Electric Driven Double Drum Steel Wire Rope Reel CB3048 Type As Ship Deck Equipment

Price Negotiable

Price: Based on quotation

MOQ: 1 Unit

Delivery Time: Based on project requirements

Brand: Zhongyuan Marine Equipmen

Product Description

Electric Driven Double Drum Steel Wire Rope Reel CB3048 Type As Ship Deck Equipment

Product Description

CB3048 type As reel is designed for reel steel wire ropes. It is driven by electric motor on the common base structure. It is controlled by an electric motor in the middle of the drum and crew can use handle to operate through the worm gear reducer when there is no electric power. Type As has two drums.

Main Technical Specifications:

Type Model: As26, As32,
Max. Diameter of Steel Wire: 26~32mm;
Electric motor RPM: 1350/410 min-1
Drum Storage Capacity of Steel Wire Length: 210-220m;
Material: Stainless Steel and Mild Steel;
Sa2.5 Sandblasting and Anti-corrosive epoxy Painting; Polished
Maker or Classification Certificates
Can Meet Customer’s Special Requirements;

Main Technical Parameters:

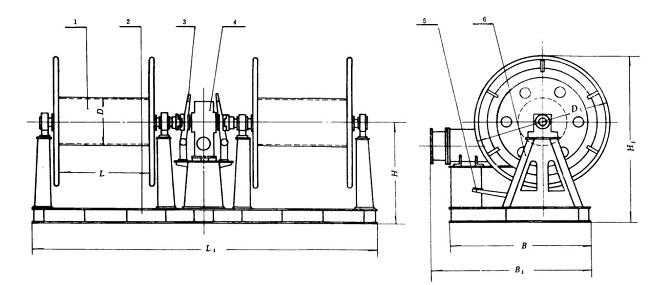

Type Mode	Steel Wire Max. Dia. (mm)	Steel Wire Length (m)	Motor Power (kw)	Motor RPM Speed (min¯1)	Drum Rope Speed m/min 1350 Min¯1	Drum Rope Speed m/min 410 Min¯1	External Dimension LxBXH (mm)	Weight (kg)
As26	26	220	4.3/1.7	1350/410	56	17	2345 x 1360 x 1175	773
As32	32	210	4.3/1.7	1350/410	60	18	2525x1450x1330	820
