304 Stainless Steel Open Link Anchor Chain For Yacht Anchor And Anchor Chain
Price:
Based on quotation
MOQ:
1 Unit
Delivery Time:
Based on project requirements
Brand:
Zhongyuan Marine Equipmen
Product Description

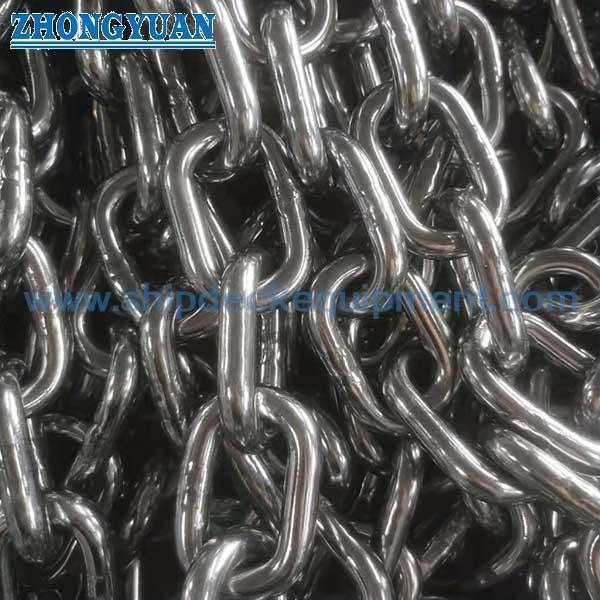

304 Stainless Steel Open Link Anchor Chain For Yacht Anchor And Anchor Chain
Description
Stainless steel open link anchor chain is for yacht. We supply 304, 316 stainless steel yacht anchor chain. They can be stud link and open link.
They are butt flash welded with shining surface treatment. It has good anti corrosive property and high strength. The chain can be supplied with stud welded. Chain size is from 5mm to 20mm.
Main Technical Specifications
- Chain Diameter: 5mm to 20mm
- Grade: 1, 2 ,3
- Length per shot: Customized
- Type: Open Link, stud link
- Construction: Flash butt welded
- Grade: SUS 304, 316
- Test: Material property test, heat treatment, Proof load test and Break load test.
- Surface treatment: Pickling and passivating
- Classification Certificates: Third party inspection certificate and Mill Certificate.
Main Technical Parameters:
|
Nominal Size D |
L | B | Weight |
| MM | MM | MM | (KG/M) |
| 5 | 30 | 20 | 0.44 |
| 6 | 31 | 21 | 0.65 |
| 7 | 37 | 24 | 0.88 |
| 8 | 38 | 27 | 1.18 |
| 9 | 39 | 31 | 1.55 |
| 10 | 42 | 35 | 1.95 |
| 12 | 54 | 20 | 2.77 |
| 14 | 60 | 50 | 4 |
| 16 | 70 | 60 | 5 |
| 18 | 80 | 70 | 7 |
| 20 | 90 | 75 | 8 |

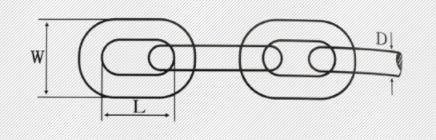

Drawing of 304 Stainless Steel Open Link Anchor Chain For Yacht Anchor And Anchor Chain
