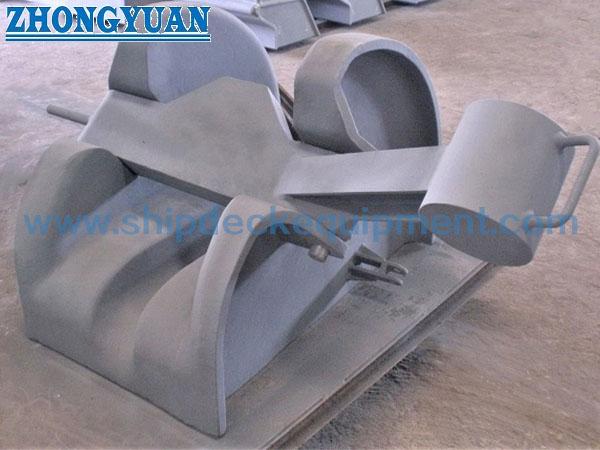

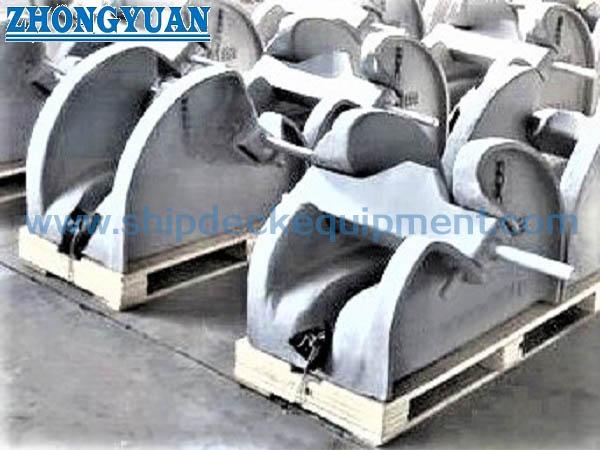

CB* 286 Cast Steel Lever Type Anchor Chain Stopper Ship Mooring Equipment

Description

CB* 286 cast steel lever type anchor chain stopper is mounted by welding on the foundation or on the forecastle deck. The body is made of high quality casting steel. The bar type chain stopper uses the bar to clamp the anchor chains and prevents it from movement during ship sailing. Counterbalance weights is alternative design which is most suitable for larger and heavy bar to make the operation easily by the ship crew. This type of chain stopper is mainly used on boat and inland waterway ships. It is simple structure and easy to operate. We can produce all types of chain stoppers and provide customized service. For more information, please feel free to contact us.

Main Technical Specification:

1. Technical Standard: CB*286-84
2. Type: Cast lever type
3. Chain Size: 12.5-68mm
4. Materials: Mild Steel, C-Mn Steel, Stainless Steel, Casting Steel, Nodular Cast Iron, Steel Forging,
5. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, Polished, customized surface treatment available.
6. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
7. Can be Customized as clients need.

Main Technical Parameters:

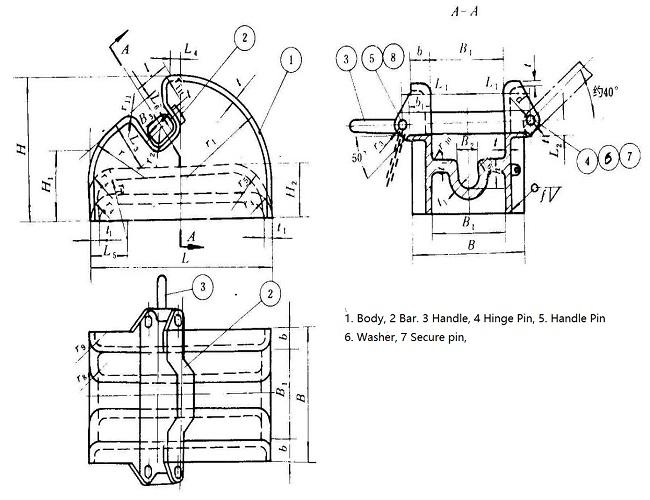

Drawings of Cb* 286 Cast Steel Lever Type Anchor Chain Stopper Ship Mooring Equipment
