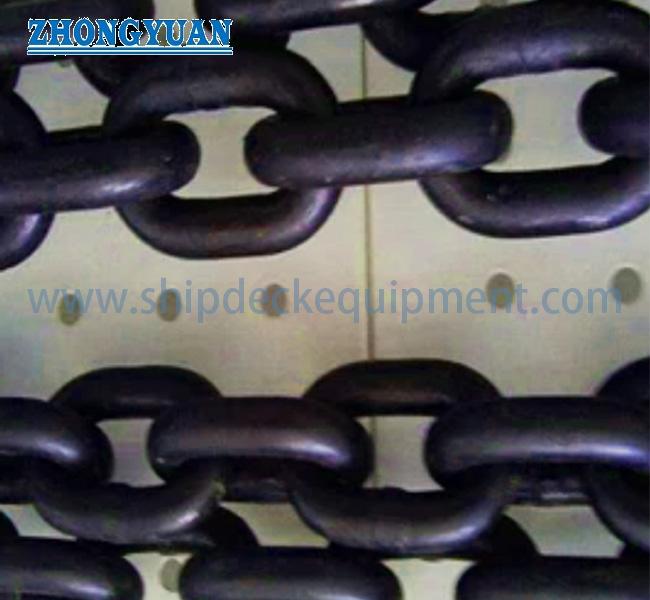

Chain DIN5685 With German Standard

Description:

Chain din 5685 with German standard are a sort of welded, round steel chain with long or short-length links that are neither calibrated nor tested. These chain are made to German Standard. The material of chain is in line with DIN 17151. The chain are not suitable for lifting applications, nor being subjected to static loads. There are two types of the chain din 5685, A (short) and C (long). Finishes of chain din 5685 are self-colored, black painted, bright zinc painted, and hot dip galvanized.

Main Technical Specifications:

Type:Cranked Link Chain
Material:Alloy Steel, High Tensile, Heat Treated.
Surface Treatment:Zinc Plated, Black Painted, Hot Dip Galvanized, Powder Coated
Structure:Flash Butt Welded Chain
Feature:Heat Resistant
Usage:Drag Chain
Color: Self Color, Red ,Green, or as to your request
Application: Ship,Iron And Steel Industry, Petroleum Chemical Industry, Coal Mine

Main Technical Parameters:

Size(d)	Inside Length (t)	Outside Width(b)	Weight Per 100m	Working Load	Breaking Load	Type Of Link
mm	mm	mm	kg	n	n
2	12	8	7	500	1250	A
	22		6			C
2.5	14	10	11	750	2000	A
	24		10			C
3	16	12	16.5	1120	2800	A
	26		15			C
3.5	18	14	22.5	1500	3850	A
	28		20			C
4	19	16	30	2000	5000	A
	32		27			C
4.5	20	18	39.5	2500	6300	A
	34		35			C
5	21	20	50	3150	7750	A
	35		43			C
5.5	23	22	60.5	3800	9500	A
	38.5		52			C
6	24	24	73	4500	11500	A
	42		63			C
6.5	26	26	86	5400	13500	A
	45.5		74			C
7	28	28	100	6000	15000	A
	49		86			C
8	32	32	130	8000	20000	A
	52		110			C
8.5	34	34	149	9000	22500	A
	56		125			C
9	36	36	165	10000	25000	A
	59		141			C
10	40	40	205	12500	31000	A
	65		175			C
11	44	40	250	15000	38000	A
	72		211			C
12	48	48	290	18000	45000	A
	78		255			C
13	52	52	345	21200	53000	A
	82		295			C
