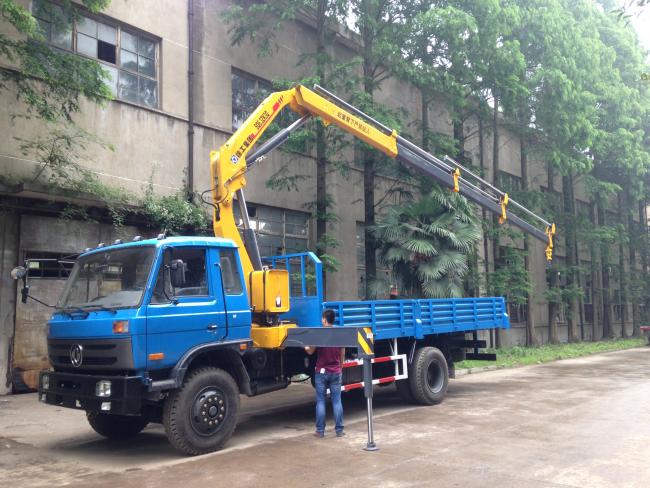

6.3t 140kw Truck Mounted Telescopic Crane SQ6.3ZK3Q
Price:
USD39500
MOQ:
1 unit
Delivery Time:
30days
Brand:
XCMG
Product Description
XCMG SQ6.3ZK3Q Truck Mounted Crane General Feature
The unique design of three-floating bridge structure reduces the stress which equipment added to truck crane.
All rotation technology, smooth and high-speed rotary, efficient and convenient operation.
The key components of the hydraulic system are manufactured by introduce new technology which makes the operation’s safety and reliability
XCMG SQ6.3ZK3Q Truck Mounted Crane Technique Specifications
| Model | SQ6.3ZK3Q | Unit | ||||
| Max Lifting Moment | 13.23 | t.m | ||||
| Max Lifting Capacity | 6300 | kg | ||||
| Recommend Power Needed At Recommend Oil Flow | 18 | kw | ||||
| Max Oil Flow of Hydraulic System | 25 | L/min | ||||
| Rated Pressure Of Hydraulic System | 28 | MPa | ||||
| Oil Tank Capacity | 90 | L | ||||
| Rotation Angle | (360°)All Rotation | ° | ||||
| Crane Weight | 2226 | kg | ||||
| Installation Space | 1050 | mm | ||||
| Overall Dimensions Specification | ||||||
| Overall Dimension | 9000×2470×3560, | mm | ||||
| Container Dimension | 5800/5300×2294×550 | mm | ||||
| Chassis Specification: | ||||||
| Model of Chassis | EQ5161GFJ7 | |||||
| Manufacture | Dongfeng Automobile | |||||
| Emission Standard | Europe 3 | |||||
| Fuel Type | Diesel | |||||
| Engine Type | C u m m ins 190HP | |||||
| Tyre Wheel Base Specification: | ||||||
| Number of Chassis Axle | 2 | |||||
| Number of Tyre | 6 | |||||
| Chassis Wheel Base | 4550,5000 | mm | ||||
| Chassis Wheel Track | 1940/1860 | mm | ||||
SQ6.3ZK3Q Lifting capability diagram
| Working radius (m) | 2.1 | 4.54 | 6.3 | 8.11 | 9.92 |
| Lifting capacity (kg) | 6300 | 2700 | 1700 | 1200 | 850 |
