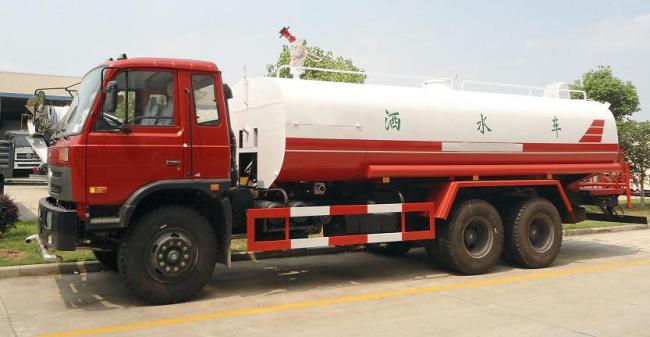

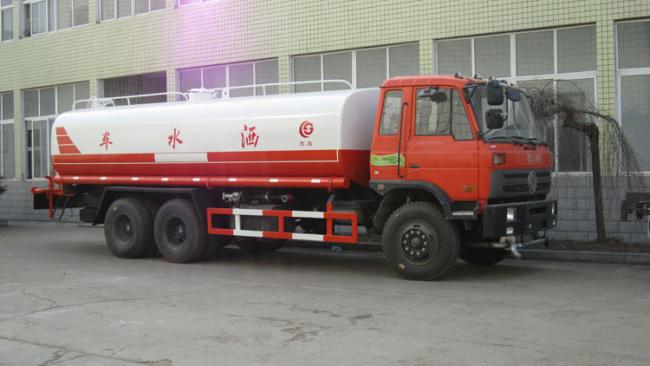

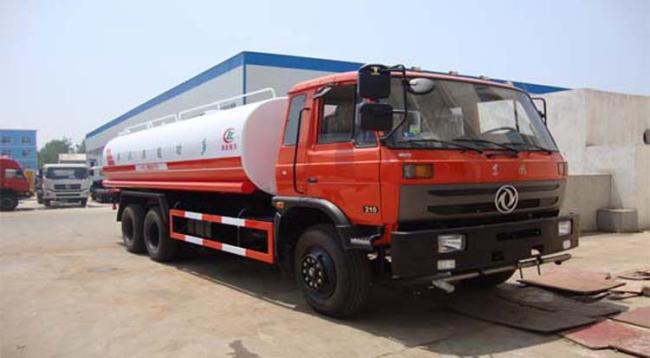

Dongfeng 6x4 20000L 210hp Water Bowser Truck Double Back Bridge
XDEM Dongfeng 6x4 20000L 210hp double back bridge Water Bowser Tanker Truck
| Whole Truck Main Technical Parameter | |||
| Product Name |
DONGFENG Water Truck |
Product Brand | DONGFENG |
| Wheelbase(mm) | 4350+1300 | Overall Dimension(L*W*H)(mm) | 9950×2490×3350 |
| Front/ rear suspension(mm) | 1245/3055 | Tank volume(L) | 20000 |
| Gross weight (kg) | Approx 29000 | Axle number | 3 |
| Curb weight(kg) | Approx 9005 | Traction Type: | 6*4 |
| Approach/ departure angle (° ) | 28/10 | Max Speed (km/h) | 85 |
| Cab capacity | 3 | Cab Type | Flat Proof, one and half row |
| Chassis Technical Parameter | |||
| Chassis Model: | EQ5251GYYKJ | Chassis manufacturer: | DONGFENG Motor Co., Ltd |
| Gear box | 8 speed forward and 1 reverse | Transmission type: | Manual |
| Steering Type | Power steering/LHD | Brake System | Air brake, double circuit |
| Leaf Spring number: | 8/13,8/12 | Drive axle | DONGFENG Dena |
| Number of Tire | 10 with a spare | Tire size/type | 11.00-20,11.00R20 |
| Engine specification | |||
| Engine Model: | B210 33 | Engine Brand | DONGFENG Cummins Engine Co., Ltd |
| Fuel type: | Diesel | Displacement(ml) | 5900 |
| Emission stand | Euro 3 | Power(kw) | 155(210hp) |
| Warranty | 12 months, from the date of supply | ||
| Equipment and parameter | 1 Adopt 5mm good quality carbon steel tank, equipped with one pneumatic valve that can control overall waterway | ||
| 2. Equipped with front(rear, side)sprinkler(sprinkling width>14m ) | |||
| 3. Equipped with rear working platform with water cannon (range>28m) | |||
| 4. Equipped with CLW pump(suction lift>6m) | |||
| 5. Equipped with fire valve, water valve, and filter gauze | |||
We Nanyang Xinda Electro-Mechanical (XDEM), is an senior international trading company mainly dealing construction machinery, which was set up and supported by local dealer ship of XCMG, LIUGONG, we continually introduce Chinese excellent construction machinery enterprises and their products to international markets, such as XCMG, LIUGONG, SANY, YTO etc. We not only make more international customers know and approbate our products, but also gradually build up friendship with construction machinery customers all over the world.
We have the largest-size factories for construction machinery and industrial equipments in Asia. Our factories have the world-class modern facilities and automated manufacturing process for production. Our factories are mainly located in Jiangsu, Henan, Hubei provinces in China.
