High Sounds Alarm Piezo Buzzer Speaker DC 24V Prompt Tone Buzzer For Motorbike
Price:
negotiable
MOQ:
1000PCS
Delivery Time:
10~15days
Brand:
TAIMI
Product Description
High sounds alarm buzzer speaker DC 24V Device motorbike speaker prompt tone buzzer
| Part No:TM-4218-60LB-WJ320 | ||||
| 1 | Rated Voltage (VDC) | 60 | ||
| 2 | Operating Voltage (VDC) | 40～72 | ||
| 3 | *Sound Output at 10cm (dB) | ≥110 Power on continuously for less than 10 seconds | ||
| 4 | *Current Consumption (mA) | ≤100 | ||
| 5 | Resonant Frequency (Hz) | Electric vehicle horn sound | ||
| 6 | Operating Temperature (℃) | -20～+50 | ||
| 7 | Storage Temperature (℃) | -30～+60 | ||
| 8 | Housing Material | Black ABS/PPO | ||
| *Applying rated voltage | ||||
|
Soldering process |
Soldering Parameter | |||
| Temp.( ℃) | Time(Sec.) | Times | ||
| Reflow soldering | 245±15 |
180℃预热 40~70秒 245℃ 3秒 above 180℃ time 40~70 |
3 | |
| Wave soldering | 255±5 | 4~6 | 2~3 | |
| Manual soldering | 350±10 | 2~5 | 2~3 | |
| ★接插件 | ||||
| Remark:★ TAIMI Instance Soldering Process | ||||
| DIMENSIONS (UNIT: mm) Tolerance: ±0.5mm Except Specified | ||||
|
|
||||

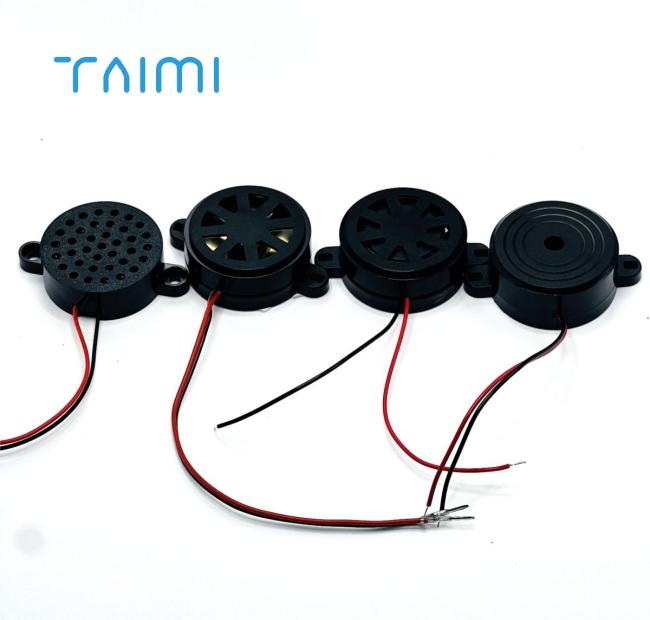

Electronic Alarm Buzzer
- The structure of product is compact that provide excellent reliability and practicality
- This item is a piezo electronic alarm buzzer, well made of premium material,this item is durable and practical use, inside is a piezo plus the driver circuitry
- This buzzer features low voltage,low power consumption and high voice pressure,ideal product for industrial use
- This module is ideally suited to adding sound to your project,long service life,small size satisfies your need
Specializing in this field for 20 years.Please connect us get more details:
