PLC control 100kg/hr Protein Bar Extruder Machine Production Line
PLC control 100kg/hr Protein Bar Extruder Machine Production Line
Introduction of Protein bar extruding machine protein bar machine maker

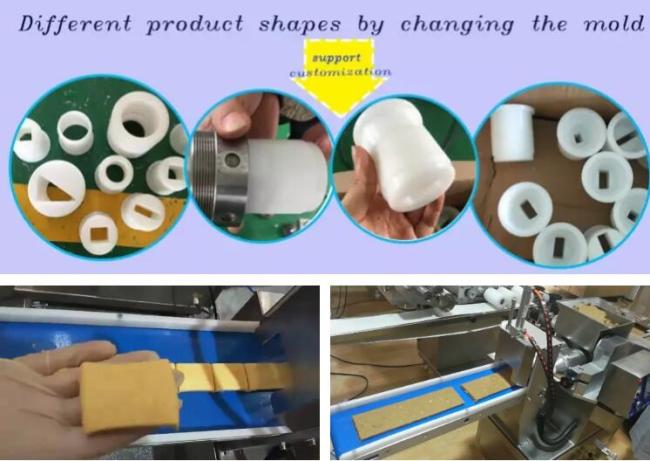

Protein bar extruding machine protein bar machine maker is specially used to make protein bar product. Different shapes can be made by changing the die. Controlled by PLC and touch screen with friendly interface and fault display function. The advanced Cold Extrution techonolgy is our patent products, which is ahead of other companies. We have 3 kinds of protectors: overload, overcurrent and overheat, which is used to keep your security and prolong machineries' service life.
Standard Configurations:
| Capacity | 100kg/hr |
| Power | 22KW |
| Hopper Volume | 65L |
| Dimension | 4.3X 0.9X 2m |
| Workers Needed | 2-3 |
Flow Chat of Protein bar making process by Protein bar extruding machine protein bar machine maker
Machine details:

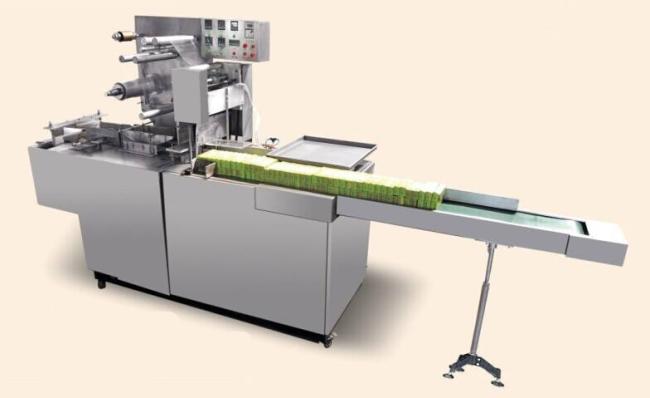

Option packing machine
Main Features

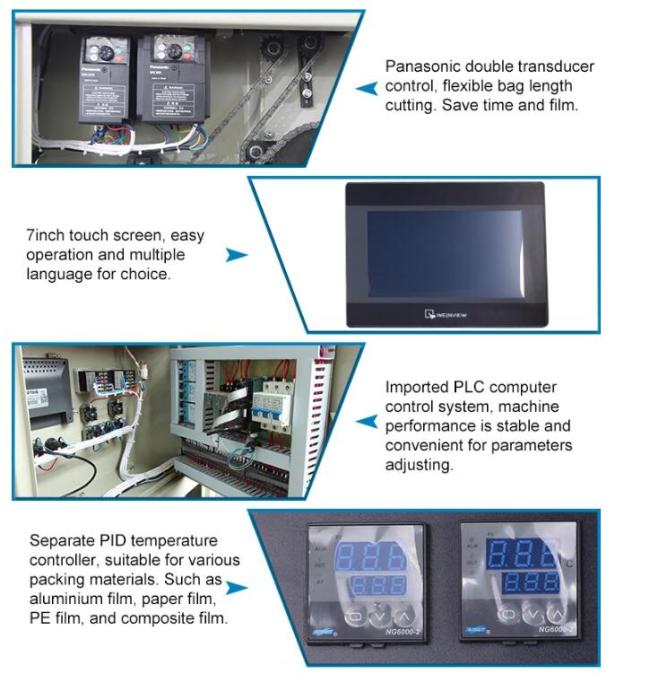

1. Panasonic double transducer control, flexible bag length cutting. Save time and film.
2. 7inch touch screen, easy operation and multiple language for choice.

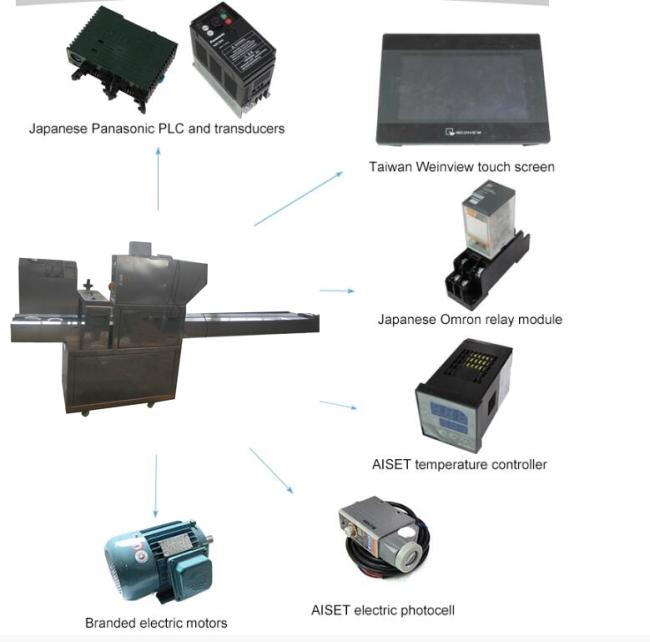

3. Imported PLC system, machine performance is stable, convenient for parameters adjusting.
4. Self diagnosis failure function, machine error can be clearly displayed.
5. Separate PID temperature controller, suitable for various packing materials

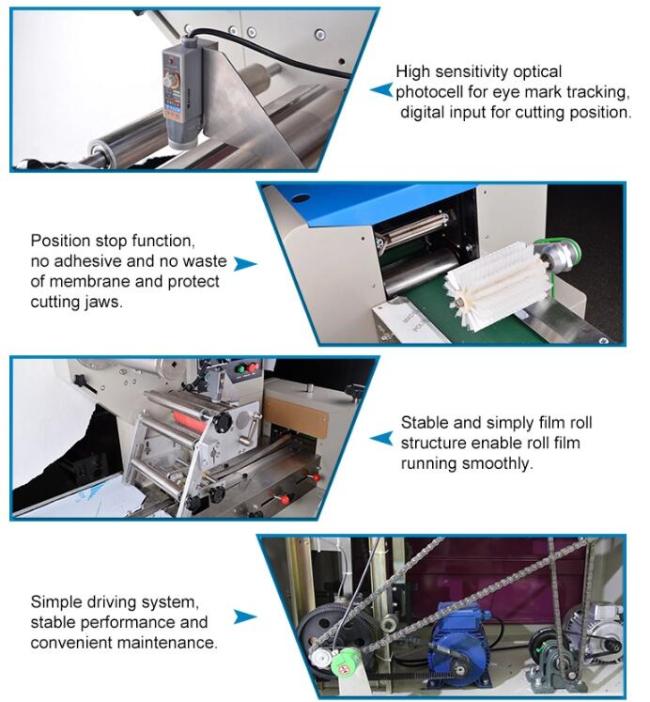

6. High sensitivity optical photocell for eye mark tracking, digital input for cutting position.
7. Position stop function, no adhesive and no waste of membrane and protect cutting jaws.
8. Simple driving system, stable performance and convenient maintenance.
9. According to product, the input conveyor can use pusher, belt or film for transportation.
Technical Parameter
| Item No. | SRB-280 | SRB-320 | SRB-450 |
| Power | 220V,AC,50/60HZ,3KW | 220V,AC,50/60HZ,3KW | 220V,AC,50/60HZ,3.5KW |
| Capability* | 30-200PPM | 30-200PPM | 30-180PPM |
| Maxi Film Width | 280mm (11.02") | 350mm (13.75") | 480mm (18.90") |
| Bag Size*(L*W*H,mm) | 60-280,20-100,5-40 | 60-350,30-120,5-60 | 80-350,30-200,5-70 |
| Machine Finishing | Painted | Stainless Steel | Stainless Steel |
| Machine Dimensions | 4430*670*1520 | 4400*870*1520 | 4400*940*1520 |
* The capability and bag size depend upon the type and nature of the products to be wrapped as well as the type and quality of the wrapping materials and the feeding system.
• Independent temperature controllers for fin and end seals.
• 2 Pairs of rollers for longitudinal film pulling and sealing.
• The bag length is regulated in line with the product length via a photoelectric sensor.
Optional Accessories
| Date Coder | End seal gusset | Automatic Punching Device |
| In-feed carrier block | Auto labeling device | Deoxidizer chute device |
| Gas flushing device | Alcohol spraying device | Cards Auto feeder |
horizontal packing machine have been widely used in several fields throughout the world, such as food, pharmaceuticals, cosmetics, medical supplies, industrial foods, rubber goods, sundry goods, sporting goods, etc.
1. Standard Pillow Style Bag
2. Pillow Style Bag With Hole Punch / Euro Slot
3. Gusseted Pillow Style Bag
