Food grade SS304 Small Cake Pastry Packaging Machine
Price:
Negotiation
MOQ:
Negotiable
Delivery Time:
18-25 working days
Brand:
OEM
Product Description
Food grade SS304 Small Cake Pastry Packaging Machine

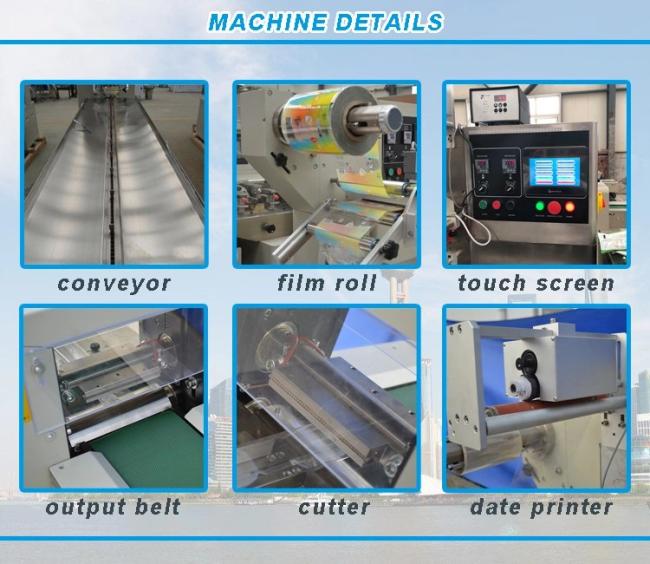

Standard features:
3 independent motors (Conveyor, center sealing and end sealing)
Motion controller for quick response to various commands
Accurate positioning
Digital temperature control
Food grade SS304 contact parts
Touch screen
Special features:
All control in one touch screen, user-friendly and easy operation
Empty bag prevention, no product no bag
Product cutting prevention, machine will stop once cutter cuts the product
Memory function, can store 99 groups of package parameters (product position, packing speed, bag length)
No limit for product length
| Output | Up to 200 products per minute Up to 40m/min film speed Product and film characteristic may affect machine output |
| Size Range | |
| Package cut-off length | 50-6000mm |
| Product width | max.140mm |
| Product height | max.60mm |
| Packaging Material Reel | |
| Reel diameter | ≤300mm |
| Core diameter | ≤75mm |
| Packaging material width | max.300mm |
| Weight | max. 25KG |
| Connections | |
| Voltage | 220V,50HZ |
| Power usage | 3KW |
| Machine weight | 600kg |
| Machine dimensions | L3900mm*W850mm*H1500mm |
| Blade cut type | Rotary cutter |
| Motor configuration | Dual servo |
| Optional Device | date printer, auto feeder, gas charger, etc. |
