3 Phase Type 2 Plug 400Volt Commercial EV Charging Station
Price:
USD 250-450/SET
MOQ:
1
Delivery Time:
28 Days
Brand:
Joint
Product Description
3 Phase 22KW Type 2 Plug 32Amp 400Volt MID AC Commercial EV Charging Station

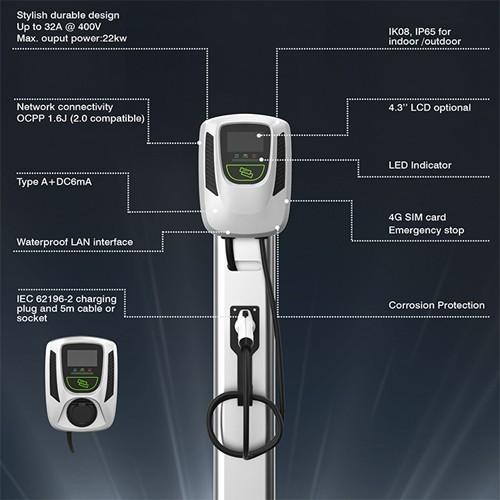

Wallbox Body:
1. LCD Screen
2. Automatic error correction
3. Automatic reconnection
4. Waterproof
5. Temperature monitoring system
6. Safe and fast charging
Charging Plug:
1. Silver plating treatment
2. Special reed structure
3. Temperature monitoring
Environmental TPU Cable
1. International environmental standard
2. Long service life
EV Charger Station Features:
| Model Name | EVC10-07C1S | EVC10-07C1C | EVC10-22C1S | EVC10-22C1C | |
| Input Rating | 230±10%Vac (One Phase) | 400±10%Vac (Three Phase) | |||
| Frequency | 50Hz | ||||
| Input Current | 32A | ||||
| Output Current | 32A | ||||
| User Authentication | RFID (ISO 14443) | ||||
| External | LAN (optional) + 4G (optional) or Wi-Fi (optional) | ||||
| Internal | OCPP 1.6 JSON (OCPP 2.0 compatible) | ||||
| Operating Temperature | -22˚F~122˚F(-30˚C~50˚C) | ||||
| Humidity | Max. 95% RH | ||||
| Altitude | ≦ 2000m | ||||
| IP Level | IP 54 | IP65 for box | IP 54 | IP65 for box | |
| Dimension(WxDxH) | 350x250x175mm (13.8″x9.8″x6.9″) | 350x250x130mm (13.8″x9.8″x5.1″) | 350x250x175mm (13.8″x9.8″x6.9″) | 350x250x130mm (13.8″x9.8″x5.1″) | |
| Charging Outlet | One Socket | 5M Cable | One Socket | 5M Cable | |
| RCD | RCD TYPE B | ||||
| Charging Interface | Type 2 Plug | ||||
| Multiple Protection |
Over current, Under voltage, Over voltage, Residual current, Surge protection, Short circuit, Over temperature, Ground fault, Current leakage protection |
||||
