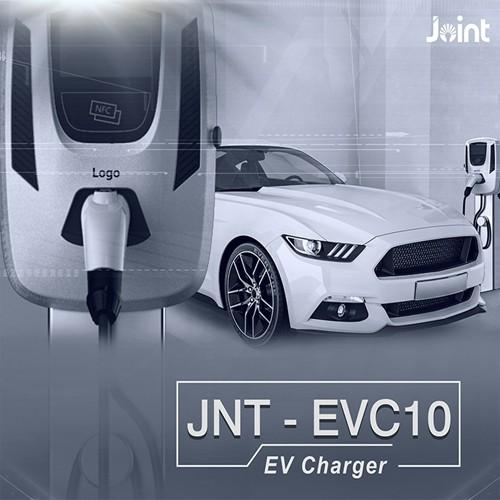

Mode 3 230VAC 32A EV Home Charging Stations
Price:
USD 350-450/SET
MOQ:
1
Delivery Time:
28 Days
Brand:
Joint
Product Description
OCPP 1.6J Home Commercial Use Mode 3 Home EV Charging Station EVSE
Specification
|
Model Name
|
EVC10-07C1S
|
EVC10-07C1C
|
EVC10-22C1S
|
EVC10-22C1C
|
|
Input Rating
|
230±10%(1- phase)
|
400±10%(3- phase)
|
||
|
Frequency
|
50Hz
|
|||
| Input Current |
32A
|
|||
| Output Current | 32A | |||
|
User Authentication
|
RFID (ISO 14443)
|
|||
|
External
|
LAN (optional) + 4G (optional) or Wi-Fi (optional)
|
|||
|
Internal
|
OCPP 1.6 JSON (OCPP 2.0 compatible)
|
|||
|
Operating Temperature
|
-22˚F~122˚F(-30˚C~+50˚C)
|
|||
|
Humidity
|
Max. 95% RH
|
|||
|
Altitude
|
≦ 2000m
|
|||
|
IP Level
|
IP54
|
IP65 for box
|
IP54
|
IP65 for box
|
| Dimension(WxDxH) |
350x250x175mm
|
350x250x130mm
|
350x250x175mm
|
350x250x130mm
|
|
Charging Outlet
|
One charging socket
|
5m charging cable
|
One charging socket
|
5m charging cable
|
|
RCD
|
Type A+DC6mA
|
|||
|
Charging Interface
|
IEC 62196-2 ,Type 2 Plug
|
|||
|
Multiple Protection
|
Over current, Under voltage, Over voltage, Residual current, Surge protection,
Short circuit, Over temperature, Ground fault, Current leakage protection
|
|||
|
Certificate
|
IEC 61851-1, IEC 61851-21-2
|
|||
Domestic EV-charger
Looking for home electric vehicle charging equipment and don't really know where to start? Don't worry, you're not alone. There are a lot of EV home charging stations available today and most people don't really know what features to look for in their search for the best home charging solution. Before we start, we need to clarify some terminology. Electric vehicle supply equipment, or "EVSE," is actually the proper term for what many call "EV chargers" or "EV charging stations." The reason "charging station" is not the proper term is because the actual charging equipment is built into the car, and the EVSE really just provides a safe supply of electricity to the vehicle. However, we've decided to use the term "charging station" or "charger" here because that's what most people recognize the equipment as. The electricity supply in Europe and most other parts of the world does not use a 120-volt supply as their standard household current like we do in North America. As such, there is no "level 1 charging" in Europe. Also, in Europe, the charging cable is often not tethered to the unit for level 2 charging, and thus, the equipment is very different than what is used in North America. Let's begin by explaining the different levels of home AC charging, as well as the two different connectors that are used.
![]()
