3.7v 50mah Lipo 401119 Lithium Ion Batteries For Medical Devices
3.7v 401119 Lipo 50mah Lithium Polymer Battery for medical device
1). Specification
|
Product Description:
|
|
Excellent safety performance: overcharge, overdiacharge, overload & over heat protections |
| Model | Lipo 50mah battery |
| Nominal voltage | 3.7v |
| vNominal capacity | 50mAh |
| Size | thickness × width × length (mm) |
| 4±0.5×11±0.5×19±0.5mm | |
| Advantage |
|
| Max charge current | 1C |
| Charging method | charge with constant current 1C to 4.2v,then charge with constant voltage 4.2v, till charge current less than 0.01C |
| Max discharge current | 2C |
| Discharge cut-off voltage | 3v, the over-discharge detection voltage of PCM |
| Operating environment | Charging, 0°C ~ 45°C ; 65±20%RH |
| Discharging, -20°C~60°C ; 65±20%RH | |
| Storage environment | -20°C~45°C |
| 65±20%RH | |
| storage for a long time(>3 months) and the storage condition shall be:<35°C;65±20%RH; | |
| CycleLife (100% Prime Capacity) : |
>1000times |
| Charging Attention | Charging current and charging voltage should be less than specified in the Product Specification. |
| The charger shall be designed to comply with Specification. | |
| It is dangerous that charging with higher current or voltage than Product Specification may cause damage to the cell electrical,mechanical safety performance. |

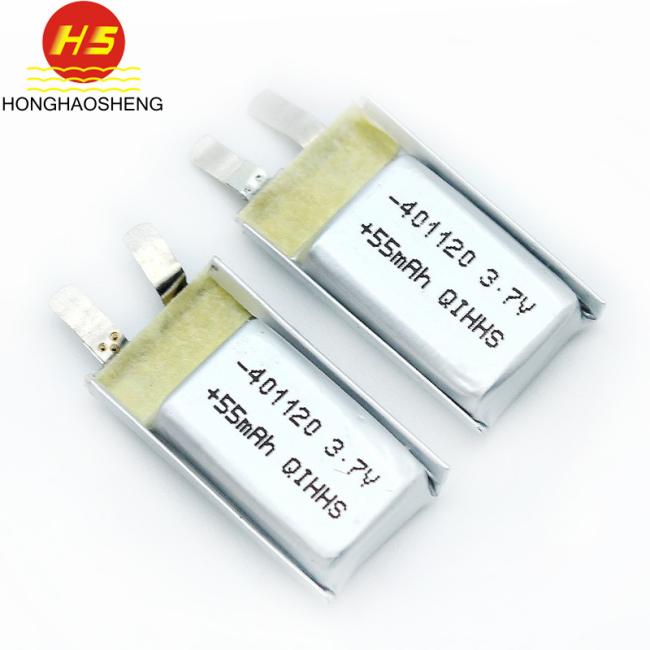

2). Lipo 50mah battery detailed picture:
3). Packaging&delivery
* The battery will be packed with antistatic bag,and less than 10KG/carton.
* Delivery time:samples:2-3days
bulk order:7-15days
4.) Welcome to visit our factory!
5). Other Battery Packs from our factory:
| NO. | Type | Model | Capacity | voltage | Size | Weight | Remark | ||
| mAh | 3.7V | T max | W Max | L max | Typical | ||||
| 2 | HHS-362040 | 362040P | 250 | 3.7V | 3.6mm | 20mm | 42mm | 4.3g | |
| 3 | HHS-502030 | 502030P | 250 | 3.7V | 5.0mm | 20mm | 37mm | 4.3g | |
| 4 | HHS-501835 | 501835P | 280 | 3.7V | 5.0mm | 18mm | 37mm | 5.6g | |
| 5 | HHS-701535 | 701535P | 300 | 3.7V | 7.0mm | 15mm | 37mm | 5.6g | |
| 6 | HHS-602030 | 602030P | 300 | 3.7V | 6.0mm | 20mm | 32mm | 5.6g | |
| 7 | HHS-552035 | 552035P | 350 | 3.7V | 5.5mm | 20mm | 37mm | 7.8g | |
| 8 | HHS-503030 | 503030P | 430 | 3.7V | 5.0mm | 30mm | 32mm | 8.7g | |
| 9 | HHS-602046 | 602046P | 500 | 3.7V | 6.0mm | 20mm | 48mm | 8.9g | |
| 10 | HHS-502560 | 502560P | 800 | 3.7V | 5.0mm | 25mm | 62mm | 15.7g | |
| 11 | HHS-803040 | 803040 | 900 | 3.7V | 8.0mm | 30mm | 42mm | 16.5g | |
| 12 | HHS-405080 | 405080 | 1800 | 3.7V | 4.0mm | 50mm | 83mm | 29.7g | |
| 13 | HHS-805060 | 805060P | 2600 | 3.7V | 8.0mm | 50mm | 63mm | 44.0g | |
| 14 | HHS-4655100 | 4655100P | 2900 | 3.7V | 4.6mm | 55mm | 103mm | 47.8g | |
| 15 | HHS-3578104 | 3578104P | 3300 | 3.7V | 3.5mm | 78mm | 107mm | 50.0g | |
| 16 | HHS-486789 | 486789 | 3300 | 3.7V | 4.8mm | 67mm | 92mm | 50.0g | |
| 17 | HHS-478398 | 478398P | 4500 | 3.7V | 4.7mm | 83mm | 101mm | 67.0g | |
| 18 | HHS-126270 | 126270P | 5000 | 3.7V | 12mm | 62mm | 73mm | 73.0g | |
