China 8ohm Coaxial PA Speaker for sale
China 8ohm Coaxial PA Speaker for sale
China 8ohm Coaxial PA Speaker for sale
China 8ohm Coaxial PA Speaker for sale
China 8ohm Coaxial PA Speaker for sale

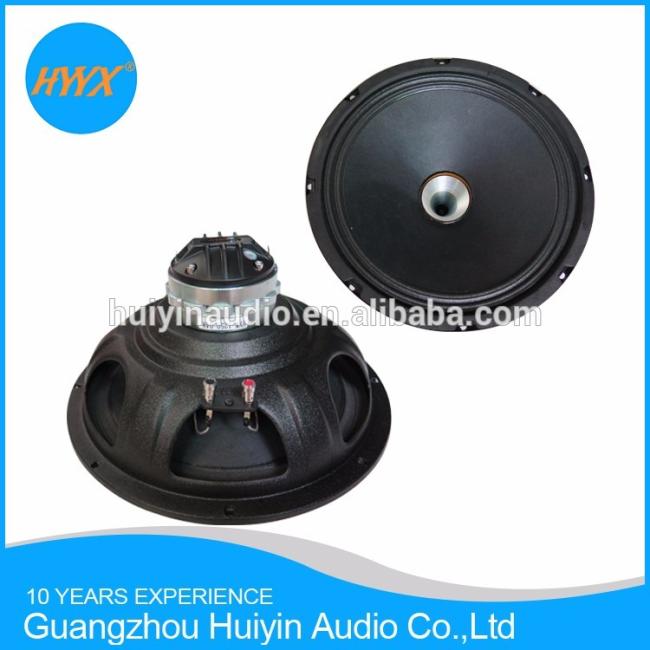

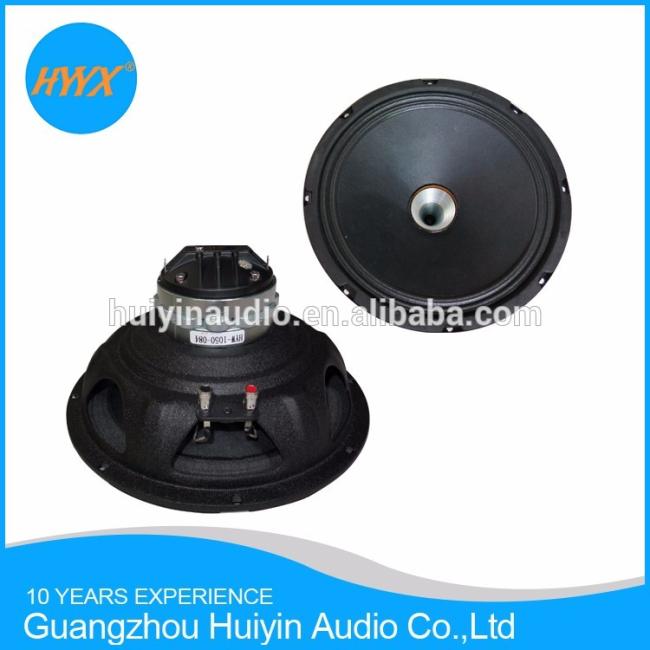

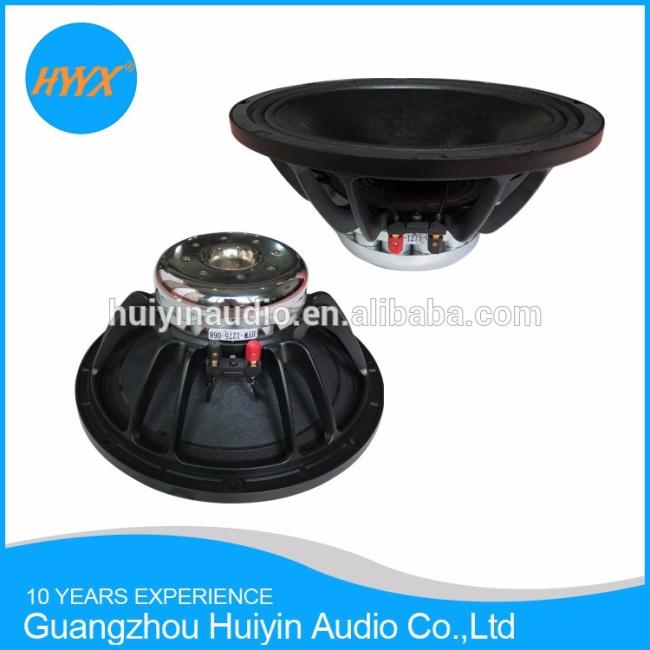

8ohm Coaxial PA Speaker

Price Negotiable
Price: $20.00 - $45.00 / Piece
MOQ: 10 Piece/Pieces
Delivery Time: Negotiable
Brand: HYYX
Product Description

6.5 inch coaxial speaker Portable speaker driver pa speaker high SPL 96dB light weight

Product Description

This 6.5 inch Neodymium coaxial Speakers offers outstanding efficiency , high sensitivity 96dB. Low weight  makes it suitable for Portable speaker system,  Guitar speakers  and other speaker system with limited weight .

Specification


Features :



1, 6.5 inch coaxial loudspeaker with 65-20,000Hz frequency response

2, 150Wrms power handling and 97dB sensitivity 1w/1m
3, 2 inch /50mm high temperature copper voice coil wound
4, Steel frame and neodymium magnet
5, Compact, lightweight neodymium compression driver
6, Ideal model for portable speaker system, Guitarspeakers and other speaker system with limited weight
7, More size for choice ( 5", 6.5" , 8" . 10", 12" and 15" )
Specification
Nominal diameter
160/6.5
mm/inch
Nominal impedance
8/4
ohm
Min impedance
5.2/3.6
ohm
Frequency response
65-20k
Hz
Magnet material
Neodymium

Sensitivity (1w/1m)
96
dB
RMS power handling
150
Watts
Continuous power handling
600
Watts
LF Voice coil diameter
50/2
mm/ inch
Winding material
Copper

Cone material
Paper

Surround material
Cloth

HF driver VC size
35mm/ 1.4 inch

HF driver diaphragm
Titanium

T/S Parameter
Fs
46.7
Hz
Re
5.2
Ω
Qes
0.33

Qts
0.32

Qms
10.7

Vas
32.9
L
Rms
0.6
kg/s
Cms
0.51
mm/N
Mms
22.6
gr
BI
10.2
N/A
Rp
114.6
Ω
Lp
58.1
mH
Cp
437.5
uF
Le
0.8
mH
Xmax
6
mm
Mounting information
Overall diameter
210/8.26
mm/inch
Bolt Circle diameter
198/7.75
mm/inch
Baffle Cutout diameter
184/7.24
mm/inch
Total  Depth
117/4 .6
mm/inch
Flange thickness
5/1.96
mm/inch
Shipping information
Net weight
1.7
KG
Shipping weight
2.3
KG
Shipping box
240x240x150
mm
