Steel Basket 2kg 99dB 10 Inch 20khz Guitar Bass Speaker
Price:
$20.00 - $60.00 / Piece
MOQ:
10 Piece/Pieces
Delivery Time:
Negotiable
Brand:
OEM
Product Description
10 inch Guitar Bass Speaker neodymium coaxial speaker with light weight 2kg 99dB
Product Description
- 10 inch coaxial loudspeaker with 55-20,000Hz response
- 150Wrms power handling and 99dB sensitivity
- 2 inch high temperature copper voice coil wound
- Steel frame neodymium magnet LF driver
- Compact, lightweight neodymium compression driver
- For portable speaker system, guitar speakers or other speakers system with limited weight
- More models for choice
| Specifications: | |
| Nominal diameter | 10 inch |
| Nominal impedance | 8 Ω |
| RMS Power rating | 150W |
| Max power handing | 300W |
| Sensitivity (1w/1m) | 99dB |
| Frequency range | 55hz-20KHz |
| LF Voice coil diameter | Φ50 mm |
|
Basket |
Steel |
| Cone and dust cap | Paper |
| Surround | Cloth |
| Voice coil wire | Copper |
| Voice coil former | Glassfiber |
| Magnet material | Neodymium |
| HF voice coil diameter | 35mm/1.3inch |
| Thiele-Small Parameters | |
| Fs | 48.8HZ |
| Re (D.C.) | 5.2Ω |
| Qms | 11.67 |
| Qes | 0.43 |
| Qts | 0.41 |
| Vas | 71.5L |
| Cms | 0.41 |
| Bl | 9.8 |
| Xmax | 6mm |
| Mounting Information | |
| Overall diameter | 257mm |
| Bolt Circle diameter | 247mm |
| Baffle Cutout diameter | 235mm |
| Total Depth | 130mm |
| Flange thickness | 5mm |
| Shipping Information | |
| Net weight | 2KG |
| Shipping weight | 2.4KG |
| Shipping box size/ 1 unit | 270x270x160mm |

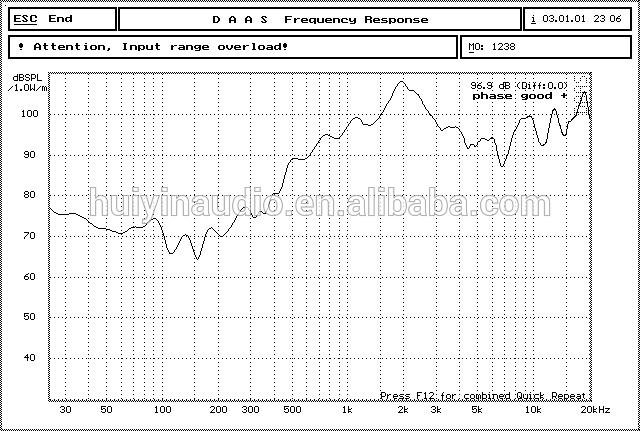

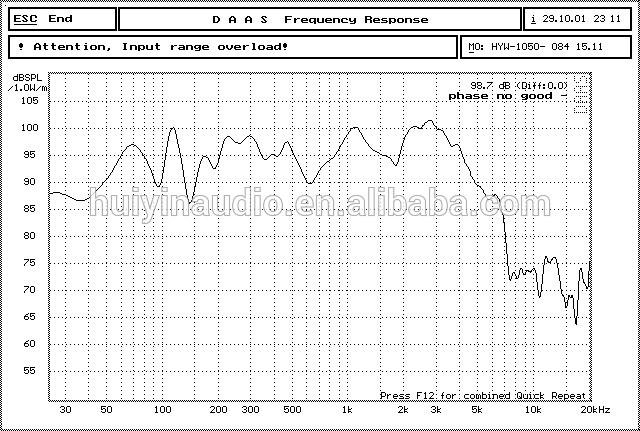

Frequency response curve
