Metal Shell Ferrite Magnet 8 Ohms 4.5KHz 15 Inch Pa Subwoofer

Price Negotiable
Price: $28.00 - $33.00 / Piece
MOQ: 2 Piece/Pieces
Delivery Time: Negotiable
Brand: HYYX
Product Description

15 inch pa woofer speakers midbass speaker 15 inch speaker

Product Description


Features :



-  15 inch woofer speaker with lower cost
-  900W continuous program power capacity, 450W RMS
-  98dB sensitivity 1w/1m
-  30hz-4.5khz Frequency response
-  3" Voice coil
-  Low cost but ideal for 2-way or 3-way speakers system

Specification


Nominal diameter
360/15
mm/inch
Nominal impedance
8
ohm
Min impedance LF
5.2
ohm
Min impedance HF
6
ohm
Frequency response
30-4.5k
Hz
Magnet size
190x20
mm
Magnet material
Ferrite

Sensitivity (1w/1m)
98
dB
Nominal power handling
450
Watts
Continuous power handling
900
Watts
Voice coil diameter
75/3 "
mm/ inch
Winding material
Copper

Cone material
Paper

Surround material
Cloth

T/S Parameter


Fs
34.1
Hz
Re
5.2
Ω
Qes
0.33

Qts
0.32

Qms
10.93

Vas
261.1
L
Rms
1.7
kg/s
Cms
0.25
mm/N
Mms
85.7
gr
BI
17.9
N/A
Rp
156.0
Ω
Lp
90.3
mH
Cp
484.1
uF
Le
0.9
mH
Xmax (one-way)
12
mm
Mounting information


Overall diameter
393/15.5
mm/inch
Bolt Circle diameter
375/14.77
mm/inch
Baffle Cutout diameter
355/13.98
mm/inch
Total Depth
160/6.3
mm/inch
Flange thickness
14/0.56
mm/inch
Shipping information


Net weight
7.14
KG
Shipping weight
8
KG
Shipping box
410x410x190
mm
Our Company



Company Profile

Since our establishment in 2009, we have been committed to manufacturing high-quality audio products, including professional audio speakers, car audio speakers, speakers with cabinets and power amplifiers. Since then, Huiyin Audio Co., Ltd. has had a complete high-quality supply chain, an excellent management team, and the ability to provide our customers with good service and high-quality products at a good price! Instead, the company introduced a series of advanced equipment such as automated production lines, high-efficiency magnetizers, impact testing machines, and temperature testing machines. To maximize, we obtained CE certification in 2012. The enterprise will be gradually developed in 2017.

We are willing to customize the speakers and amplifiers required by customers to suit their market. OEM and ODM orders are welcome.
Committed to strict quality control and thoughtful customer service, our experienced staff are always available to discuss your requirements and ensure complete customer satisfaction. When we cooperate with well-known Chinese brands, our products are also exported to customers in North America, South America, Europe, Asia, Africa and Africa and Oceania and other countries and regions. Whether it is selecting the current product from our catalog or seeking the help of an engineer to manufacture other ideal speaker models, please contact our customer service center or send an email to us. We want to establish a long-term business relationship with you.

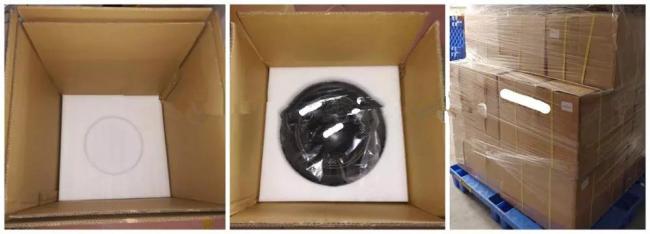

Packing & Delivery
