Monoflow high temperature steam rotary joint BSP1 ''
Monoflow high temperature steam rotary joint BSP1 ''
Steam rotary joints are widely used in many industries such as papermaking, packaging, chemicals, rubber, plastics, textiles, printing and dyeing, glass, starch, petroleum, medicine, washing, tobacco, drying, electricity, food and so on.
| Use parameters | |
| Pressure | 18 bar / 1.8 MPa |
| Temperature | 100 ℃ / 428 °F |
| Speed | 200 rpm |
| Media | Steam, Hot water, Hot oil |
| Size | 3/4'' ~ 5''; customized |
| Passages | Duoflow |
| Connection | Thread |
| Standard | BSPP/G, BSPT/Rc, NPT |
| Inner tube point | Fixed |
| Seal | Imported seal |
| Housing | Precision cast steel |
| Rotor | 45#steel |
| Product name | Steam rotary joint |

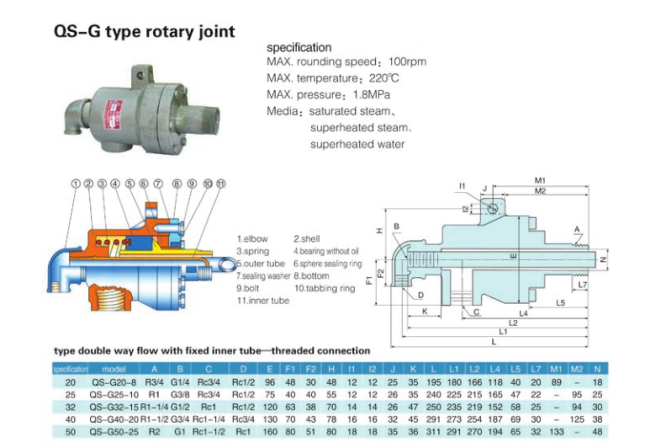

Structural features
This series of rotary joints is an improved type on the basis of the H type, adopts a balanced sealing structure, and has the advantages of small size, light weight, and low friction. The special sealing material enables a wider range of applications, convenient maintenance, and can ensure the use under various conditions.
Product selection material: cast iron, gray iron, ductile iron, 45# steel pipe ball
For paper industry
The rotary joint for papermaking adopts Q-surface sealing structure. Automatic centering, automatic compensation, suitable for equipment with low speed and poor coaxiality. Its structure is simple, the seal is reliable, and it does not need lubrication. It is a widely used rotary joint.

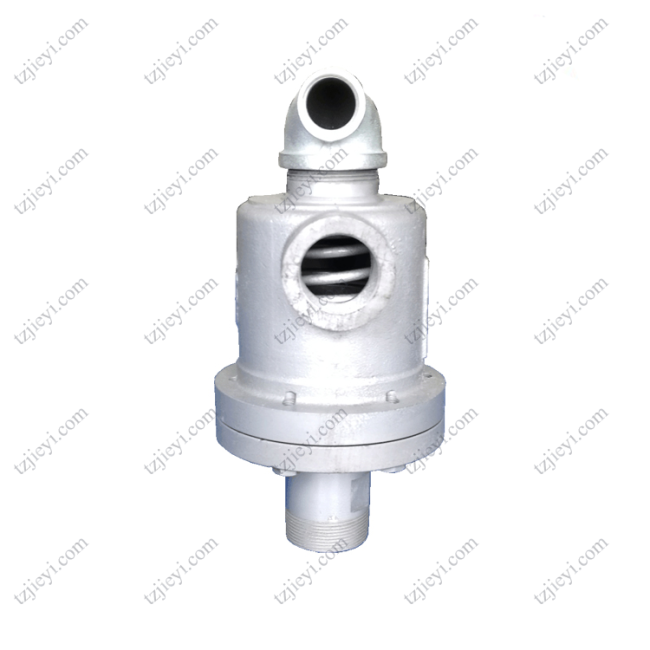

Product Show
Company Profile
Certificate
Delivery
Product packaging
Warehouse corner
Why choose us
1.Always Innovating
We have accumulated rich experirence in producing Rotary Joint,advanced equipment,advanced technology,professional staff.we keep on Innovating all the time.
2.Design Concept
Reasonable design, advanced structure,superior quality,long service life.
3.Reliable Quality
We are Alibaba Assessed Supplier,our products are certified by ISO9001,CE etc.
4.Short leading time
We have professional and advanced machines.we have 4 production line,can produce production quickly.
5.Good Price
We are crontroling each part cost so we can give customers the competitive price.
6.Internal Control
Internal inspection,all our products must be checked 3 times before packing.
7.Prompt Reply
We’ll reply your enquiry within 2 hours.
Contact us
If you have any needs, please feel free to contact us. We can produce according to your samples or drawings, we can also customize the design drawings for you according to your requirements, and then send them to you for confirmation!
