40inch Single Cartridge Filter Housing
Price:
$85.00
MOQ:
1-9 Pieces
Delivery Time:
5-8 working days
Brand:
LVYUAN/OEM
Product Description
High pressure clamp big blue10 20 30 40 inch single cartridge filter housing
Product Features:
- Inlet & outlet size is 1/2", 3/4". 1" for easy installation.
- Working pressure 8kg/0.8Mpa, 10kg/1Mpa is supported.
- Use the tap water pressure to provide power, no power consumption.
- Wall-mounted, counter-top, very simple installation.
- It is suitable for using in the water mater switch, for the pre filtration system and RO system protection.
- Resistance to strong acid and alkali.
- Low cost, it fits different kind of filter elements.
Features:
- Housing material 304 or 316L stainless steel, the housing body through inside and outside polishing, it meets the sanitary grade.
- Inside with the silicone gasket, it can be applied to cold & hot water temperature.
- High pressure resistance, corrosion resistance.
DOE 222+Fin

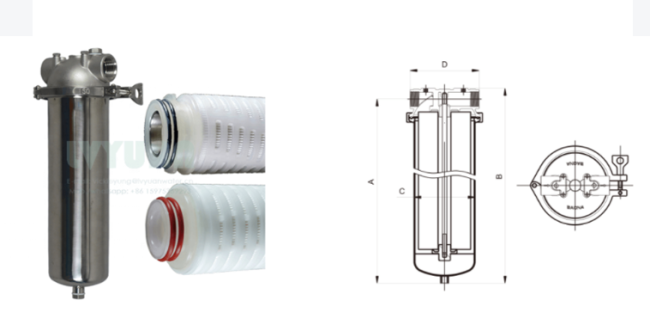

| NO. | A(mm) | B(mm) | C(mm) | In/Out | ||
|---|---|---|---|---|---|---|
| LY-FL-SC-L1 | 275 | 355 | φ89 | 3/4'' 1'' | ||
| LY-FL-SC-L2 | 525 | 605 | φ89 | 3/4'' 1'' | ||
| LY-FL-SC-L3 | 775 | 855 | φ89 | 1'' | ||
| LY-FL-SC-L4 | 1025 | 1105 | φ89 | 1'' | ||
