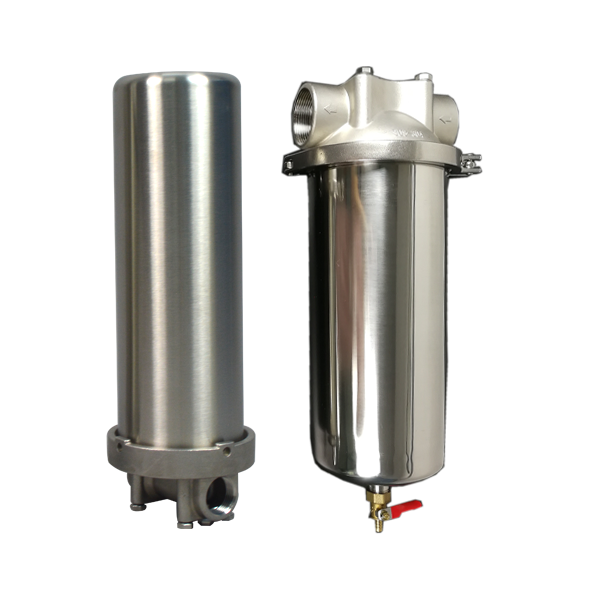

10″x4.5″ Water Cartridge Filter Housing
Product Features:
- Larger filters can be used which have a bigger capacity and longer service life compared to standard size smaller filter housings.
- Complete 10″ x 4.5″ Housing 1″ Bsp ports with mounting bracket & screws and a housing sump removal tool.
- Flow rate up to 80Lpm depending on filter used and water pressure & flow.

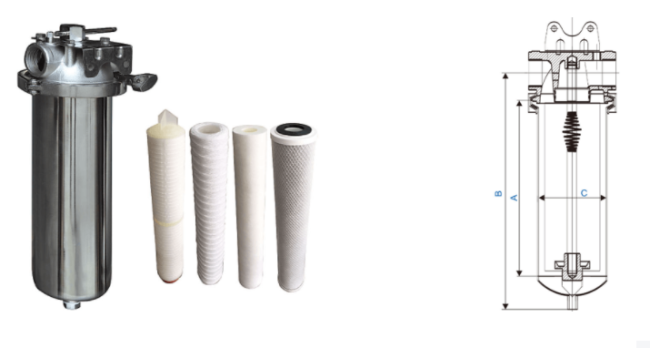

- Dimensions are 395mm high including the bracket x 145mm wide
- Recommended filter size 250mm long and up to 117mm across. The 1045SW5 string wound 5 micron filters are often used with these housings for filtering hot and cold water, as the string wound have a high temp and large dirt holding capacity.
- Suitable for temperatures up to 99°C
- deal for where a high flow rate is required eg. house, rural or commercial applications.
Material: 304 stainless steel
Withstand voltage: less than 0.7MPA
Interface: 1 inch, 1.5", or other interface
Purpose: It is equipped with different precision PP melt blown filter elements, folded filter elements, wire wound filter elements, etc. to achieve different filtering effects. (Resistant to weak acid and weak alkali)
Application
1. Widely used in UF, RO, EDI security filtration and the end-filtration.
2. Chinese herbal medicine, such as liquid filtration, biological agents extraction, purification and concentration.
3. Electonics, semiconductor industry with high purity water preliminary filter, teminal filter.
4. Oil field, chemical reagent, liquid organic products, high purity chemicals, strong medicine and other filtration.
5. Drinking pure water, mineral water, fruit juice, tea, beverages, health drinks.
6. Liquid, wine, beer, yellow wine and ther friut wine filtration, pure draft beer aseptic filtration.
7. The life and procution waste water treatment and water recycling process of pre-treatment filtering or security filtering.
8. Biological engineering, oil refining, printing and dyeing, testile industry water supply and waste water treatment, research and test filter, etc.
BOTTLED WATER
BEVERAGE & DRINKS
RO WATER TREATMENT
CHEMICAL INDUSTRY
