Sanitary M6 Thread 0.3um 20 Inch Water Filter Cartridges
Sterile Sanitary Stainless Steel Single Cartridge Filter Housing ss304 ss316 for Water Treatment
Feature
• Ultra high level of polishing, use 0.3um, the outer wall is 0.4um, absolute health level and polishing.
• Using strong fast loading, the highest pressure of 0.6 Mpa, 1.0 Mpa.
• Low exhaust valve and drain valve: threaded joint sets and pagoda from, when deflated and drainage, with the connect lose won't turn.
• Low filter supporting feet by strengthening thread, not easy sliding teeth, more durable; Can be installed adjusting nut at the bottom of the feet, can adjust the height of the filter, easy to use.
| Operating Conditions | |
| Max. operating pressure | 0.6MPa 1.0MPa |
| Max. operating temperture | 150℃ |
| Disinfect | Online or steam sterilization: 121℃/30min |
| Material | |
| Shell | 304, 316L |
| Eyebolt | 304 |
| Stabilizer blade | 304 |
| O-ring | EPDM, PTFE Viton, Silicone |
| Connection | |
| Connection of shell | Tri-clamp |
| N1, N2 In- outlet | Tri-clamp |
| N3 Pressure gauge(option) | |
| 1.5″Tri-clamp | |
| N4vent valve(option) | M6 Thread |
| N5 Drain valve (option) | M6 Thread |
| Cartridges connection | 222 type, 226 type |
| Surface Finish | |
| Finish type | Mechanical / electrolytic polishing, sand blasting |
| Polishing precision | 0.3um Inner surface Ra≤0.3um |
| 0.4um Outside surface Ra≤0.4um | |
GENERAL DESCRIPTION

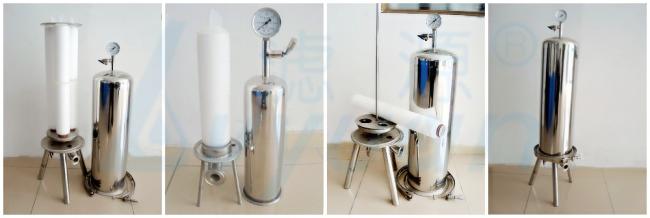

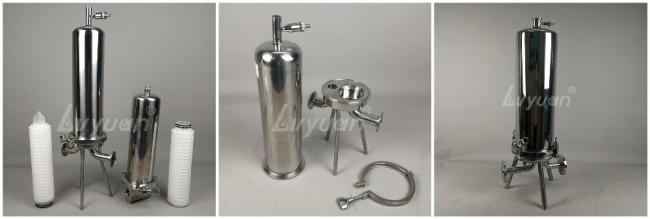

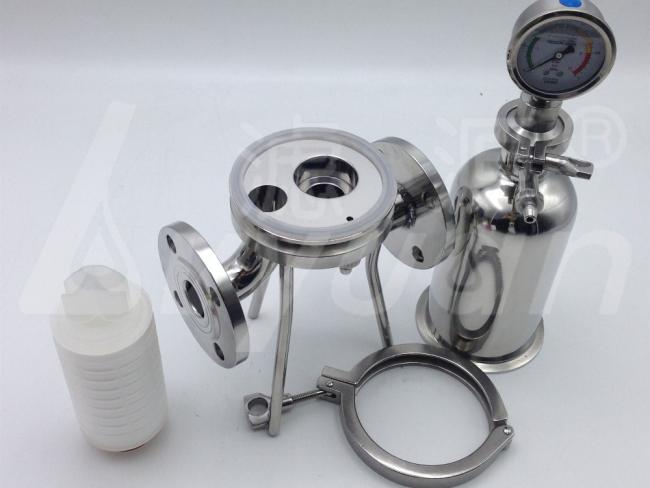

It consists of a stainless steel housing and filter elements. The filter housing is made of high-quality stainless steel. It is quick-opening, and clamp type replacement filter doesn't require tools. It is convenient and quick.
The filter element adopts different materials such as pleated filter cartridge as the replacement cartridges to remove tiny suspended, bacteria and other impurities in the water; the filter medium enters the housing body from the outside, is filtered through the filter element, and the liquid is discharged from the bottom, and the filter residue is blown back or compressed by compressed air. The liquid is mixed and blown back.
Different stainless steel multi-cartridges filter housing are customized, as long as you offer us picture and drawing.
Any request will be respond within 20 hours.
It can filter out liquids and gases above 0.1um particles and bacteria, it has high filtration precision, fast transition speed, less adsorption, no The advantages of medium separation, acid and alkali corrosion resistance, and convenient operation.
