150psi 100 Microrn 20'' 30'' Industrial Cartridge Filter Housings
Industrial ss 304 316 316L Stainless Steel Cartridge Filter Housing with 10'' 20'' 30'' 40'' Length

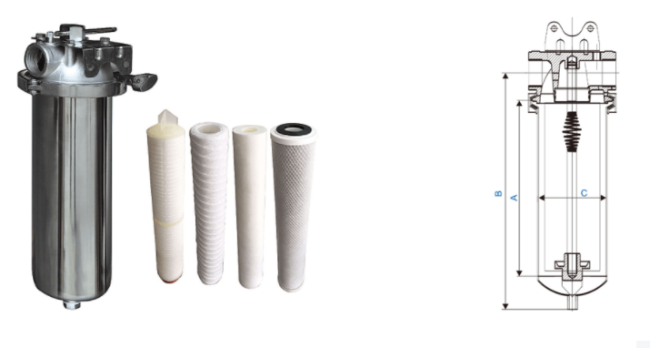

The stainless steel filter is a small equipment that removes a small amount of solid particles in the liquid, which can protect the normal operation of the equipment. When the fluid enters the filter cartridge with a certain filter screen, its impurities are blocked, and the clean filtrate is discharged from the filter outlet When cleaning is needed, just take out the detachable filter cartridge and reinstall it after treatment. Therefore, it is extremely convenient to use and maintain
|
Material |
SUS304/SUS316/SUS316L |
Cartridge |
3~160pcs cartridges(Customized) |
|
Size |
10” 20” 30” 40” |
Sealing O-ring |
Silastic, NBR, EPDM, Viton |
|
Precision |
1~100microrn |
Surface treatment |
Polished or sandblast |
|
Interface |
Flat, 222, 226 |
Working temperature |
20~120°C |
|
Connector method |
(inlet and outlet): quick opening, screw thread, flange |
Max.Working pressure |
0.75~1Mpa |
1. Can be widely used in UF, RO, EDI security filtration and end filtration, medicine injection, large infusion, eye drops,.
2. Chinese herbal medicine, such as liquid filtration, biological agents extraction, purification and concentration.
3. Electronics, semiconductor industry with high purity water preliminary filter, terminal filter.
4. Oil field back to water injection, boiler makeup water, chemical reagent, liquid organic products, high purity chemicals, strong medicine and ot her filtration.
5. Drinking pure water, mineral water, fruit juice, tea beverages, health drinks filtering.
6. Liquor, wine, beer, yellow wine and other fruit wine filtration, pure draft beer aseptic filtration (alternative pasteurized)
7. The life and production wastewater treatment and water recycling process of pretreatment filtering or security filtering.
8. Biological engineering, oil refining, printing and dyeing, textile industry water supply and wastewater treatment, research and test filter, etc.
,
