0.7m2 10 Micron OD 100mm Pleated Filter Cartridge For Pre Filtration

Price Negotiable
Price: $3.03 - $12.12 / Piece
MOQ: 10 Piece/Pieces
Delivery Time: Negotiable
Brand: Lvyuan, OEM, ODM
Product Description
10 micron 100 mm diameter pleated filter cartridge 10 20 30 40 inch for pre filtration


 Lvyuan pp pleated filter cartridge specification:



Filter media /support/core /end cap material
PP(polypropylene)
Seal material
Silicone, EPDM, NBR, VITON, TEFLON, etc
Code
DOE, 215 flat, 22flat, 222fin, 226flat, 226fin,or customized
Pore size
0.1, 0.2, 0.45, 0.65, 0.8, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60 um
Outer diameter
69mm, or customized
Length
9.15'', 10'', 20'', 30'', 40'', or customized
Effective filtration area
0.4-0.7㎡
Max. operating temperature
88℃, 0.28Mpa /60℃, 0.42Mpa

General Description

pp pleated filter cartridge deliver high effciency and consistent filtration of fluids in the food and beverage industry. They are constructed of pleated membrane filter media that provides removal of partical from 0.1 to 60 micron, the pore size is not affected by the vibration of feeding pressure, due to its uique low differential pressure, high flow volume, excellent filtration microns.



Features:

1. Excellent chemical compatibility, suitable for filtering organic solvent, acid bases.

2. Large flow volume, low diffential pressure and long service life.

3. Pleated design increased the filtration area for deep filtration .

4. Pleated media with high dirt holding capacity

5. Full range of removal microns ratings.

6. Multiple adaptor options, Easy installation into sanitary housings.



Accept customized code and length,  as you can provide the specification, we will arrange to produce.

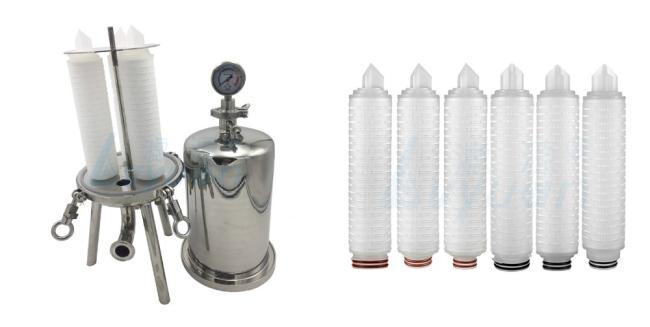

More pic show :








Application


1. Filtration for electronic, mico-electronic and semiconductor water.

2. High pure chemical filtration

3. Medical liquid filtration

4. Food & beverage filtration



Our Certifications


Our products are according the international standards, it has good quilty and good price.we have 5 filter media all have SGS certificates.




About us


1. 10 years professional manufacturer experience.

2. We provide OEM and ODM customization service, you can find all kinds of industrial water filter parts.

3. All products have quality warranty. Our Certification: CE ISO SGS

4. Our workers are efficient and our sales are professional, we will give the professional customized service.

5. Our products are exporting to more than 100 countries and regions.Received a good reputation.

6. Many cooperator stand by us for many years.

7. We are determined to provide the best service and good quality to our global customers, we will be more and more professional company in the future.
